HIGH BRIGHTNESS LCD MODULES / SERIES
Compare 10 listed 32-inch FHD configurations with ELED or DLED backlights. Check each model's brightness, operating temperature and outline; a common diagonal does not mean the same fit.

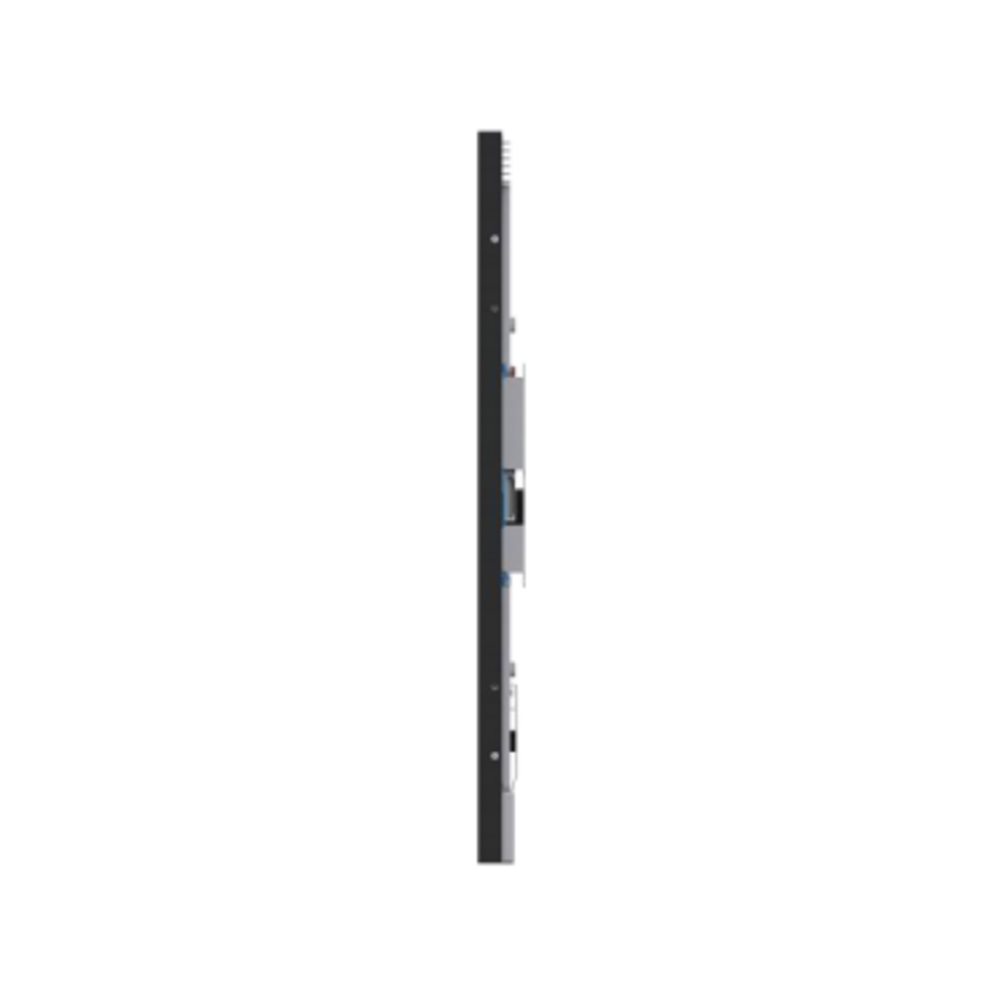

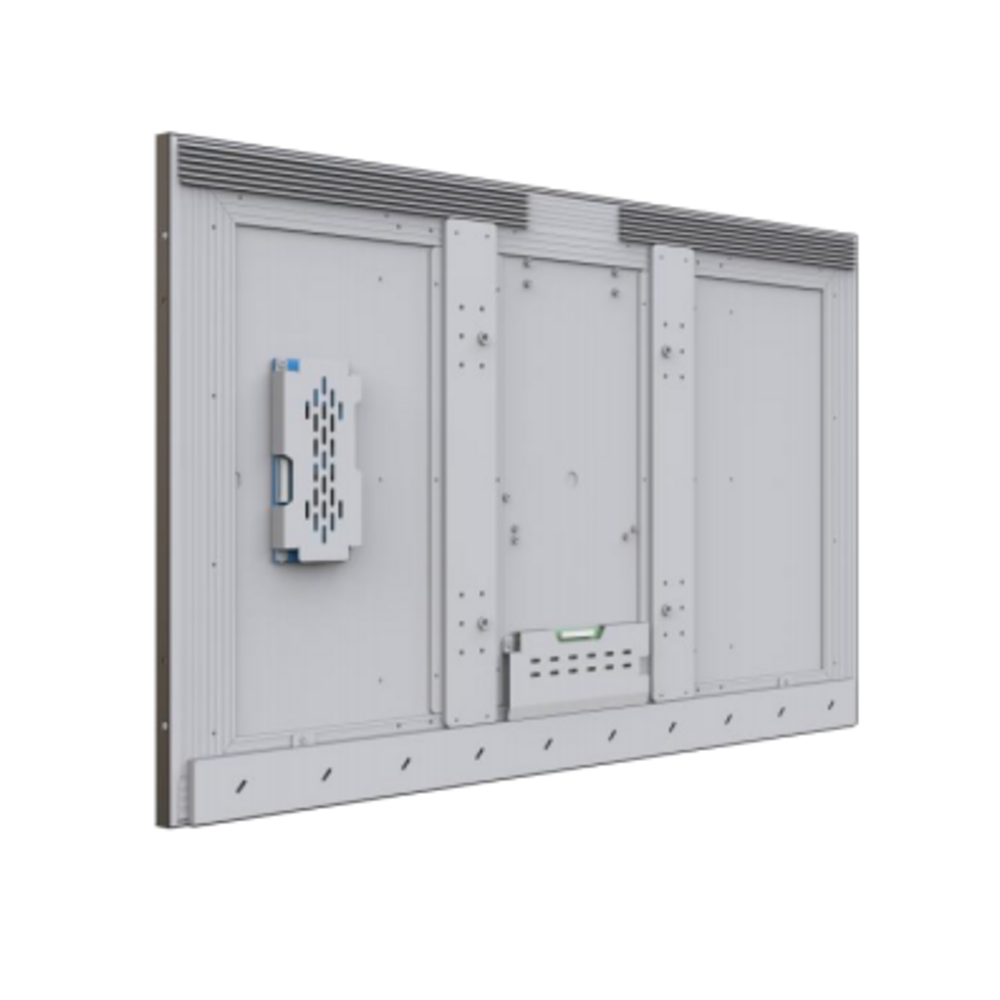

Selected Model YZ320MJH20H-V0
Brightness: typical ±5%. Values above apply to the selected variant, not the entire series.

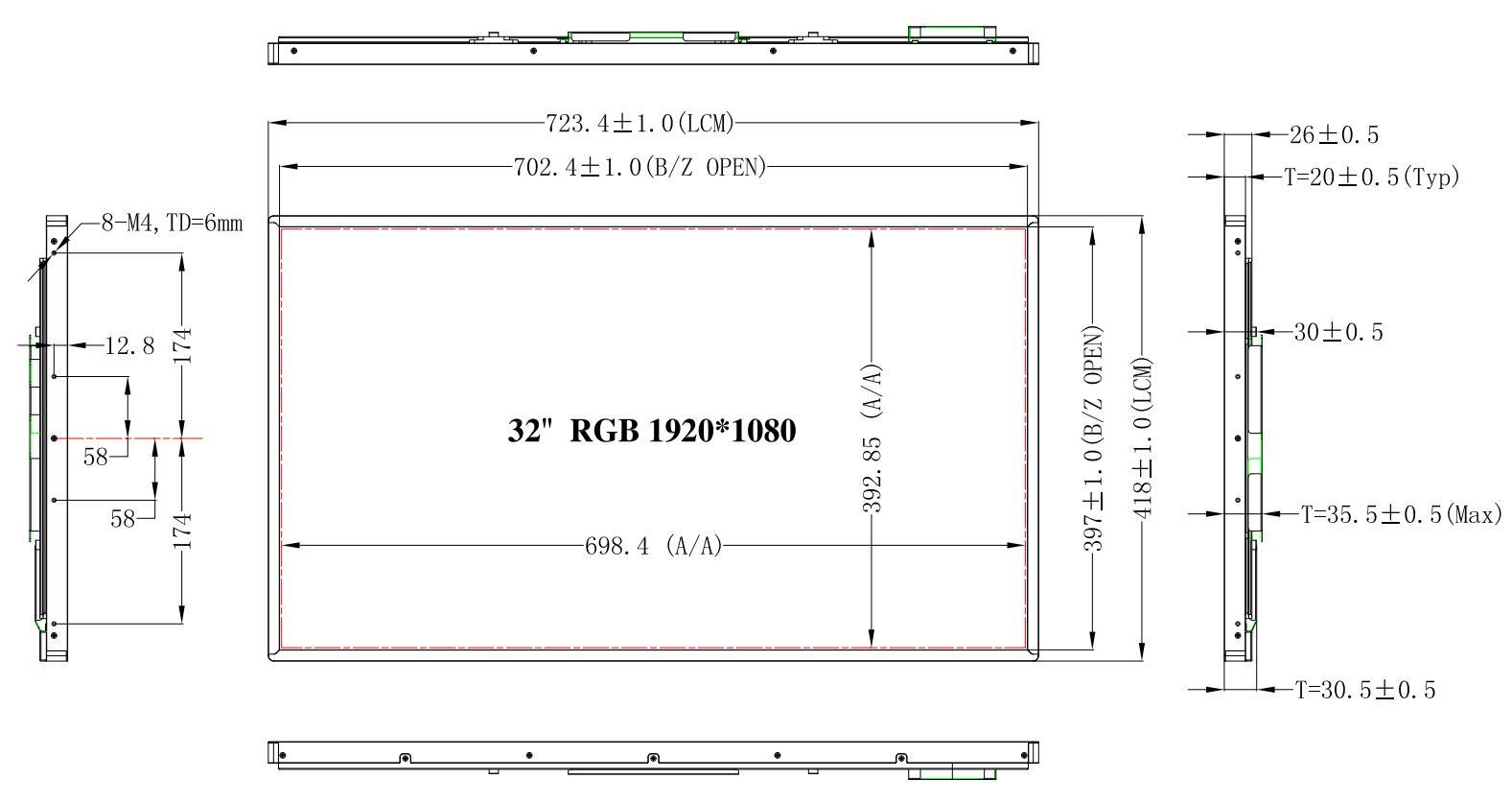

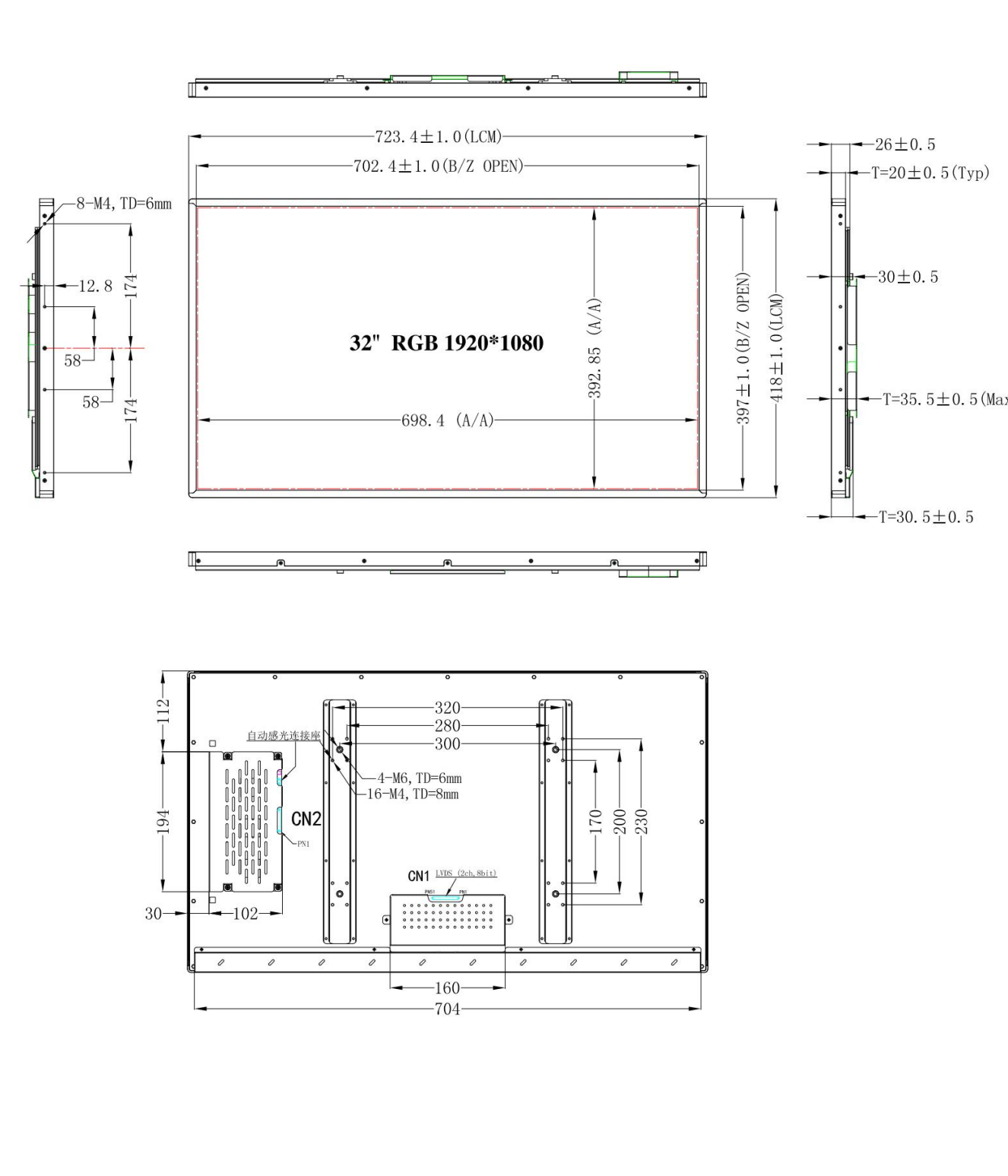

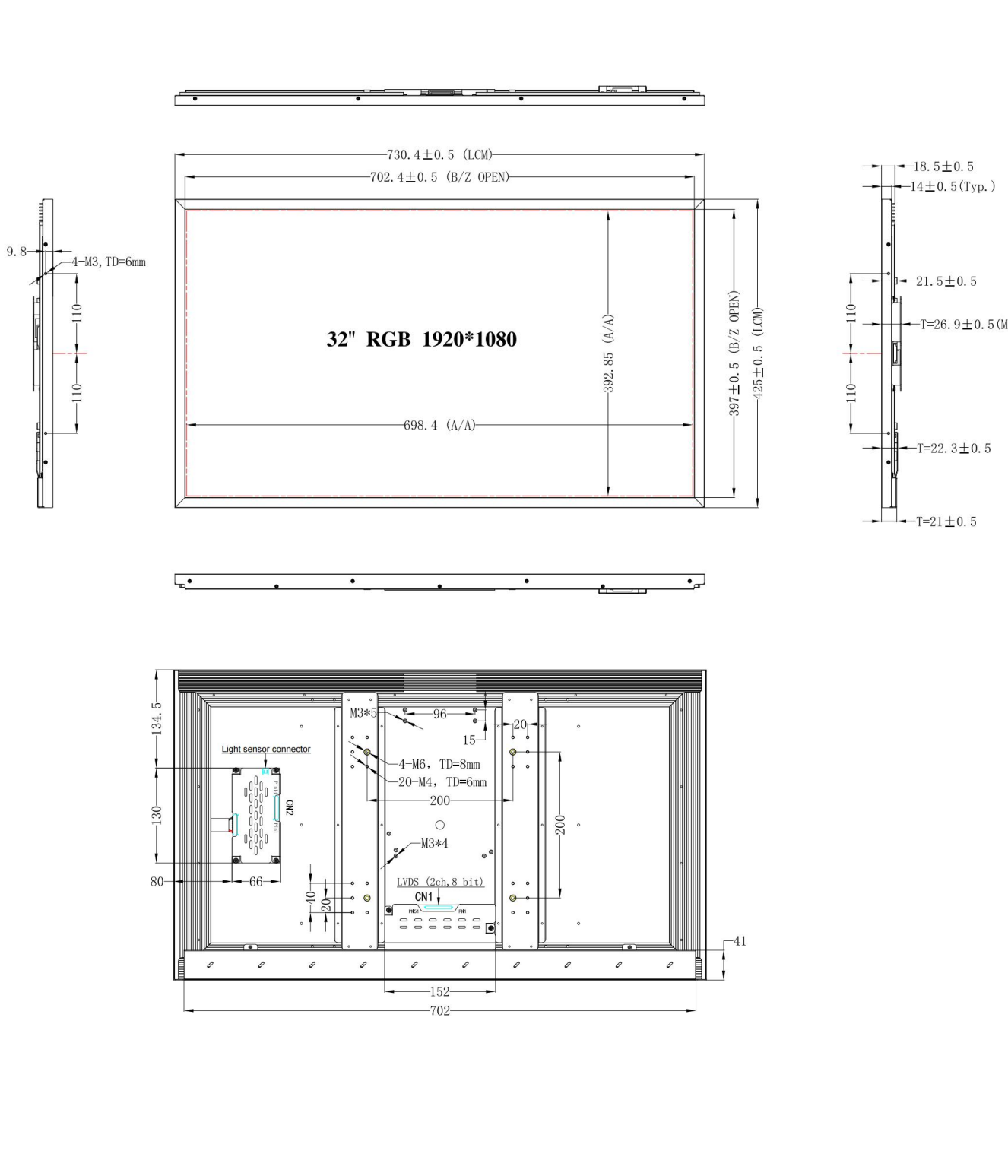

1920 × 1080 / LVDS. Model-specific drawing and pin definition available below.
CHOOSE YOUR CONFIGURATION
10 documented configurations available.
Click a model to update the engineering view.
10 of 10 configurations
| YuanZhong Model | Brightness | Backlight | Resolution | Panel Interface | Dimensions | Datasheet |
|---|---|---|---|---|---|---|
| 1,000 nits | ELED | 1920 × 1080 | LVDS | 730.40 × 425.00 × 26.90 mm | EN PDF ↗ | |
| 1,000 nits | ELED | 1920 × 1080 | LVDS | 730.40 × 425.00 × 26.90 mm | EN PDF ↗ | |
| 1,500 nits | ELED | 1920 × 1080 | LVDS | 730.40 × 425.00 × 26.90 mm | EN PDF ↗ | |
| 1,500 nits | ELED | 1920 × 1080 | LVDS | 730.40 × 425.00 × 26.90 mm | EN PDF ↗ | |
| 2,000 nits | DLED | 1920 × 1080 | LVDS | 723.40 × 418.00 × 35.50 mm | EN PDF ↗ | |
| 2,000 nits | DLED | 1920 × 1080 | LVDS | 723.40 × 418.00 × 35.50 mm | EN PDF ↗ | |
| 2,500 nits | DLED | 1920 × 1080 | LVDS | 723.40 × 418.00 × 35.50 mm | EN PDF ↗ | |
| 2,500 nits | DLED | 1920 × 1080 | LVDS | 723.40 × 418.00 × 35.50 mm | EN PDF ↗ | |
| 3,000 nits | DLED | 1920 × 1080 | LVDS | 723.40 × 418.00 × 35.50 mm | EN PDF ↗ | |
| 3,000 nits | DLED | 1920 × 1080 | LVDS | 723.40 × 418.00 × 35.50 mm | EN PDF ↗ | |
| No configurations match these filters. | ||||||
Configuration availability and mechanical requirements depend on the selected model.
BEST FOR / HOW TO CHOOSE
For 32-inch signage or equipment integration, compare the ELED and DLED outlines with the planned enclosure; their dimensions are not identical. Check viewing conditions and airflow for the chosen model.
Discuss your application →Select from documented levels. Module brightness alone does not define finished outdoor performance.
All listed 32-inch configurations are FHD with LVDS. Verify the selected model's pin definition, panel timing and controller requirements before choosing the control electronics.
Check outline, airflow and ambient temperature. Modules are not rated weatherproof finished displays.
MODEL-SPECIFIC DATA
Selected YZ320MJH20H-V0
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 32 inch | PDF p2 |
| Brightness | 1,000 nits | Typical ±5%; PDF p3 |
| Backlight Type | ELED | PDF p3 |
| Resolution | 1920 × 1080 | PDF p2 / p3 / drawing p4 |

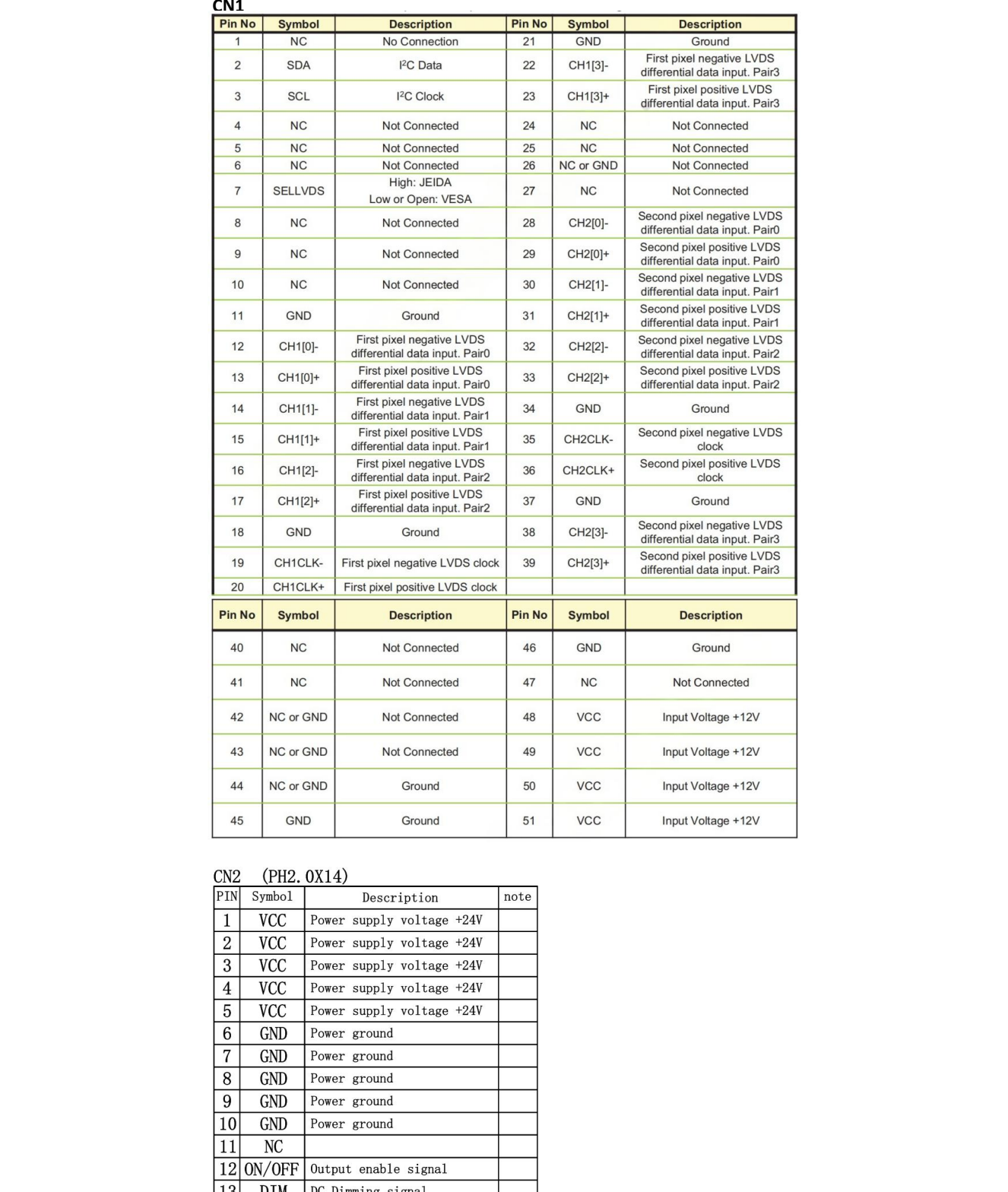

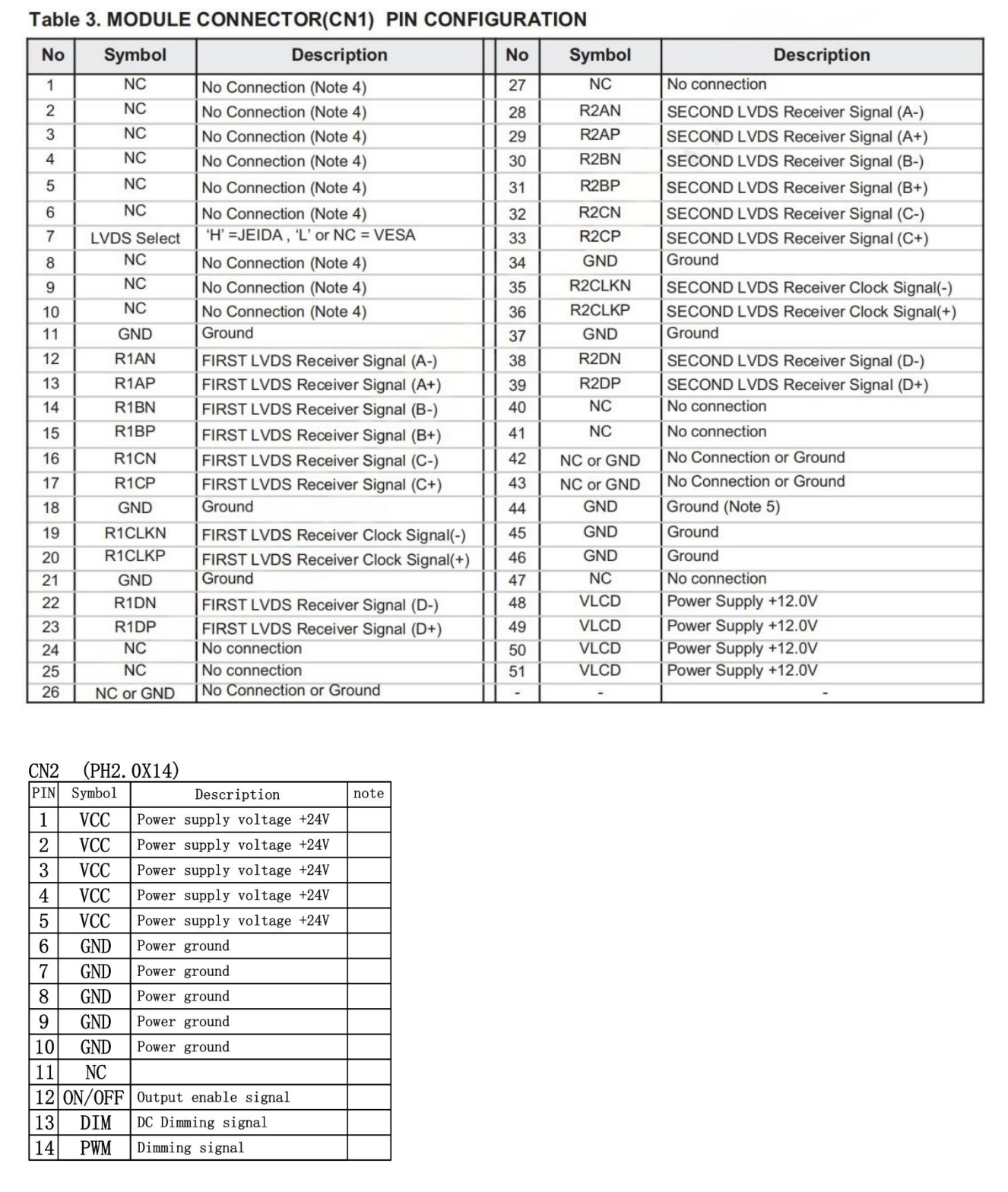

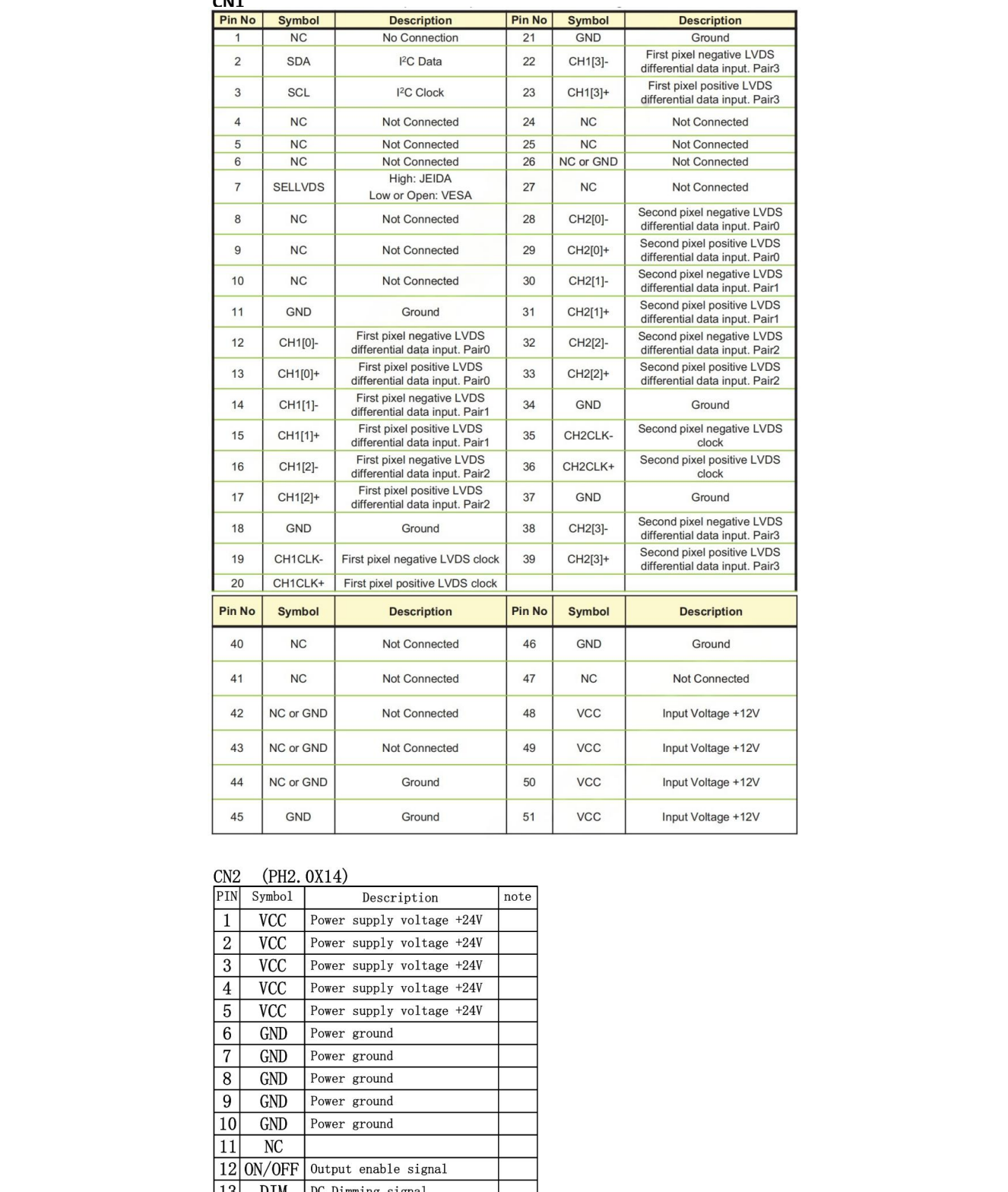

| Panel Interface | LVDS | Model-specific PDF p5; confirm unresolved interface before integration |
| Overall Dimensions | 730.40 × 425.00 × 26.90 mm | H × V × D; typical; PDF p3 |
| Active Area | 698.40 × 392.85 mm | H × V; PDF p3 |
| Display Colors | 8-bit(D)& 16.7 Million | PDF p3 |
| Response Time | 15ms (G to G) (Typ.) | Typical; PDF p3 |
| Contrast / Color Gamut | 1,200 : 1(Typ.) & 72% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 25% -100% | PDF p3 |
| Operating Power | 59W (Typ.) ±5% | Typical; PDF p3 |
| Weight | 5.8kg ±0.2 | PDF p3 |
| Operating Temperature | -20°C~70°C | Module specification; PDF p3 |
| Storage Temperature | -20°C~70°C | PDF p3 |
| Panel Platform | DV320FHB-R00 & 105°C (Hi-Tni) | PDF p3; panel surface temperature is not module operating temperature |
| AD Board | Not equipped | PDF p2; not a finished HDMI / DP monitor |
| IP Rating | None / None | PDF p3; system enclosure requires engineering review |
| Warranty | 24 months | User-approved warranty |
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 32 inch | PDF p2 |
| Brightness | 1,000 nits | Typical ±5%; PDF p3 |
| Backlight Type | ELED | PDF p3 |
| Resolution | 1920 × 1080 | PDF p2 / p3 / drawing p4 |
| Panel Interface | LVDS | Model-specific PDF p5; confirm unresolved interface before integration |
| Overall Dimensions | 730.40 × 425.00 × 26.90 mm | H × V × D; typical; PDF p3 |
| Active Area | 698.40 × 392.85 mm | H × V; PDF p3 |
| Display Colors | 8-bit(D)& 16.7 Million | PDF p3 |
| Response Time | 9ms (G to G) (Typ.) | Typical; PDF p3 |
| Contrast / Color Gamut | 1,300 : 1(Typ.) & 65% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 25% -100% | PDF p3 |
| Operating Power | 53W (Typ.) ±5% | Typical; PDF p3 |
| Weight | 5.8kg ±0.2 | PDF p3 |
| Operating Temperature | 0°C~50°C | Module specification; PDF p3 |
| Storage Temperature | -20°C~60°C | PDF p3 |
| Panel Platform | LD320EUY-SQA3 & 68°C (Surface) | PDF p3; panel surface temperature is not module operating temperature |
| AD Board | Not equipped | PDF p2; not a finished HDMI / DP monitor |
| IP Rating | None / None | PDF p3; system enclosure requires engineering review |
| Warranty | 24 months | User-approved warranty |
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 32 inch | PDF p2 |
| Brightness | 1,500 nits | Typical ±5%; PDF p3 |
| Backlight Type | ELED | PDF p3 |
| Resolution | 1920 × 1080 | PDF p2 / p3 / drawing p4 |
| Panel Interface | LVDS | Model-specific PDF p5; confirm unresolved interface before integration |
| Overall Dimensions | 730.40 × 425.00 × 26.90 mm | H × V × D; typical; PDF p3 |
| Active Area | 698.40 × 392.85 mm | H × V; PDF p3 |
| Display Colors | 8-bit(D)& 16.7 Million | PDF p3 |
| Response Time | 15ms (G to G) (Typ.) | Typical; PDF p3 |
| Contrast / Color Gamut | 1,200 : 1(Typ.) & 72% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 25% -100% | PDF p3 |
| Operating Power | 84W (Typ.) ±5% | Typical; PDF p3 |
| Weight | 5.8kg ±0.2 | PDF p3 |
| Operating Temperature | -20°C~70°C | Module specification; PDF p3 |
| Storage Temperature | -20°C~70°C | PDF p3 |
| Panel Platform | DV320FHB-R00 & 105°C (Hi-Tni) | PDF p3; panel surface temperature is not module operating temperature |
| AD Board | Not equipped | PDF p2; not a finished HDMI / DP monitor |
| IP Rating | None / None | PDF p3; system enclosure requires engineering review |
| Warranty | 24 months | User-approved warranty |
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 32 inch | PDF p2 |
| Brightness | 1,500 nits | Typical ±5%; PDF p3 |
| Backlight Type | ELED | PDF p3 |
| Resolution | 1920 × 1080 | PDF p2 / p3 / drawing p4 |
| Panel Interface | LVDS | Model-specific PDF p5; confirm unresolved interface before integration |
| Overall Dimensions | 730.40 × 425.00 × 26.90 mm | H × V × D; typical; PDF p3 |
| Active Area | 698.40 × 392.85 mm | H × V; PDF p3 |
| Display Colors | 8-bit(D)& 16.7 Million | PDF p3 |
| Response Time | 9ms (G to G) (Typ.) | Typical; PDF p3 |
| Contrast / Color Gamut | 1,300 : 1(Typ.) & 65% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 25% -100% | PDF p3 |
| Operating Power | 78W (Typ.) ±5% | Typical; PDF p3 |
| Weight | 5.8kg ±0.2 | PDF p3 |
| Operating Temperature | 0°C~50°C | Module specification; PDF p3 |
| Storage Temperature | -20°C~60°C | PDF p3 |
| Panel Platform | LD320EUY-SQA3 & 68°C (Surface) | PDF p3; panel surface temperature is not module operating temperature |
| AD Board | Not equipped | PDF p2; not a finished HDMI / DP monitor |
| IP Rating | None / None | PDF p3; system enclosure requires engineering review |
| Warranty | 24 months | User-approved warranty |
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 32 inch | PDF p2 |
| Brightness | 2,000 nits | Typical ±5%; PDF p3 |
| Backlight Type | DLED | PDF p3 |
| Resolution | 1920 × 1080 | PDF p2 / p3 / drawing p4 |
| Panel Interface | LVDS | Model-specific PDF p5; confirm unresolved interface before integration |
| Overall Dimensions | 723.40 × 418.00 × 35.50 mm | H × V × D; typical; PDF p3 |
| Active Area | 698.40 × 392.85 mm | H × V; PDF p3 |
| Display Colors | 8-bit(D)& 16.7 Million | PDF p3 |
| Response Time | 15ms (G to G) (Typ.) | Typical; PDF p3 |
| Contrast / Color Gamut | 1,200 : 1(Typ.) & 72% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 25% -100% | PDF p3 |
| Operating Power | 124W (Typ.)±5% | Typical; PDF p3 |
| Weight | 5.5kg ±0.2 | PDF p3 |
| Operating Temperature | -20°C~70°C | Module specification; PDF p3 |
| Storage Temperature | -20°C~70°C | PDF p3 |
| Panel Platform | DV320FHB-R00 & 105°C (Hi-Tni) | PDF p3; panel surface temperature is not module operating temperature |
| AD Board | Not equipped | PDF p2; not a finished HDMI / DP monitor |
| IP Rating | None / None | PDF p3; system enclosure requires engineering review |
| Warranty | 24 months | User-approved warranty |
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 32 inch | PDF p2 |
| Brightness | 2,000 nits | Typical ±5%; PDF p3 |
| Backlight Type | DLED | PDF p3 |
| Resolution | 1920 × 1080 | PDF p2 / p3 / drawing p4 |
| Panel Interface | LVDS | Model-specific PDF p5; confirm unresolved interface before integration |
| Overall Dimensions | 723.40 × 418.00 × 35.50 mm | H × V × D; typical; PDF p3 |
| Active Area | 698.40 × 392.85 mm | H × V; PDF p3 |
| Display Colors | 8-bit(D)& 16.7 Million | PDF p3 |
| Response Time | 9ms (G to G) (Typ.) | Typical; PDF p3 |
| Contrast / Color Gamut | 1,300 : 1(Typ.) & 65% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 25% -100% | PDF p3 |
| Operating Power | 108W (Typ.)±5% | Typical; PDF p3 |
| Weight | 5.5kg ±0.2 | PDF p3 |
| Operating Temperature | 0°C~50°C | Module specification; PDF p3 |
| Storage Temperature | -20°C~60°C | PDF p3 |
| Panel Platform | LD320EUY-SQA3 & 68°C (Surface) | PDF p3; panel surface temperature is not module operating temperature |
| AD Board | Not equipped | PDF p2; not a finished HDMI / DP monitor |
| IP Rating | None / None | PDF p3; system enclosure requires engineering review |
| Warranty | 24 months | User-approved warranty |
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 32 inch | PDF p2 |
| Brightness | 2,500 nits | Typical ±5%; PDF p3 |
| Backlight Type | DLED | PDF p3 |
| Resolution | 1920 × 1080 | PDF p2 / p3 / drawing p4 |
| Panel Interface | LVDS | Model-specific PDF p5; confirm unresolved interface before integration |
| Overall Dimensions | 723.40 × 418.00 × 35.50 mm | H × V × D; typical; PDF p3 |
| Active Area | 698.40 × 392.85 mm | H × V; PDF p3 |
| Display Colors | 8-bit(D)& 16.7 Million | PDF p3 |
| Response Time | 15ms (G to G) (Typ.) | Typical; PDF p3 |
| Contrast / Color Gamut | 1,200 : 1(Typ.) & 72% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 25% -100% | PDF p3 |
| Operating Power | 147W (Typ.)±5% | Typical; PDF p3 |
| Weight | 5.5kg ±0.2 | PDF p3 |
| Operating Temperature | -20°C~70°C | Module specification; PDF p3 |
| Storage Temperature | -20°C~70°C | PDF p3 |
| Panel Platform | DV320FHB-R00 & 105°C (Hi-Tni) | PDF p3; panel surface temperature is not module operating temperature |
| AD Board | Not equipped | PDF p2; not a finished HDMI / DP monitor |
| IP Rating | None / None | PDF p3; system enclosure requires engineering review |
| Warranty | 24 months | User-approved warranty |
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 32 inch | PDF p2 |
| Brightness | 2,500 nits | Typical ±5%; PDF p3 |
| Backlight Type | DLED | PDF p3 |
| Resolution | 1920 × 1080 | PDF p2 / p3 / drawing p4 |
| Panel Interface | LVDS | Model-specific PDF p5; confirm unresolved interface before integration |
| Overall Dimensions | 723.40 × 418.00 × 35.50 mm | H × V × D; typical; PDF p3 |
| Active Area | 698.40 × 392.85 mm | H × V; PDF p3 |
| Display Colors | 8-bit(D)& 16.7 Million | PDF p3 |
| Response Time | 9ms (G to G) (Typ.) | Typical; PDF p3 |
| Contrast / Color Gamut | 1,300 : 1(Typ.) & 65% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 25% -100% | PDF p3 |
| Operating Power | 131W (Typ.)±5% | Typical; PDF p3 |
| Weight | 5.5kg ±0.2 | PDF p3 |
| Operating Temperature | 0°C~50°C | Module specification; PDF p3 |
| Storage Temperature | -20°C~60°C | PDF p3 |
| Panel Platform | LD320EUY-SQA3 & 68°C (Surface) | PDF p3; panel surface temperature is not module operating temperature |
| AD Board | Not equipped | PDF p2; not a finished HDMI / DP monitor |
| IP Rating | None / None | PDF p3; system enclosure requires engineering review |
| Warranty | 24 months | User-approved warranty |
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 32 inch | PDF p2 |
| Brightness | 3,000 nits | Typical ±5%; PDF p3 |
| Backlight Type | DLED | PDF p3 |
| Resolution | 1920 × 1080 | PDF p2 / p3 / drawing p4 |
| Panel Interface | LVDS | Model-specific PDF p5; confirm unresolved interface before integration |
| Overall Dimensions | 723.40 × 418.00 × 35.50 mm | H × V × D; typical; PDF p3 |
| Active Area | 698.40 × 392.85 mm | H × V; PDF p3 |
| Display Colors | 8-bit(D)& 16.7 Million | PDF p3 |
| Response Time | 15ms (G to G) (Typ.) | Typical; PDF p3 |
| Contrast / Color Gamut | 1,200 : 1(Typ.) & 72% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 25% -100% | PDF p3 |
| Operating Power | 172W (Typ.)±5% | Typical; PDF p3 |
| Weight | 5.5kg ±0.2 | PDF p3 |
| Operating Temperature | -20°C~70°C | Module specification; PDF p3 |
| Storage Temperature | -20°C~70°C | PDF p3 |
| Panel Platform | DV320FHB-R00 & 105°C (Hi-Tni) | PDF p3; panel surface temperature is not module operating temperature |
| AD Board | Not equipped | PDF p2; not a finished HDMI / DP monitor |
| IP Rating | None / None | PDF p3; system enclosure requires engineering review |
| Warranty | 24 months | User-approved warranty |
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 32 inch | PDF p2 |
| Brightness | 3,000 nits | Typical ±5%; PDF p3 |
| Backlight Type | DLED | PDF p3 |
| Resolution | 1920 × 1080 | PDF p2 / p3 / drawing p4 |
| Panel Interface | LVDS | Model-specific PDF p5; confirm unresolved interface before integration |
| Overall Dimensions | 723.40 × 418.00 × 35.50 mm | H × V × D; typical; PDF p3 |
| Active Area | 698.40 × 392.85 mm | H × V; PDF p3 |
| Display Colors | 8-bit(D)& 16.7 Million | PDF p3 |
| Response Time | 9ms (G to G) (Typ.) | Typical; PDF p3 |
| Contrast / Color Gamut | 1,300 : 1(Typ.) & 65% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 25% -100% | PDF p3 |
| Operating Power | 156W (Typ.)±5% | Typical; PDF p3 |
| Weight | 5.5kg ±0.2 | PDF p3 |
| Operating Temperature | 0°C~50°C | Module specification; PDF p3 |
| Storage Temperature | -20°C~60°C | PDF p3 |
| Panel Platform | LD320EUY-SQA3 & 68°C (Surface) | PDF p3; panel surface temperature is not module operating temperature |
| AD Board | Not equipped | PDF p2; not a finished HDMI / DP monitor |
| IP Rating | None / None | PDF p3; system enclosure requires engineering review |
| Warranty | 24 months | User-approved warranty |
FIT BEFORE INTEGRATION
YZ320MJH20H-V0
Use the selected model’s hole pattern, connector positions and clearance. Check mounting and thermal conditions against the original drawing before integration.
Open Drawing Image ↗ Download Drawing in PDF ↓Drawing image available. Contact our team regarding CAD file availability.
CONNECTOR / PIN DEFINITION
Selected interface LVDS
Use the selected model’s original panel connector sheet. Verify the interface, lane mapping, supply and orientation before integration. Unconfirmed interfaces require engineering confirmation.
Check CN2 and, where present, CN3 in the selected pin definition. Check supply, ground, enable and dimming signals before connection.
These modules do not include an AD board. Panel interface is not a claim of ready-to-use HDMI / DP input or an included power supply.
Open Pin Definition in PDF ↗BACKLIGHT OPTIONS
723.40 × 418.00 × 35.50 mm · 2000 nits / 2500 nits / 3000 nits
730.40 × 425.00 × 26.90 mm · 1000 nits / 1500 nits
TECHNICAL DOCUMENTS
Documents follow the selected configuration.
SELECTED MODEL
Product Brief · Specifications + Drawing + Pin Definition
English product datasheet
| Model | Document | Revision | Date | PDF / Release status |
|---|---|---|---|---|
| YZ320MEH10H-V0 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ320MEH10H-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ320MEH15H-V0 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ320MEH15H-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ320MJH20H-V0 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ320MJH20H-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ320MJH25H-V0 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ320MJH25H-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ320MJH30H-V0 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ320MJH30H-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
Datasheet availability varies by configuration. Model-specific engineering images are available above.
ENGINEERING NOTES / FAQ
Customization options depend on your project requirements. Contact our team to discuss integration and delivery requirements.
This series contains 10 documented configurations. Choose a complete model from the comparison table; brightness, backlight, interface and temperature ratings apply to that model only.
The modules do not include an AD board or a front / rear IP rating. Touch, controller, enclosure and system power requirements need separate engineering confirmation.
Share the target brightness, interface, envelope, mounting and installation conditions. Our engineering team determines the feasible scope; a requested combination is not automatically an existing model.
Include the full 32-inch model and datasheet revision. Check the model-specific outline and operating temperature: ELED and DLED entries have different dimensions, and the model suffix alone is insufficient.
REQUEST A QUOTE
Selected model: YZ320MJH20H-V0
Send the application, ambient conditions, target quantity, LVDS controller needs and mounting constraints. Include the full 32-inch model and datasheet revision, with the drawing used to check the enclosure.
