HIGH BRIGHTNESS LCD MODULES / SERIES

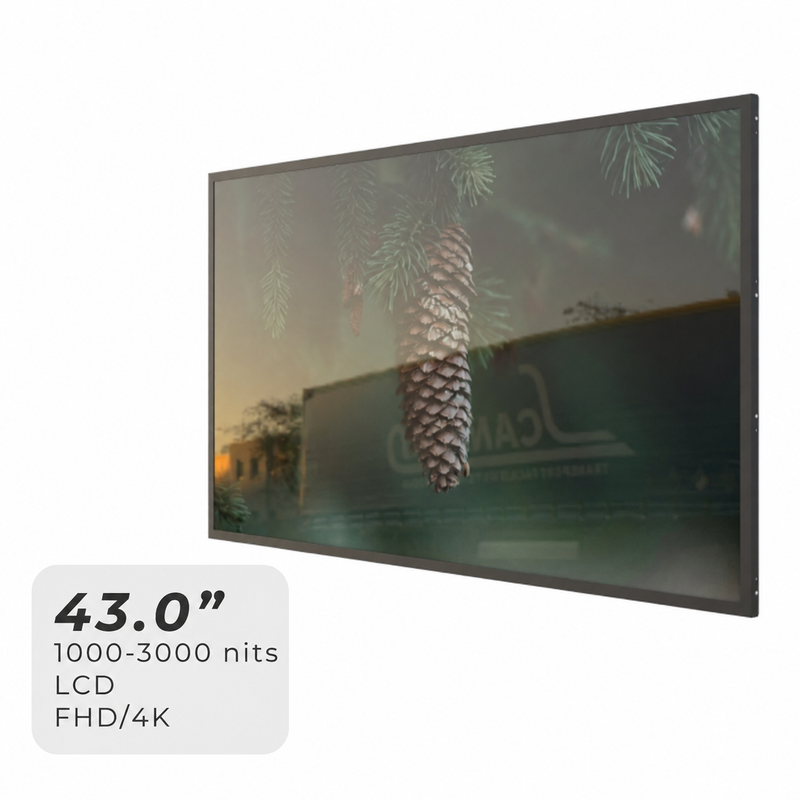

43″ High Brightness LCD Module Series
A 43-inch module family for bright-light display integration, with documented ELED and DLED configurations. Choose the model that fits your brightness, resolution and mechanical requirements.
Selected Model YZ430MBH20H-V0
- Brightness
- 2,000 nits
- Backlight
- DLED
- Resolution
- 1920 × 1080
- Panel Interface
- LVDS
- Dimensions
- 976.00 × 564.20 × 52.50 mm
- Operating Temperature
- -20°C~70°C
Brightness: typical ±5%. Values above apply to the selected variant, not the entire series.

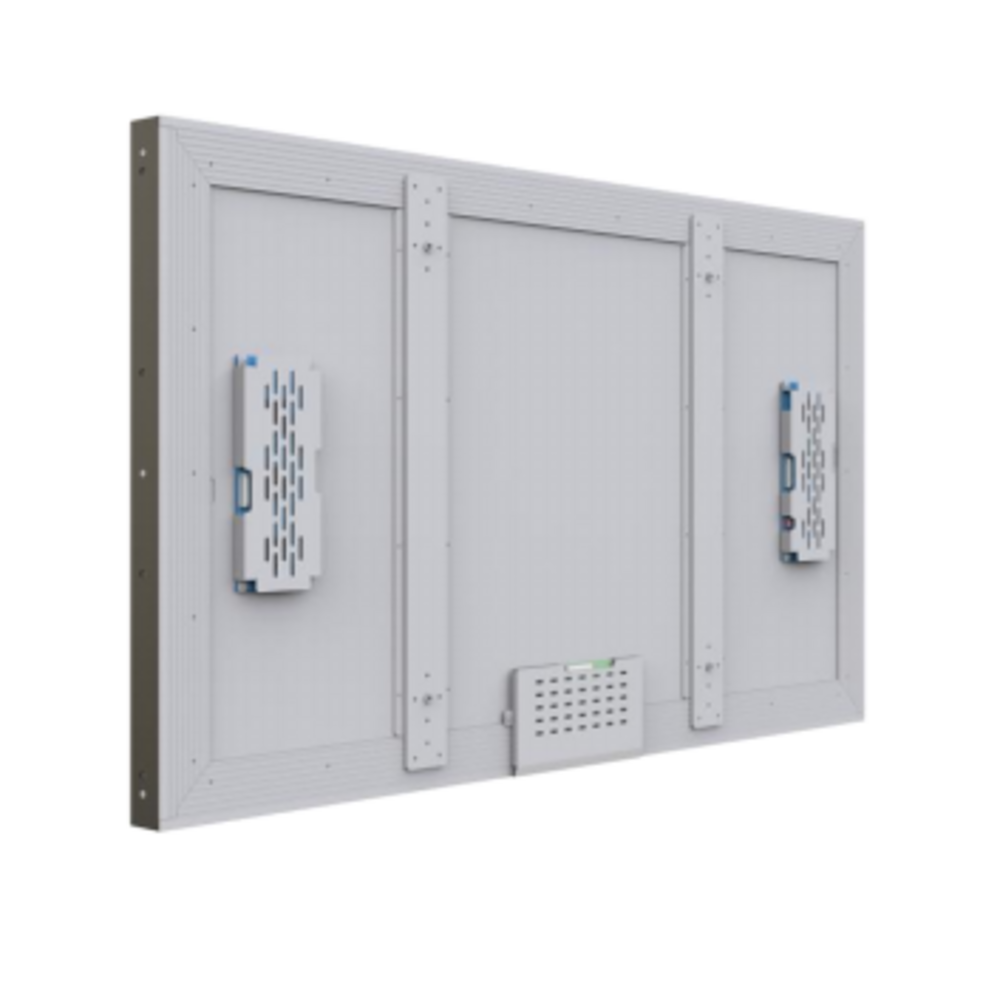

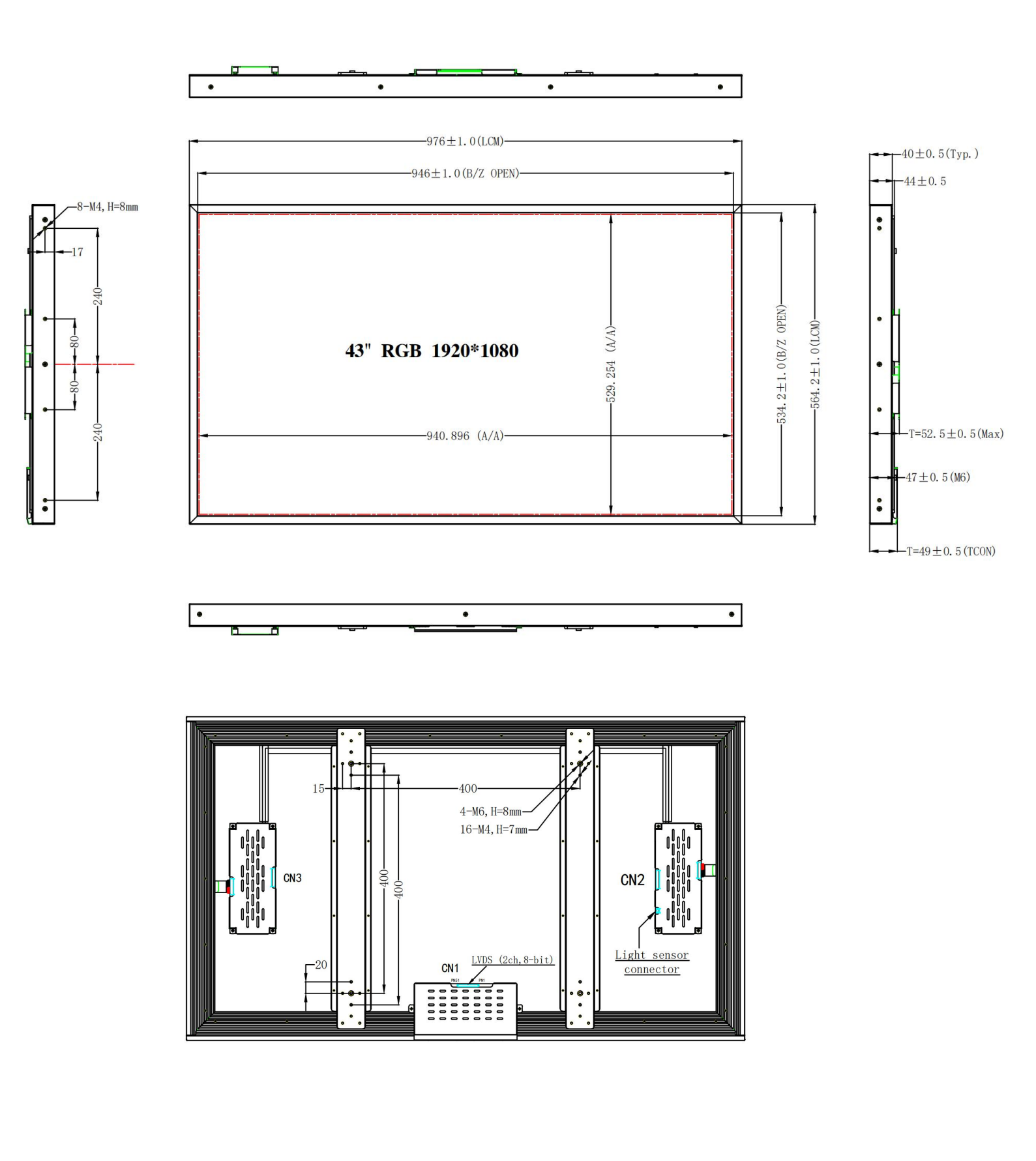

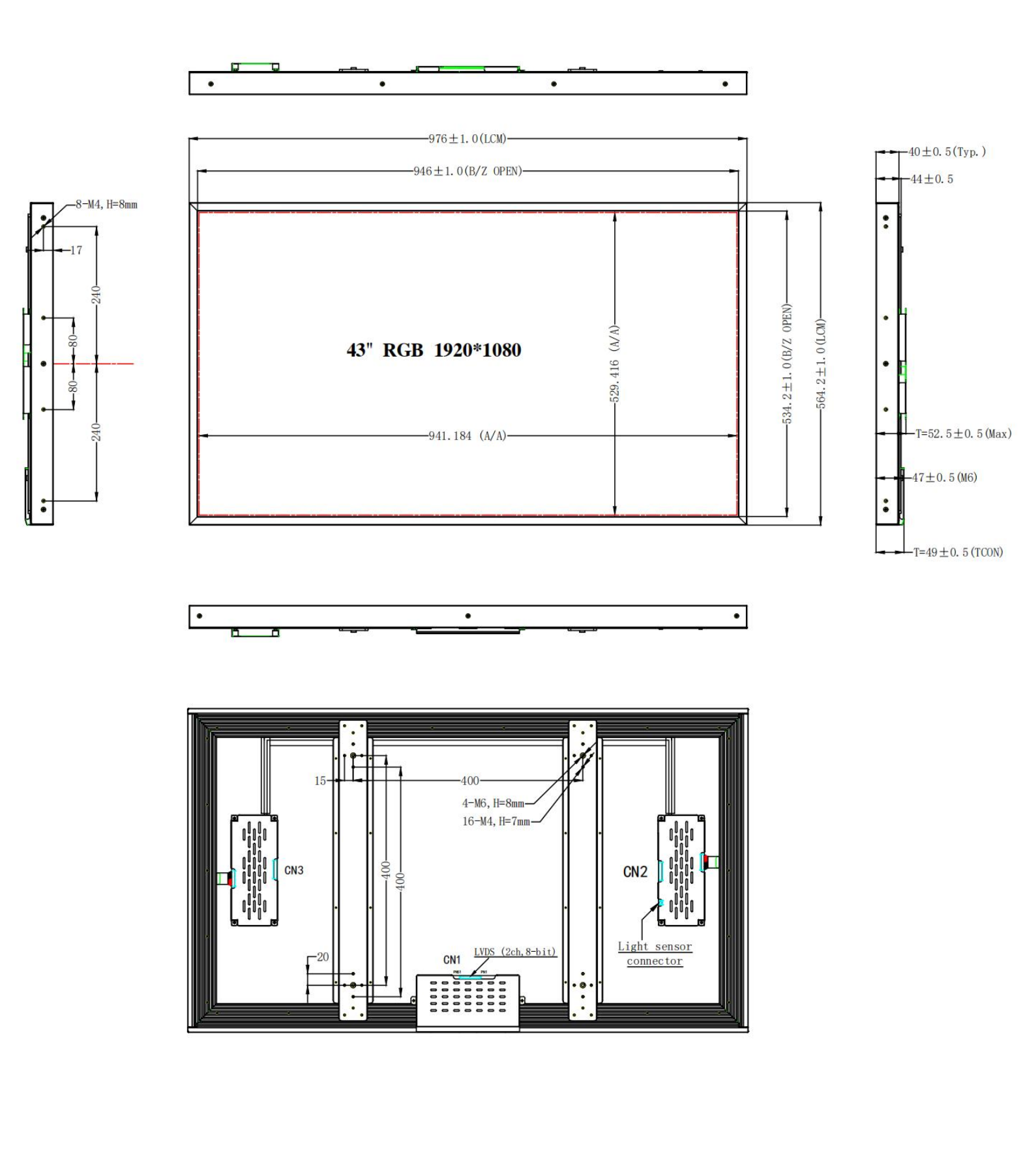

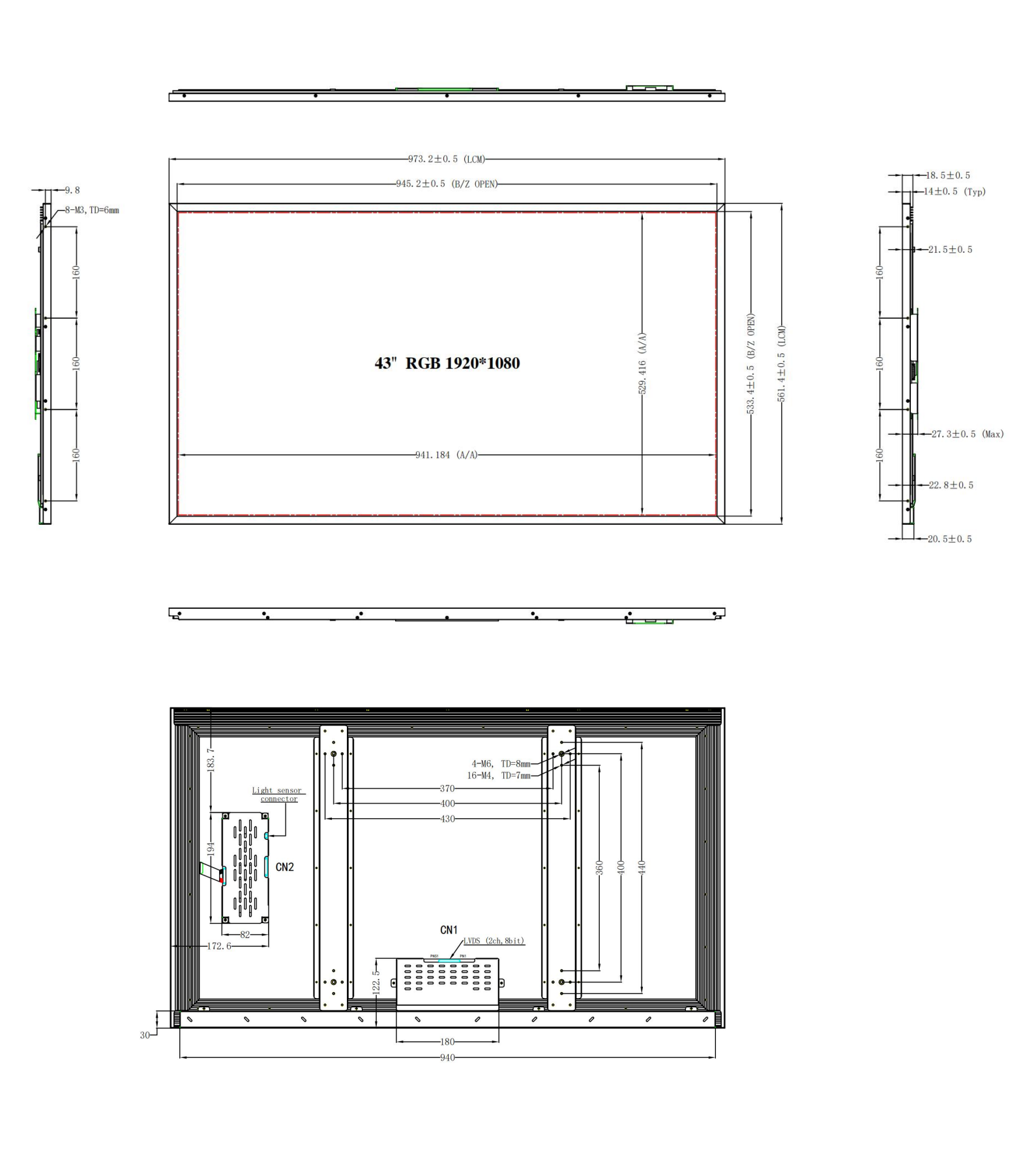

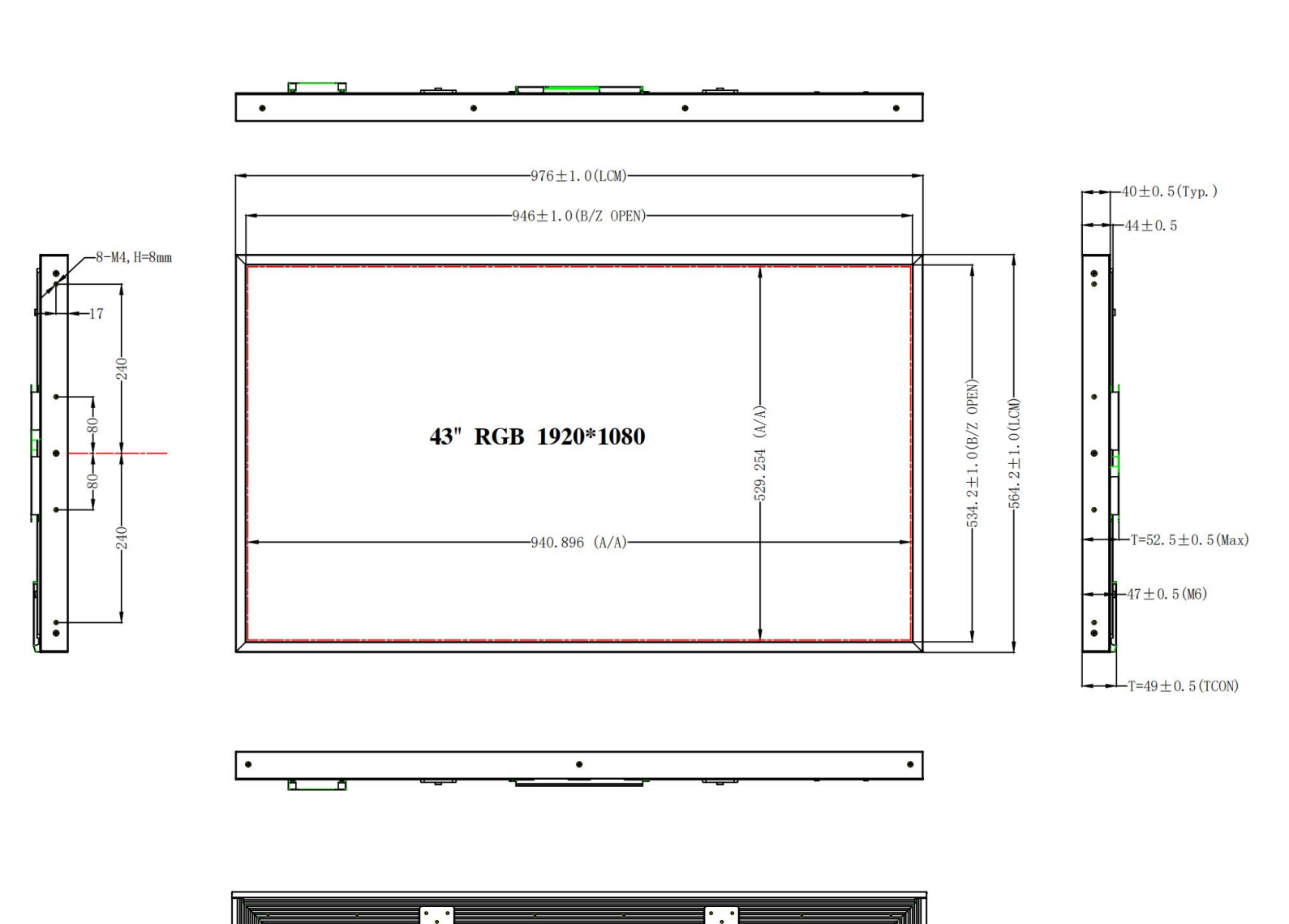

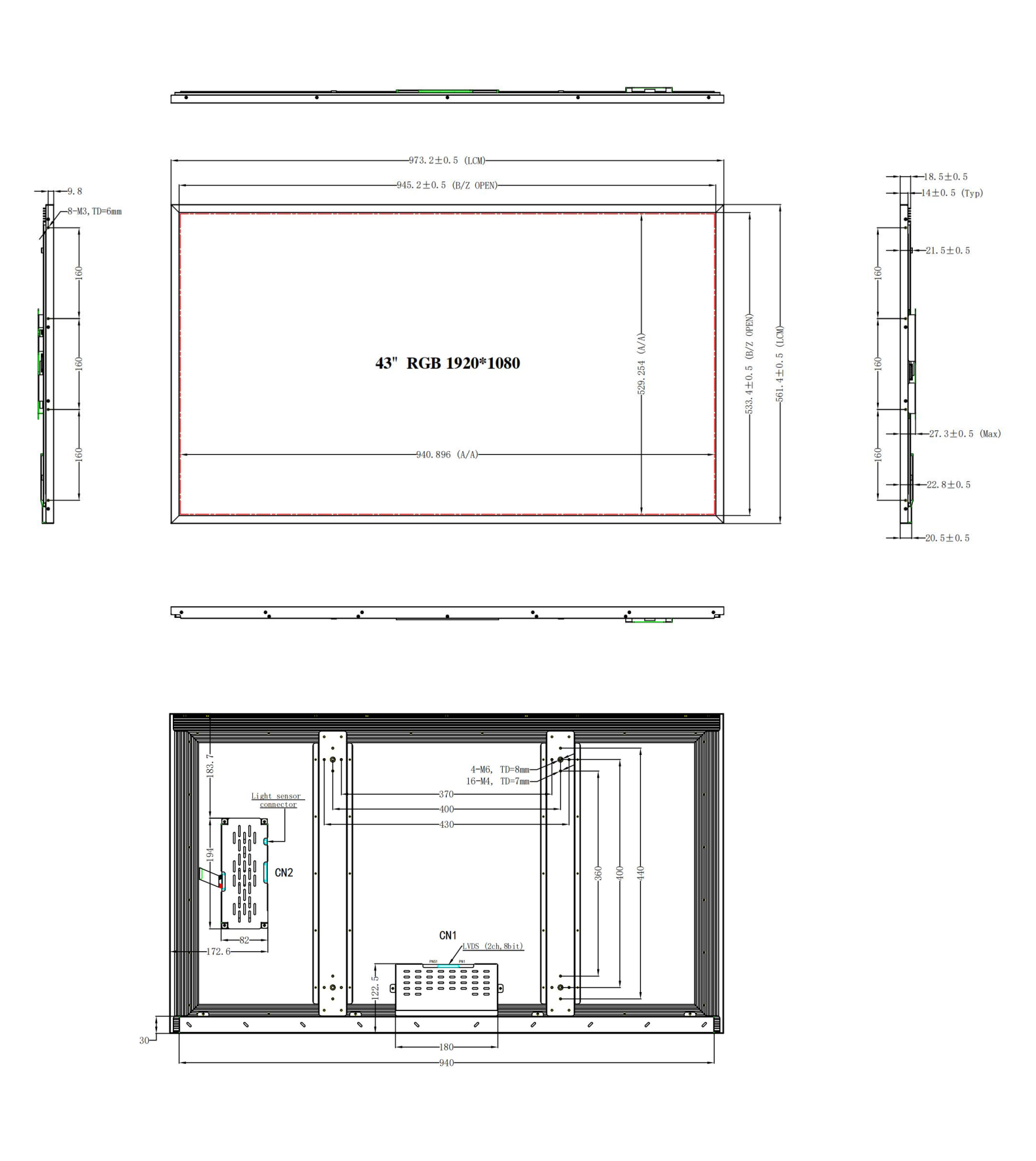

1920 × 1080 / LVDS. Model-specific drawing and pin definition available below.
CHOOSE YOUR CONFIGURATION
Variant Comparison
16 documented configurations available.
Click a model to update the engineering view.
16 of 16 configurations

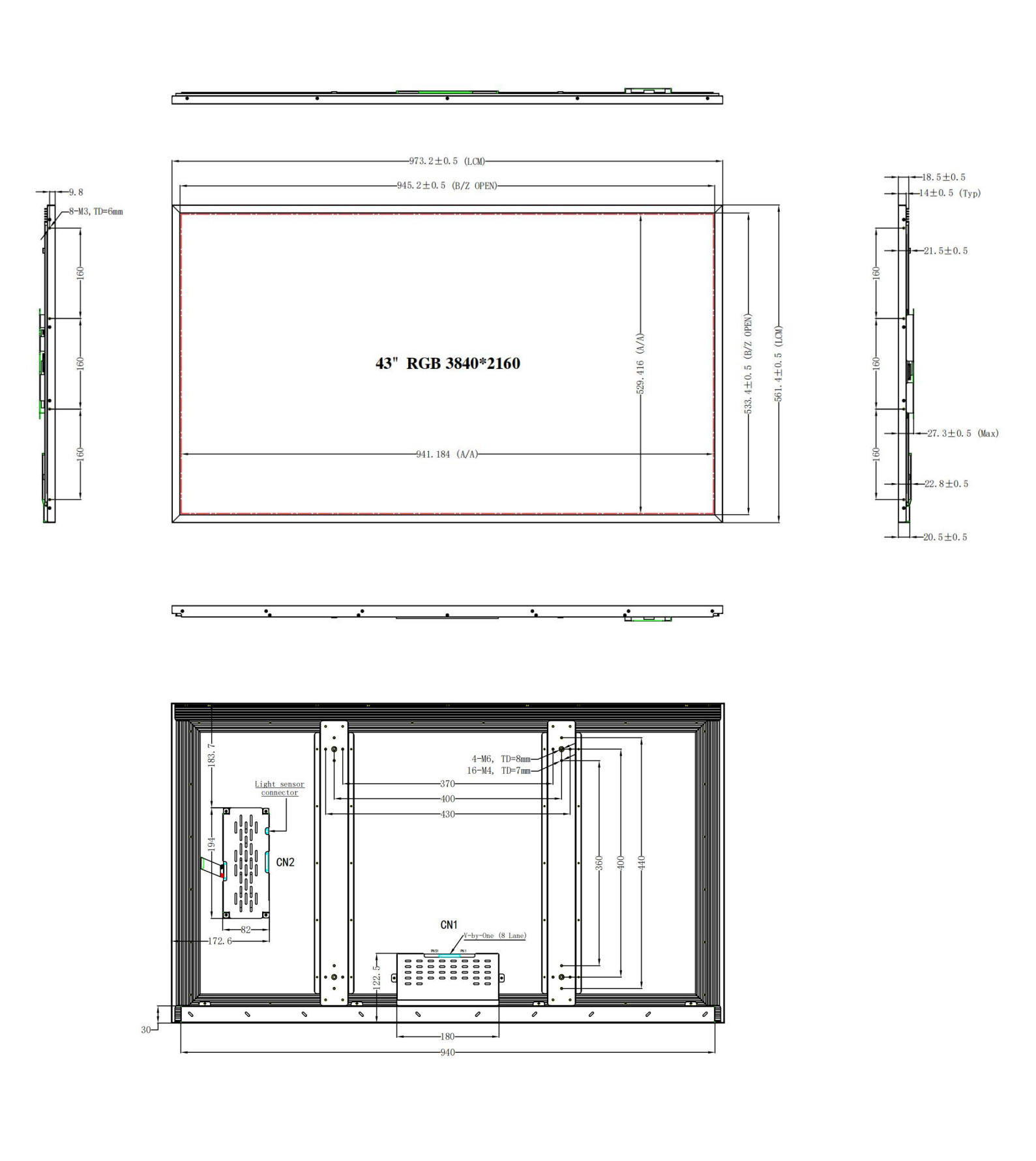

| YuanZhong Model | Brightness | Backlight | Resolution | Panel Interface | Dimensions | Datasheet |
|---|---|---|---|---|---|---|
| 1,000 nits | ELED | 1920 × 1080 | LVDS | 973.20 × 561.40 × 27.30 mm | View documents ↓ | |
| 1,000 nits | ELED | 1920 × 1080 | LVDS | 973.20 × 561.40 × 27.30 mm | View documents ↓ | |
| 1,500 nits | ELED | 1920 × 1080 | LVDS | 973.20 × 561.40 × 27.30 mm | View documents ↓ | |
| 1,500 nits | ELED | 1920 × 1080 | LVDS | 973.20 × 561.40 × 27.30 mm | View documents ↓ | |
| 1,000 nits | ELED | 3840 × 2160† | V-by-One | 973.20 × 561.40 × 27.30 mm | EN PDF ↗ | |
| 1,000 nits | ELED | 3840 × 2160† | V-by-One | 973.20 × 561.40 × 27.30 mm | EN PDF ↗ | |
| 1,500 nits | ELED | 3840 × 2160† | V-by-One | 973.20 × 561.40 × 27.30 mm | EN PDF ↗ | |
| 1,500 nits | ELED | 3840 × 2160† | V-by-One | 973.20 × 561.40 × 27.30 mm | EN PDF ↗ | |
| 2,000 nits | DLED | 1920 × 1080 | LVDS | 976.00 × 564.20 × 52.50 mm | View documents ↓ | |
| 2,000 nits | DLED | 1920 × 1080 | LVDS | 976.00 × 564.20 × 52.50 mm | View documents ↓ | |
| 2,500 nits | DLED | 1920 × 1080 | LVDS | 976.00 × 564.20 × 52.50 mm | View documents ↓ | |
| 2,500 nits | DLED | 1920 × 1080 | LVDS | 976.00 × 564.20 × 52.50 mm | View documents ↓ | |
| 3,000 nits | DLED | 1920 × 1080 | LVDS | 976.00 × 564.20 × 52.50 mm | View documents ↓ | |
| 3,000 nits | DLED | 1920 × 1080 | LVDS | 976.00 × 564.20 × 52.50 mm | View documents ↓ | |
| 2,000 nits | DLED | 3840 × 2160† | V-by-One | 976.00 × 564.20 × 52.50 mm | EN PDF ↗ | |
| 2,000 nits | DLED | 3840 × 2160† | V-by-One | 976.00 × 564.20 × 52.50 mm | EN PDF ↗ | |
| No configurations match these filters. | ||||||
Configuration availability and mechanical requirements depend on the selected model.
BEST FOR / HOW TO CHOOSE
Start with the installation.
Consider retail-window integration, commercial signage and industrial equipment where a 43-inch module fits. Final suitability depends on the enclosure, ambient light and thermal design.
Discuss your application →Interface & controller
Match LVDS or V-by-One to the exact panel, timing and controller.
Mechanical & thermal
Check outline, airflow and ambient temperature. Modules are not rated weatherproof finished displays.
MODEL-SPECIFIC DATA
Detailed Specifications
Selected YZ430MBH20H-V0
YZ430MBH20H-V02,000 nits / DLED / 1920 × 1080
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 43 inch | PDF p2 |
| Brightness | 2,000 nits | Typical ±5%; PDF p3 |
| Backlight Type | DLED | PDF p3 |
| Resolution | 1920 × 1080 | Native pixels; PDF p2 / p3 / drawing p4 |

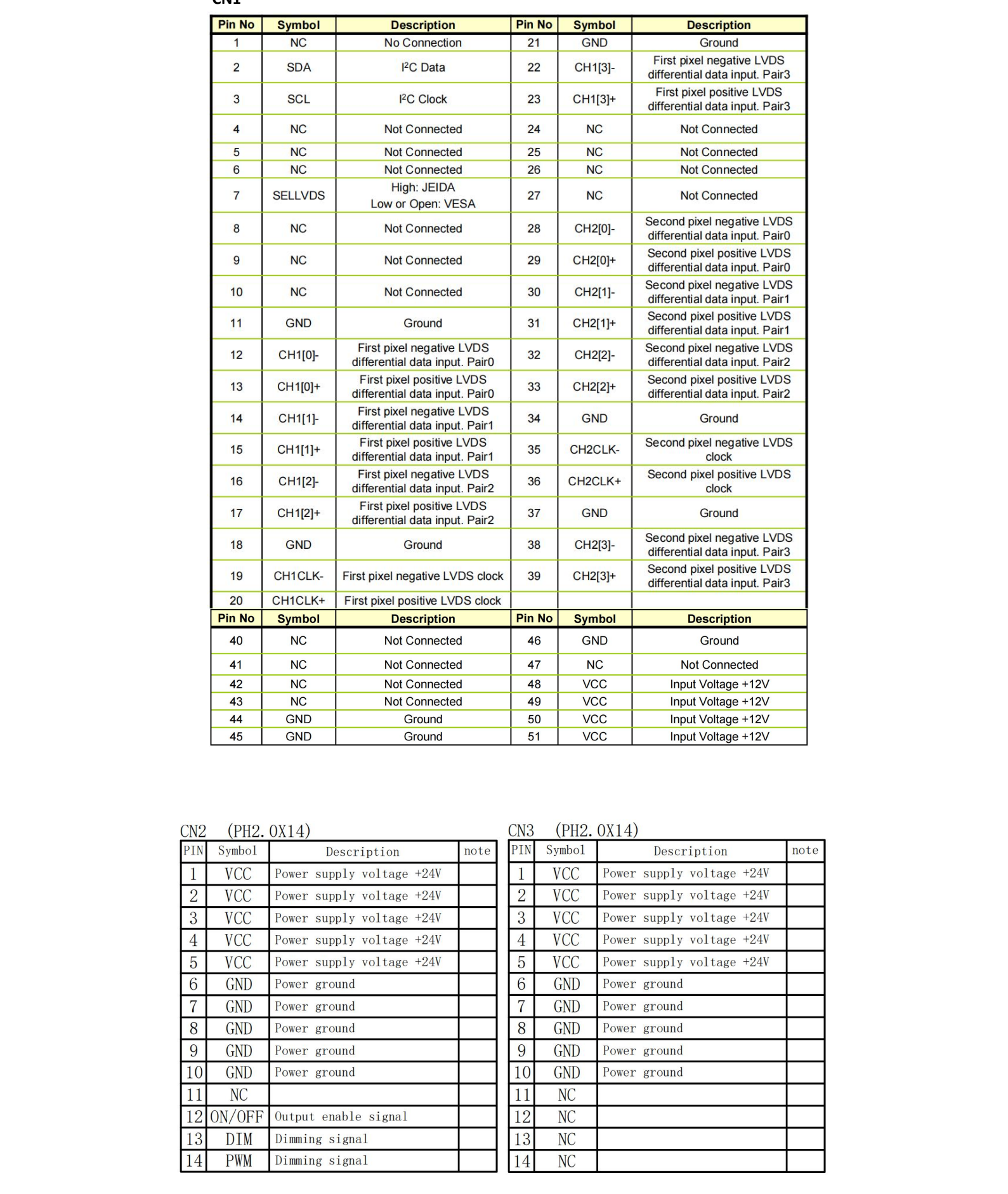

| Panel Interface | LVDS | CN1 pin definition; PDF p5 |
| Overall Dimensions | 976.00 × 564.20 × 52.50 mm | H × V × D; typical; PDF p3 |
| Active Area | 940.896 × 529.254 mm | H × V; PDF p3 |
| Display Colors | 8-bit(D)& 16.7 Million | PDF p3 |
| Response Time | 13ms (G to G) (Typ.) | G to G; typical; PDF p3 |
| Contrast / Color Gamut | 1,200 : 1(Typ.) & 70% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 25% -100% | PDF p3 |
| Operating Power | 146W (Typ.)±5% | Typical ±5%; PDF p3 |
| Weight | 11.8kg ±0.2 | PDF p3 |
| Operating Temperature | -20°C~70°C | Module specification; PDF p3 |
| Storage Temperature | -30°C~80°C | PDF p3 |
| Panel Platform | DV430FHB-R00 & 105°C (Hi-Tni) | PDF p3; not a whole-system temperature rating |
| AD Board | Not equipped | PDF p2; panel interface ≠ finished HDMI / DP input |
| IP Rating | None / None | Front / rear; PDF p3; enclosure design required |
| Warranty | 24 months | Standard product warranty |

YZ430MEH10-V11,000 nits / ELED / 1920 × 1080
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 43 inch | PDF p2 |
| Brightness | 1,000 nits | Typical ±5%; PDF p3 |
| Backlight Type | ELED | PDF p3 |
| Resolution | 1920 × 1080 | Native pixels; PDF p2 / p3 / drawing p4 |
| Panel Interface | LVDS | CN1 pin definition; PDF p5 |
| Overall Dimensions | 973.20 × 561.40 × 27.30 mm | H × V × D; typical; PDF p3 |
| Active Area | 941.184 × 529.416 mm | H × V; PDF p3 |
| Display Colors | 8-bit(D)& 16.7 Million | PDF p3 |
| Response Time | 8ms (G to G) (Typ.) | G to G; typical; PDF p3 |
| Contrast / Color Gamut | 1,200 : 1(Typ.) & 65% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 25% -100% | PDF p3 |
| Operating Power | 74W (Typ.) ±5% | Typical ±5%; PDF p3 |
| Weight | 9kg ±0.2 | PDF p3 |
| Operating Temperature | 0°C~50°C | Module specification; PDF p3 |
| Storage Temperature | -20°C~60°C | PDF p3 |
| Panel Platform | LC430DUY-SHA1 & 68°C (Surface) | PDF p3; not a whole-system temperature rating |
| AD Board | Not equipped | PDF p2; panel interface ≠ finished HDMI / DP input |
| IP Rating | None / None | Front / rear; PDF p3; enclosure design required |
| Warranty | 24 months | Standard product warranty |
YZ430MEH10H-V01,000 nits / ELED / 1920 × 1080
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 43 inch | PDF p2 |
| Brightness | 1,000 nits | Typical ±5%; PDF p3 |
| Backlight Type | ELED | PDF p3 |
| Resolution | 1920 × 1080 | Native pixels; PDF p2 / p3 / drawing p4 |
| Panel Interface | LVDS | CN1 pin definition; PDF p5 |
| Overall Dimensions | 973.20 × 561.40 × 27.30 mm | H × V × D; typical; PDF p3 |
| Active Area | 940.896 × 529.254 mm | H × V; PDF p3 |
| Display Colors | 8-bit(D)& 16.7 Million | PDF p3 |
| Response Time | 13ms (G to G) (Typ.) | G to G; typical; PDF p3 |
| Contrast / Color Gamut | 1,200 : 1(Typ.) & 70% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 25% -100% | PDF p3 |
| Operating Power | 78W (Typ.) ±5% | Typical ±5%; PDF p3 |
| Weight | 9kg ±0.2 | PDF p3 |
| Operating Temperature | -20°C~70°C | Module specification; PDF p3 |
| Storage Temperature | -30°C~80°C | PDF p3 |
| Panel Platform | DV430FHB-R00 & 105°C (Hi-Tni) | PDF p3; not a whole-system temperature rating |
| AD Board | Not equipped | PDF p2; panel interface ≠ finished HDMI / DP input |
| IP Rating | None / None | Front / rear; PDF p3; enclosure design required |
| Warranty | 24 months | Standard product warranty |
YZ430MEH15-V11,500 nits / ELED / 1920 × 1080
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 43 inch | PDF p2 |
| Brightness | 1,500 nits | Typical ±5%; PDF p3 |
| Backlight Type | ELED | PDF p3 |
| Resolution | 1920 × 1080 | Native pixels; PDF p2 / p3 / drawing p4 |
| Panel Interface | LVDS | CN1 pin definition; PDF p5 |
| Overall Dimensions | 973.20 × 561.40 × 27.30 mm | H × V × D; typical; PDF p3 |
| Active Area | 941.184 × 529.416 mm | H × V; PDF p3 |
| Display Colors | 8-bit(D)& 16.7 Million | PDF p3 |
| Response Time | 8ms (G to G) (Typ.) | G to G; typical; PDF p3 |
| Contrast / Color Gamut | 1,200 : 1(Typ.) & 65% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 25% -100% | PDF p3 |
| Operating Power | 124W (Typ.)±5% | Typical ±5%; PDF p3 |
| Weight | 9kg ±0.2 | PDF p3 |
| Operating Temperature | 0°C~50°C | Module specification; PDF p3 |
| Storage Temperature | -20°C~60°C | PDF p3 |
| Panel Platform | LC430DUY-SHA1 & 68°C (Surface) | PDF p3; not a whole-system temperature rating |
| AD Board | Not equipped | PDF p2; panel interface ≠ finished HDMI / DP input |
| IP Rating | None / None | Front / rear; PDF p3; enclosure design required |
| Warranty | 24 months | Standard product warranty |
YZ430MEH15H-V01,500 nits / ELED / 1920 × 1080
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 43 inch | PDF p2 |
| Brightness | 1,500 nits | Typical ±5%; PDF p3 |
| Backlight Type | ELED | PDF p3 |
| Resolution | 1920 × 1080 | Native pixels; PDF p2 / p3 / drawing p4 |
| Panel Interface | LVDS | CN1 pin definition; PDF p5 |
| Overall Dimensions | 973.20 × 561.40 × 27.30 mm | H × V × D; typical; PDF p3 |
| Active Area | 940.896 × 529.254 mm | H × V; PDF p3 |
| Display Colors | 8-bit(D)& 16.7 Million | PDF p3 |
| Response Time | 13ms (G to G) (Typ.) | G to G; typical; PDF p3 |
| Contrast / Color Gamut | 1,200 : 1(Typ.) & 70% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 25% -100% | PDF p3 |
| Operating Power | 131W (Typ.)±5% | Typical ±5%; PDF p3 |
| Weight | 9kg ±0.2 | PDF p3 |
| Operating Temperature | -20°C~70°C | Module specification; PDF p3 |
| Storage Temperature | -30°C~80°C | PDF p3 |
| Panel Platform | DV430FHB-R00 & 105°C (Hi-Tni) | PDF p3; not a whole-system temperature rating |
| AD Board | Not equipped | PDF p2; panel interface ≠ finished HDMI / DP input |
| IP Rating | None / None | Front / rear; PDF p3; enclosure design required |
| Warranty | 24 months | Standard product warranty |
YZ430MEU10-V11,000 nits / ELED / 3840 × 2160
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 43 inch | PDF p2 |
| Brightness | 1,000 nits | Typical ±5%; PDF p3 |
| Backlight Type | ELED | PDF p3 |
| Resolution | 3840 × 2160 | Native pixels; PDF p2 / p3 / drawing p4 |
| Panel Interface | V-by-One | CN1 pin definition; PDF p5 |
| Overall Dimensions | 973.20 × 561.40 × 27.30 mm | H × V × D; typical; PDF p3 |
| Active Area | 941.184 × 529.416 mm | H × V; PDF p3 |
| Display Colors | 10-bit(D) & 1.07 Billion | PDF p3 |
| Response Time | 8ms (G to G) (Typ.) | G to G; typical; PDF p3 |
| Contrast / Color Gamut | 1,000 : 1 (Typ.)& 68% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 25% -100% | PDF p3 |
| Operating Power | 119W (Typ.)±5% | Typical ±5%; PDF p3 |
| Weight | 9kg ±0.2 | PDF p3 |
| Operating Temperature | 0°C~50°C | Module specification; PDF p3 |
| Storage Temperature | -20°C~60°C | PDF p3 |
| Panel Platform | LC430EQC-STA1 & 68°C (Surface) | PDF p3; not a whole-system temperature rating |
| AD Board | Not equipped | PDF p2; panel interface ≠ finished HDMI / DP input |
| IP Rating | None / None | Front / rear; PDF p3; enclosure design required |
| Warranty | 24 months | Standard product warranty |
YZ430MEU10H-V11,000 nits / ELED / 3840 × 2160
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 43 inch | PDF p2 |
| Brightness | 1,000 nits | Typical ±5%; PDF p3 |
| Backlight Type | ELED | PDF p3 |
| Resolution | 3840 × 2160 | Native pixels; PDF p2 / p3 / drawing p4 |
| Panel Interface | V-by-One | CN1 pin definition; PDF p5 |
| Overall Dimensions | 973.20 × 561.40 × 27.30 mm | H × V × D; typical; PDF p3 |
| Active Area | 941.184 × 529.416 mm | H × V; PDF p3 |
| Display Colors | 10-bit(D) & 1.07 Billion | PDF p3 |
| Response Time | 9ms (G to G) (Typ.) | G to G; typical; PDF p3 |
| Contrast / Color Gamut | 1,000 :1 (Typ.) & 68% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 25% -100% | PDF p3 |
| Operating Power | 130W (Typ.)±5% | Typical ±5%; PDF p3 |
| Weight | 9kg ±0.2 | PDF p3 |
| Operating Temperature | 0°C~50°C | Module specification; PDF p3 |
| Storage Temperature | -20°C~60°C | PDF p3 |
| Panel Platform | LD430EQQ-SNN1 & 68°C (Surface) | PDF p3; not a whole-system temperature rating |
| AD Board | Not equipped | PDF p2; panel interface ≠ finished HDMI / DP input |
| IP Rating | None / None | Front / rear; PDF p3; enclosure design required |
| Warranty | 24 months | Standard product warranty |
YZ430MEU15-V11,500 nits / ELED / 3840 × 2160
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 43 inch | PDF p2 |
| Brightness | 1,500 nits | Typical ±5%; PDF p3 |
| Backlight Type | ELED | PDF p3 |
| Resolution | 3840 × 2160 | Native pixels; PDF p2 / p3 / drawing p4 |
| Panel Interface | V-by-One | CN1 pin definition; PDF p5 |
| Overall Dimensions | 973.20 × 561.40 × 27.30 mm | H × V × D; typical; PDF p3 |
| Active Area | 941.184 × 529.416 mm | H × V; PDF p3 |
| Display Colors | 10-bit(D) & 1.07 Billion | PDF p3 |
| Response Time | 8ms (G to G) (Typ.) | G to G; typical; PDF p3 |
| Contrast / Color Gamut | 1,000 : 1 (Typ.)& 68% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 25% -100% | PDF p3 |
| Operating Power | 200W (Typ.)±5% | Typical ±5%; PDF p3 |
| Weight | 9kg ±0.2 | PDF p3 |
| Operating Temperature | 0°C~50°C | Module specification; PDF p3 |
| Storage Temperature | -20°C~60°C | PDF p3 |
| Panel Platform | LC430EQC-STA1 & 68°C (Surface) | PDF p3; not a whole-system temperature rating |
| AD Board | Not equipped | PDF p2; panel interface ≠ finished HDMI / DP input |
| IP Rating | None / None | Front / rear; PDF p3; enclosure design required |
| Warranty | 24 months | Standard product warranty |
YZ430MEU15H-V11,500 nits / ELED / 3840 × 2160
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 43 inch | PDF p2 |
| Brightness | 1,500 nits | Typical ±5%; PDF p3 |
| Backlight Type | ELED | PDF p3 |
| Resolution | 3840 × 2160 | Native pixels; PDF p2 / p3 / drawing p4 |
| Panel Interface | V-by-One | CN1 pin definition; PDF p5 |
| Overall Dimensions | 973.20 × 561.40 × 27.30 mm | H × V × D; typical; PDF p3 |
| Active Area | 941.184 × 529.416 mm | H × V; PDF p3 |
| Display Colors | 10-bit(D) & 1.07 Billion | PDF p3 |
| Response Time | 9ms (G to G) (Typ.) | G to G; typical; PDF p3 |
| Contrast / Color Gamut | 1,000 :1 (Typ.) & 68% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 25% -100% | PDF p3 |
| Operating Power | 219W (Typ.)±5% | Typical ±5%; PDF p3 |
| Weight | 9kg ±0.2 | PDF p3 |
| Operating Temperature | 0°C~50°C | Module specification; PDF p3 |
| Storage Temperature | -20°C~60°C | PDF p3 |
| Panel Platform | LD430EQQ-SNN1 & 68°C (Surface) | PDF p3; not a whole-system temperature rating |
| AD Board | Not equipped | PDF p2; panel interface ≠ finished HDMI / DP input |
| IP Rating | None / None | Front / rear; PDF p3; enclosure design required |
| Warranty | 24 months | Standard product warranty |
YZ430MBH20-V12,000 nits / DLED / 1920 × 1080
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 43 inch | PDF p2 |
| Brightness | 2,000 nits | Typical ±5%; PDF p3 |
| Backlight Type | DLED | PDF p3 |
| Resolution | 1920 × 1080 | Native pixels; PDF p2 / p3 / drawing p4 |
| Panel Interface | LVDS | CN1 pin definition; PDF p5 |
| Overall Dimensions | 976.00 × 564.20 × 52.50 mm | H × V × D; typical; PDF p3 |
| Active Area | 941.184 × 529.416 mm | H × V; PDF p3 |
| Display Colors | 8-bit(D)& 16.7 Million | PDF p3 |
| Response Time | 8ms (G to G) (Typ.) | G to G; typical; PDF p3 |
| Contrast / Color Gamut | 1,200 : 1(Typ.) & 65% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 25% -100% | PDF p3 |
| Operating Power | 138W (Typ.)±5% | Typical ±5%; PDF p3 |
| Weight | 11.8kg ±0.2 | PDF p3 |
| Operating Temperature | 0°C~50°C | Module specification; PDF p3 |
| Storage Temperature | -20°C~60°C | PDF p3 |
| Panel Platform | LC430DUY-SHA1 & 68°C (Surface) | PDF p3; not a whole-system temperature rating |
| AD Board | Not equipped | PDF p2; panel interface ≠ finished HDMI / DP input |
| IP Rating | None / None | Front / rear; PDF p3; enclosure design required |
| Warranty | 24 months | Standard product warranty |
YZ430MBH25-V12,500 nits / DLED / 1920 × 1080
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 43 inch | PDF p2 |
| Brightness | 2,500 nits | Typical ±5%; PDF p3 |
| Backlight Type | DLED | PDF p3 |
| Resolution | 1920 × 1080 | Native pixels; PDF p2 / p3 / drawing p4 |
| Panel Interface | LVDS | CN1 pin definition; PDF p5 |
| Overall Dimensions | 976.00 × 564.20 × 52.50 mm | H × V × D; typical; PDF p3 |
| Active Area | 941.184 × 529.416 mm | H × V; PDF p3 |
| Display Colors | 8-bit(D)& 16.7 Million | PDF p3 |
| Response Time | 8ms (G to G) (Typ.) | G to G; typical; PDF p3 |
| Contrast / Color Gamut | 1,200 : 1(Typ.) & 65% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 25% -100% | PDF p3 |
| Operating Power | 185W (Typ.)±5% | Typical ±5%; PDF p3 |
| Weight | 11.8kg ±0.2 | PDF p3 |
| Operating Temperature | 0°C~50°C | Module specification; PDF p3 |
| Storage Temperature | -20°C~60°C | PDF p3 |
| Panel Platform | LC430DUY-SHA1 & 68°C (Surface) | PDF p3; not a whole-system temperature rating |
| AD Board | Not equipped | PDF p2; panel interface ≠ finished HDMI / DP input |
| IP Rating | None / None | Front / rear; PDF p3; enclosure design required |
| Warranty | 24 months | Standard product warranty |
YZ430MBH25H-V02,500 nits / DLED / 1920 × 1080
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 43 inch | PDF p2 |
| Brightness | 2,500 nits | Typical ±5%; PDF p3 |
| Backlight Type | DLED | PDF p3 |
| Resolution | 1920 × 1080 | Native pixels; PDF p2 / p3 / drawing p4 |
| Panel Interface | LVDS | CN1 pin definition; PDF p5 |
| Overall Dimensions | 976.00 × 564.20 × 52.50 mm | H × V × D; typical; PDF p3 |
| Active Area | 940.896 × 529.254 mm | H × V; PDF p3 |
| Display Colors | 8-bit(D)& 16.7 Million | PDF p3 |
| Response Time | 13ms (G to G) (Typ.) | G to G; typical; PDF p3 |
| Contrast / Color Gamut | 1,200 : 1(Typ.) & 70% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 25% -100% | PDF p3 |
| Operating Power | 196W (Typ.)±5% | Typical ±5%; PDF p3 |
| Weight | 11.8kg ±0.2 | PDF p3 |
| Operating Temperature | -20°C~70°C | Module specification; PDF p3 |
| Storage Temperature | -30°C~80°C | PDF p3 |
| Panel Platform | DV430FHB-R00 & 105°C (Hi-Tni) | PDF p3; not a whole-system temperature rating |
| AD Board | Not equipped | PDF p2; panel interface ≠ finished HDMI / DP input |
| IP Rating | None / None | Front / rear; PDF p3; enclosure design required |
| Warranty | 24 months | Standard product warranty |
YZ430MBH30-V13,000 nits / DLED / 1920 × 1080
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 43 inch | PDF p2 |
| Brightness | 3,000 nits | Typical ±5%; PDF p3 |
| Backlight Type | DLED | PDF p3 |
| Resolution | 1920 × 1080 | Native pixels; PDF p2 / p3 / drawing p4 |
| Panel Interface | LVDS | CN1 pin definition; PDF p5 |
| Overall Dimensions | 976.00 × 564.20 × 52.50 mm | H × V × D; typical; PDF p3 |
| Active Area | 941.184 × 529.416 mm | H × V; PDF p3 |
| Display Colors | 8-bit(D)& 16.7 Million | PDF p3 |
| Response Time | 8ms (G to G) (Typ.) | G to G; typical; PDF p3 |
| Contrast / Color Gamut | 1,200 : 1(Typ.) & 65% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 25% -100% | PDF p3 |
| Operating Power | 247W (Typ.)±5% | Typical ±5%; PDF p3 |
| Weight | 11.8kg ±0.2 | PDF p3 |
| Operating Temperature | 0°C~50°C | Module specification; PDF p3 |
| Storage Temperature | -20°C~60°C | PDF p3 |
| Panel Platform | LC430DUY-SHA1 & 68°C (Surface) | PDF p3; not a whole-system temperature rating |
| AD Board | Not equipped | PDF p2; panel interface ≠ finished HDMI / DP input |
| IP Rating | None / None | Front / rear; PDF p3; enclosure design required |
| Warranty | 24 months | Standard product warranty |
YZ430MBH30H-V03,000 nits / DLED / 1920 × 1080
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 43 inch | PDF p2 |
| Brightness | 3,000 nits | Typical ±5%; PDF p3 |
| Backlight Type | DLED | PDF p3 |
| Resolution | 1920 × 1080 | Native pixels; PDF p2 / p3 / drawing p4 |
| Panel Interface | LVDS | CN1 pin definition; PDF p5 |
| Overall Dimensions | 976.00 × 564.20 × 52.50 mm | H × V × D; typical; PDF p3 |
| Active Area | 940.896 × 529.254 mm | H × V; PDF p3 |
| Display Colors | 8-bit(D)& 16.7 Million | PDF p3 |
| Response Time | 13ms (G to G) (Typ.) | G to G; typical; PDF p3 |
| Contrast / Color Gamut | 1,200 : 1(Typ.) & 70% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 25% -100% | PDF p3 |
| Operating Power | 261W (Typ.)±5% | Typical ±5%; PDF p3 |
| Weight | 11.8kg ±0.2 | PDF p3 |
| Operating Temperature | -20°C~70°C | Module specification; PDF p3 |
| Storage Temperature | -30°C~80°C | PDF p3 |
| Panel Platform | DV430FHB-R00 & 105°C (Hi-Tni) | PDF p3; not a whole-system temperature rating |
| AD Board | Not equipped | PDF p2; panel interface ≠ finished HDMI / DP input |
| IP Rating | None / None | Front / rear; PDF p3; enclosure design required |
| Warranty | 24 months | Standard product warranty |
YZ430MBU20-V12,000 nits / DLED / 3840 × 2160
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 43 inch | PDF p2 |
| Brightness | 2,000 nits | Typical ±5%; PDF p3 |
| Backlight Type | DLED | PDF p3 |
| Resolution | 3840 × 2160 | Native pixels; PDF p2 / p3 / drawing p4 |
| Panel Interface | V-by-One | CN1 pin definition; PDF p5 |
| Overall Dimensions | 976.00 × 564.20 × 52.50 mm | H × V × D; typical; PDF p3 |
| Active Area | 941.184 × 529.416 mm | H × V; PDF p3 |
| Display Colors | 10-bit(D) & 1.07 Billion | PDF p3 |
| Response Time | 8ms (G to G) (Typ.) | G to G; typical; PDF p3 |
| Contrast / Color Gamut | 1,000 : 1 (Typ.)& 68% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 25% -100% | PDF p3 |
| Operating Power | 220W (Typ.)±5% | Typical ±5%; PDF p3 |
| Weight | 11.8kg ±0.2 | PDF p3 |
| Operating Temperature | 0°C~50°C | Module specification; PDF p3 |
| Storage Temperature | -20°C~60°C | PDF p3 |
| Panel Platform | LC430EQC-STA1 & 68°C (Surface) | PDF p3; not a whole-system temperature rating |
| AD Board | Not equipped | PDF p2; panel interface ≠ finished HDMI / DP input |
| IP Rating | None / None | Front / rear; PDF p3; enclosure design required |
| Warranty | 24 months | Standard product warranty |
YZ430MBU20H-V12,000 nits / DLED / 3840 × 2160
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 43 inch | PDF p2 |
| Brightness | 2,000 nits | Typical ±5%; PDF p3 |
| Backlight Type | DLED | PDF p3 |
| Resolution | 3840 × 2160 | Native pixels; PDF p2 / p3 / drawing p4 |
| Panel Interface | V-by-One | CN1 pin definition; PDF p5 |
| Overall Dimensions | 976.00 × 564.20 × 52.50 mm | H × V × D; typical; PDF p3 |
| Active Area | 941.184 × 529.416 mm | H × V; PDF p3 |
| Display Colors | 10-bit(D) & 1.07 Billion | PDF p3 |
| Response Time | 9ms (G to G) (Typ.) | G to G; typical; PDF p3 |
| Contrast / Color Gamut | 1,000 :1 (Typ.) & 68% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 25% -100% | PDF p3 |
| Operating Power | 243W (Typ.)±5% | Typical ±5%; PDF p3 |
| Weight | 11.8kg ±0.2 | PDF p3 |
| Operating Temperature | 0°C~50°C | Module specification; PDF p3 |
| Storage Temperature | -20°C~60°C | PDF p3 |
| Panel Platform | LD430EQQ-SNN1 & 68°C (Surface) | PDF p3; not a whole-system temperature rating |
| AD Board | Not equipped | PDF p2; panel interface ≠ finished HDMI / DP input |
| IP Rating | None / None | Front / rear; PDF p3; enclosure design required |
| Warranty | 24 months | Standard product warranty |
FIT BEFORE INTEGRATION
Mechanical & Mounting
YZ430MBH20H-V0
Verify the complete outline.
- Overall Dimensions · H × V × D
- 976.00 × 564.20 × 52.50 mm
- Active Area · H × V
- 940.896 × 529.254 mm
- Nominal Thickness · typical
- 52.50 mm
Mounting notes
Use the selected drawing’s hole pattern, connector positions and clearance. ELED and DLED outlines are different; do not transfer mounting assumptions between models.
Open Drawing Image ↗ Download Drawing in PDF ↓Drawing image available. Contact our team regarding CAD file availability.
CONNECTOR / PIN DEFINITION
Panel & Backlight Integration
Selected interface LVDS
LVDS panel interface
Use the selected model’s CN1 pin definition. FHD and 4K use different signal interfaces; connector appearance alone does not establish compatibility.
Backlight connector
Check CN2 and, where present, CN3 in the selected pin definition. Check supply, ground, enable and dimming signals before connection.
Controller / integration notes
These modules do not include an AD board. Panel interface is not a claim of ready-to-use HDMI / DP input or an included power supply.
Open Pin Definition in PDF ↗BACKLIGHT OPTIONS
Two structures. Defined configurations.
Compare real models, not hypothetical combinations.
No ELED 2000 / 2500 / 3000-nit model is listed.
ELED
Edge-lit configuration
27.30 mm nominal depth · typical
973.20 × 561.40 × 27.30 mm
973.20 × 561.40 × 27.30 mm
Representative drawing: YZ430MEH10H-V0. Check the chosen model’s mounting and connector details.
- 1,000 nits · FHD
- 1,000 nits · FHD
- 1,500 nits · FHD
- 1,500 nits · FHD
- 1,000 nits · 4K
- 1,000 nits · 4K
- 1,500 nits · 4K
- 1,500 nits · 4K
DLED
Direct-lit configuration 52.50 mm nominal depth · typical
976.00 × 564.20 × 52.50 mm
976.00 × 564.20 × 52.50 mm
Representative drawing: YZ430MBH20H-V0. Check the chosen model’s mounting and connector details.
- 2,000 nits · FHD
- 2,000 nits · FHD
- 2,500 nits · FHD
- 2,500 nits · FHD
- 3,000 nits · FHD
- 3,000 nits · FHD
- 2,000 nits · 4K
- 2,000 nits · 4K
TECHNICAL DOCUMENTS
Downloads by Model
Documents follow the selected configuration.
SELECTED MODEL
YZ430MBH20H-V0
Product Brief · Specifications + Drawing + Pin Definition
- Revision
- 1.0
- Date
- 2026-01-01
Download EN PDF ↓
English product datasheet
View documents for all configurations
| Model | Document | Revision | Date | PDF / Release status |
|---|---|---|---|---|
| YZ430MEH10-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ430MEH10H-V0 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ430MEH15-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ430MEH15H-V0 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ430MEU10-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ430MEU10H-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ430MEU15-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ430MEU15H-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ430MBH20-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ430MBH20H-V0 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ430MBH25-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ430MBH25H-V0 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ430MBH30-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ430MBH30H-V0 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ430MBU20-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ430MBU20H-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
Datasheet availability varies by configuration. Model-specific engineering images are available above.
ENGINEERING NOTES / FAQ
Clear answers before RFQ.
Customization options depend on your project requirements. Contact our team to discuss integration and delivery requirements.
Is every brightness available in both backlights?
No. The listed ELED models are 1000 / 1500 nits; DLED models are 2000 / 2500 / 3000 nits. The available resolution and interface depend on the actual model.
Does the module include HDMI, touch or weather protection?
The modules do not include an AD board or a front / rear IP rating. Touch, controller, enclosure and system power requirements need separate engineering confirmation.
Can I request customization?
Share the target brightness, interface, envelope, mounting and installation conditions. Our engineering team determines the feasible scope; a requested combination is not automatically an existing model.
Which model should I quote?
Use the complete YuanZhong model from Available Configurations. Include the selected PDF revision, drawing constraints and operating environment with your RFQ.
