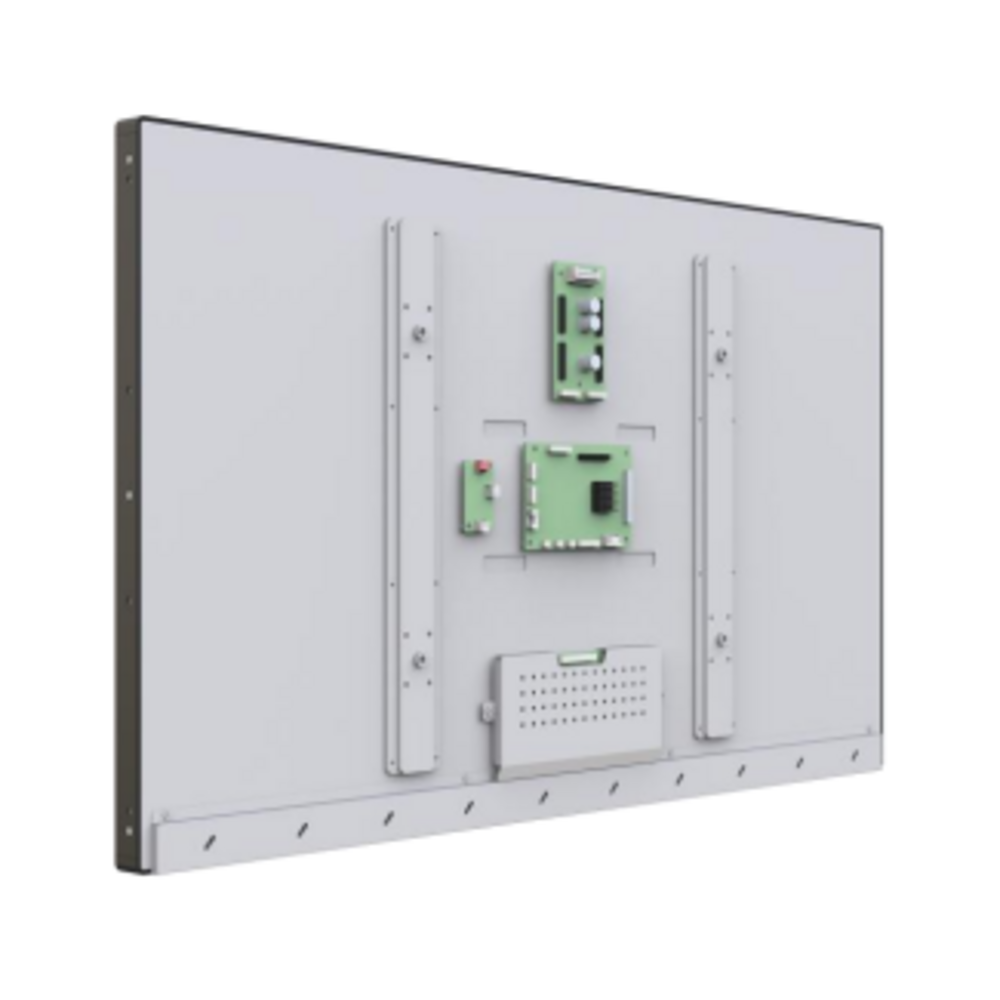

02 Rear

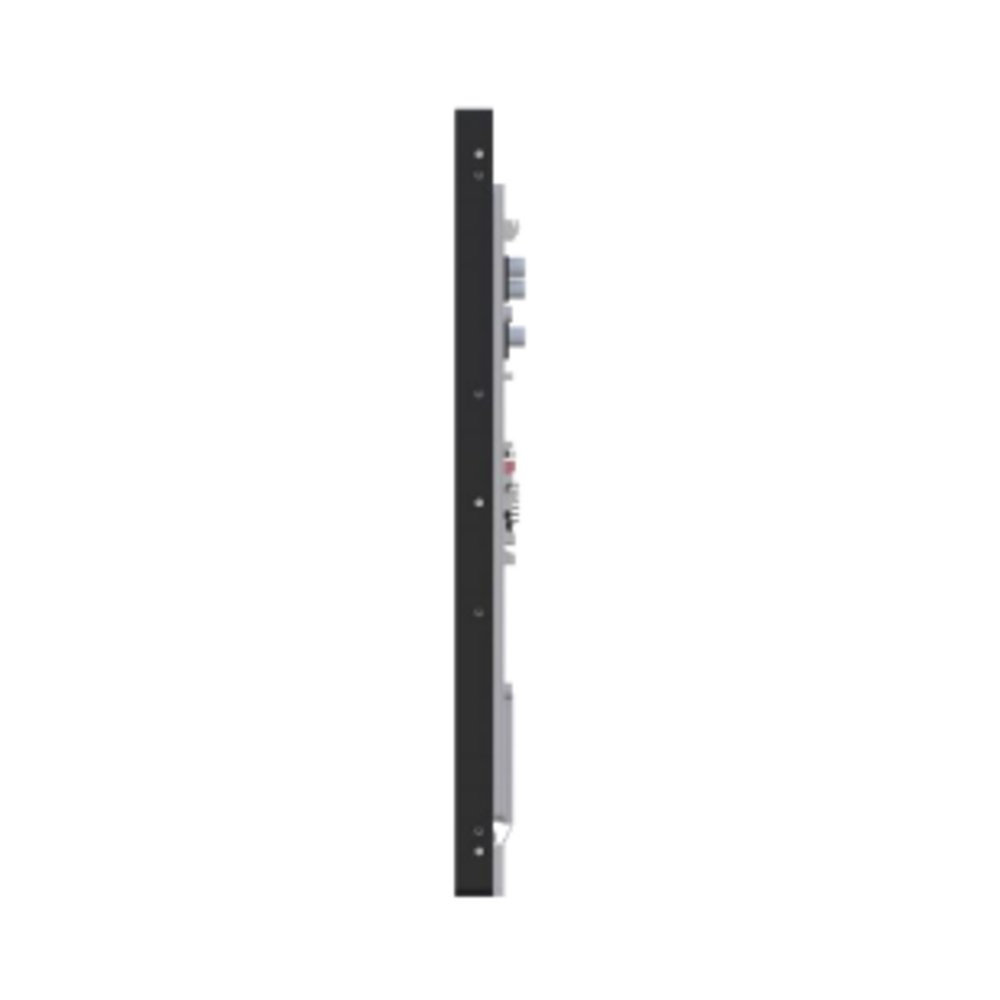

03 Side04 CAD05 Dimensions06 Interface

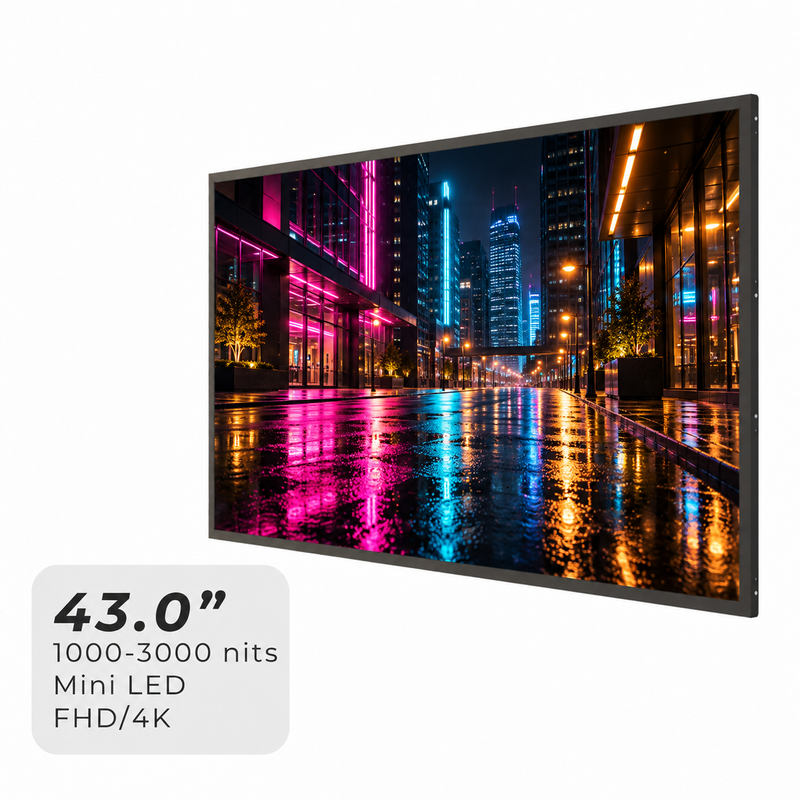

Series representative image. Use the selected model’s verified drawing and pin definition for integration.
SERIES GALLERYOutline / interface details ↓
MINI-LED / LOCAL DIMMING LCD MODULES / SERIES
43″ Mini-LED / Local Dimming LCD Module Series
16 documented FHD and 4K configurations with 1,000–3,000 nits typical brightness, 1,152 local dimming zones and 2,304 LEDs. An LCD module for display integration; an AD board and IP-rated enclosure are not included as standard.
Available Configurations Compare all 16 ↓YZ430MDH10DH-V0 · 1,000 nits · FHD Hi-Tni V0YZ430MDH15DH-V0 · 1,500 nits · FHD Hi-Tni V0YZ430MDH20DH-V0 · 2,000 nits · FHD Hi-Tni V0YZ430MDH25DH-V0 · 2,500 nits · FHD Hi-Tni V0YZ430MDH30DH-V0 · 3,000 nits · FHD Hi-Tni V0YZ430MDH10D-V1 · 1,000 nits · FHD Standard V1YZ430MDH15D-V1 · 1,500 nits · FHD Standard V1YZ430MDH20D-V1 · 2,000 nits · FHD Standard V1YZ430MDH25D-V1 · 2,500 nits · FHD Standard V1YZ430MDH30D-V1 · 3,000 nits · FHD Standard V1YZ430MDU10D-V1 · 1,000 nits · 4K Standard V1YZ430MDU15D-V1 · 1,500 nits · 4K Standard V1YZ430MDU20D-V1 · 2,000 nits · 4K Standard V1YZ430MDU10DH-V1 · 1,000 nits · 4K Wide-T V1YZ430MDU15DH-V1 · 1,500 nits · 4K Wide-T V1YZ430MDU20DH-V1 · 2,000 nits · 4K Wide-T V1
Selected Model YZ430MDH15DH-V0
Brightness
1,500 nits
Backlight
DLED / Local Dimming
Resolution
1920 × 1080
Panel Interface
LVDS
Dimensions
976.00 × 564.20 × 46.90 mm
Operating Temperature
-20°C~70°C
Brightness: typical ±5%. Values above apply to the selected variant, not the entire series.
Request a Quote ↗Compare Configurations ↓
Follow the selected model’s original CN1 and CN2 definitions. Panel logic and backlight connectors are separate; verify the integration power architecture.
ConfigurationsSpecificationsMechanicalBacklight OptionsDownloadsEngineering RFQ ↗
CHOOSE YOUR CONFIGURATION
Variant Comparison
16 documented configurations. Select a model to update the specifications.
Brightness All 1000 nits 1500 nits 2000 nits 2500 nits 3000 nits TypeAll platformsFHD4KReset filters
16 of 16 configurations
Available Configurations · brightness is typical ±5%; dimensions H × V × D, typical | ||||||
YuanZhong Model | Brightness | Backlight | Resolution | Panel Interface | Dimensions | Datasheet |
|---|---|---|---|---|---|---|
YZ430MDH10DH-V0 | 1,000 nits | DLED / Local Dimming | 1920 × 1080 | LVDS | 976.00 × 564.20 × 46.90 mm | EN PDF ↗ |
YZ430MDH15DH-V0 | 1,500 nits | DLED / Local Dimming | 1920 × 1080 | LVDS | 976.00 × 564.20 × 46.90 mm | EN PDF ↗ |
YZ430MDH20DH-V0 | 2,000 nits | DLED / Local Dimming | 1920 × 1080 | LVDS | 976.00 × 564.20 × 46.90 mm | EN PDF ↗ |
YZ430MDH25DH-V0 | 2,500 nits | DLED / Local Dimming | 1920 × 1080 | LVDS | 976.00 × 564.20 × 46.90 mm | EN PDF ↗ |
YZ430MDH30DH-V0 | 3,000 nits | DLED / Local Dimming | 1920 × 1080 | LVDS | 976.00 × 564.20 × 46.90 mm | EN PDF ↗ |
YZ430MDH10D-V1 | 1,000 nits | DLED / Local Dimming | 1920 × 1080 | LVDS | 976.00 × 564.20 × 46.90 mm | EN PDF ↗ |
YZ430MDH15D-V1 | 1,500 nits | DLED / Local Dimming | 1920 × 1080 | LVDS | 976.00 × 564.20 × 46.90 mm | EN PDF ↗ |
YZ430MDH20D-V1 | 2,000 nits | DLED / Local Dimming | 1920 × 1080 | LVDS | 976.00 × 564.20 × 46.90 mm | EN PDF ↗ |
YZ430MDH25D-V1 | 2,500 nits | DLED / Local Dimming | 1920 × 1080 | LVDS | 976.00 × 564.20 × 46.90 mm | EN PDF ↗ |
YZ430MDH30D-V1 | 3,000 nits | DLED / Local Dimming | 1920 × 1080 | LVDS | 976.00 × 564.20 × 46.90 mm | EN PDF ↗ |
YZ430MDU10D-V1 | 1,000 nits | DLED / Local Dimming | 3840 × 2160 | V-by-One | 976.00 × 564.20 × 46.90 mm | EN PDF ↗ |
YZ430MDU15D-V1 | 1,500 nits | DLED / Local Dimming | 3840 × 2160 | V-by-One | 976.00 × 564.20 × 46.90 mm | EN PDF ↗ |
YZ430MDU20D-V1 | 2,000 nits | DLED / Local Dimming | 3840 × 2160 | V-by-One | 976.00 × 564.20 × 46.90 mm | EN PDF ↗ |
YZ430MDU10DH-V1 | 1,000 nits | DLED / Local Dimming | 3840 × 2160 | V-by-One | 976.00 × 564.20 × 46.90 mm | EN PDF ↗ |
YZ430MDU15DH-V1 | 1,500 nits | DLED / Local Dimming | 3840 × 2160 | V-by-One | 976.00 × 564.20 × 46.90 mm | EN PDF ↗ |
YZ430MDU20DH-V1 | 2,000 nits | DLED / Local Dimming | 3840 × 2160 | V-by-One | 976.00 × 564.20 × 46.90 mm | EN PDF ↗ |
No documented model matches these filters. | ||||||
Configuration availability and mechanical requirements depend on the selected model.
BEST FOR / HOW TO CHOOSE
Start with the integration.
Consider a documented 43-inch Mini-LED module for commercial display integration. Suitability depends on the enclosure, ambient light, controller and thermal design.
01
Brightness & image content
FHD configurations span 1,000–3,000 nits typical; 4K configurations span 1,000–2,000 nits typical. Maximum brightness is model-specific. Local dimming depends on image content and controller integration.
02
Resolution & interface
FHD uses LVDS; 4K uses V-by-One. An AD board is not included as standard. Match controller timing and the complete selected pin definition.
03
Thermal & mechanical fit
Compare the documented platform operating ranges and the selected original outline. The module requires enclosure, thermal and electrical integration.
MODEL-SPECIFIC DATA
Detailed Specifications
Selected YZ430MDH15DH-V0
YZ430MDH10DH-V01,000 nits / FHD Hi-Tni V0
YZ430MDH10DH-V0 · Product Brief rev. 1.0 · 2026-01-01 | ||
Parameter | Specification | Conditions / notes |
|---|---|---|
Display size | 43 inch | PDF p2 |
Platform | FHD Hi-Tni V0 | Documented platform; no supplier panel code displayed |
Brightness, typical | 1,000 nits | ±5%; PDF p3 |
Brightness, maximum | 2,000 nits | Source maximum ±5%; operating conditions apply |
Backlight Type | DLED Mini-LED / Local Dimming | PDF p2 / p3 |
Resolution | 1920 × 1080 | Numeric pixels verified against PDF p3 / p4 |
Local dimming zones | 1,152 (32 × 36) | PDF p7 |
LED quantity | 2,304 | PDF p7 |
Power consumption, typical | 78 W | ±5%; PDF p3 |
Power consumption, maximum | 94 W | ±5%; PDF p3 |
Panel interface | LVDS | CN1; PDF p5 |
Panel logic supply | 12 V | CN1; not a complete system input |
Backlight connector supply | 12 V | CN2; PDF p4 / p5; separate from panel logic supply |
Overall dimensions | 976.00 × 564.20 × 46.90 mm | H × V × D; PDF p3; original drawing tolerances apply |
Active area | 940.896 × 529.254 mm | H × V; PDF p3 / p4 |
Operating temperature | -20°C~70°C | Module operating range; PDF p3 |
Storage temperature | -30°C~80°C | PDF p3 |
Display colors | 8-bit(D) & 16.7 Million | PDF p3 |
Response time | 13ms (G to G) (Typ.) | PDF p3 |
Refresh rate | 60Hz (Best) | PDF p3 |
Dimming mode | Manual / Automatic & 25% - 100% | PDF p3; controller integration required |
Weight | 12.5kg ±0.2 | PDF p3 |
Viewing angle | +89/-89(H) & +89/-89(V) (Typ.) (CR≥10) | PDF p3 |
MTBF | 75,000 Hours | Source value; operating conditions apply |
IP rating | None / None | Module; enclosure engineering required |
AD board / touch / speaker | Not included as standard | PDF p2 |
Warranty | 24 months | User-approved warranty |
Representative series image. Mechanical fit follows the selected model’s original drawing.
Follow the selected model’s original CN1 and CN2 definitions. Panel logic and backlight connectors are separate; verify the integration power architecture.
YZ430MDH15DH-V01,500 nits / FHD Hi-Tni V0
YZ430MDH15DH-V0 · Product Brief rev. 1.0 · 2026-01-01 | ||
Parameter | Specification | Conditions / notes |
|---|---|---|
Display size | 43 inch | PDF p2 |
Platform | FHD Hi-Tni V0 | Documented platform; no supplier panel code displayed |
Brightness, typical | 1,500 nits | ±5%; PDF p3 |
Brightness, maximum | 2,500 nits | Source maximum ±5%; operating conditions apply |
Backlight Type | DLED Mini-LED / Local Dimming | PDF p2 / p3 |
Resolution | 1920 × 1080 | Numeric pixels verified against PDF p3 / p4 |
Local dimming zones | 1,152 (32 × 36) | PDF p7 |
LED quantity | 2,304 | PDF p7 |
Power consumption, typical | 131 W | ±5%; PDF p3 |
Power consumption, maximum | 157 W | ±5%; PDF p3 |
Panel interface | LVDS | CN1; PDF p5 |
Panel logic supply | 12 V | CN1; not a complete system input |
Backlight connector supply | 12 V | CN2; PDF p4 / p5; separate from panel logic supply |
Overall dimensions | 976.00 × 564.20 × 46.90 mm | H × V × D; PDF p3; original drawing tolerances apply |
Active area | 940.896 × 529.254 mm | H × V; PDF p3 / p4 |
Operating temperature | -20°C~70°C | Module operating range; PDF p3 |
Storage temperature | -30°C~80°C | PDF p3 |
Display colors | 8-bit(D) & 16.7 Million | PDF p3 |
Response time | 13ms (G to G) (Typ.) | PDF p3 |
Refresh rate | 60Hz (Best) | PDF p3 |
Dimming mode | Manual / Automatic & 25% - 100% | PDF p3; controller integration required |
Weight | 12.5kg ±0.2 | PDF p3 |
Viewing angle | +89/-89(H) & +89/-89(V) (Typ.) (CR≥10) | PDF p3 |
MTBF | 75,000 Hours | Source value; operating conditions apply |
IP rating | None / None | Module; enclosure engineering required |
AD board / touch / speaker | Not included as standard | PDF p2 |
Warranty | 24 months | User-approved warranty |
Representative series image. Mechanical fit follows the selected model’s original drawing.
Follow the selected model’s original CN1 and CN2 definitions. Panel logic and backlight connectors are separate; verify the integration power architecture.
YZ430MDH20DH-V02,000 nits / FHD Hi-Tni V0
YZ430MDH20DH-V0 · Product Brief rev. 1.0 · 2026-01-01 | ||
Parameter | Specification | Conditions / notes |
|---|---|---|
Display size | 43 inch | PDF p2 |
Platform | FHD Hi-Tni V0 | Documented platform; no supplier panel code displayed |
Brightness, typical | 2,000 nits | ±5%; PDF p3 |
Brightness, maximum | 3,000 nits | Source maximum ±5%; operating conditions apply |
Backlight Type | DLED Mini-LED / Local Dimming | PDF p2 / p3 |
Resolution | 1920 × 1080 | Numeric pixels verified against PDF p3 / p4 |
Local dimming zones | 1,152 (32 × 36) | PDF p7 |
LED quantity | 2,304 | PDF p7 |
Power consumption, typical | 146 W | ±5%; PDF p3 |
Power consumption, maximum | 175 W | ±5%; PDF p3 |
Panel interface | LVDS | CN1; PDF p5 |
Panel logic supply | 12 V | CN1; not a complete system input |
Backlight connector supply | 12 V | CN2; PDF p4 / p5; separate from panel logic supply |
Overall dimensions | 976.00 × 564.20 × 46.90 mm | H × V × D; PDF p3; original drawing tolerances apply |
Active area | 940.896 × 529.254 mm | H × V; PDF p3 / p4 |
Operating temperature | -20°C~70°C | Module operating range; PDF p3 |
Storage temperature | -30°C~80°C | PDF p3 |
Display colors | 8-bit(D) & 16.7 Million | PDF p3 |
Response time | 13ms (G to G) (Typ.) | PDF p3 |
Refresh rate | 60Hz (Best) | PDF p3 |
Dimming mode | Manual / Automatic & 25% - 100% | PDF p3; controller integration required |
Weight | 12.5kg ±0.2 | PDF p3 |
Viewing angle | +89/-89(H) & +89/-89(V) (Typ.) (CR≥10) | PDF p3 |
MTBF | 75,000 Hours | Source value; operating conditions apply |
IP rating | None / None | Module; enclosure engineering required |
AD board / touch / speaker | Not included as standard | PDF p2 |
Warranty | 24 months | User-approved warranty |
Representative series image. Mechanical fit follows the selected model’s original drawing.
Follow the selected model’s original CN1 and CN2 definitions. Panel logic and backlight connectors are separate; verify the integration power architecture.
YZ430MDH25DH-V02,500 nits / FHD Hi-Tni V0
YZ430MDH25DH-V0 · Product Brief rev. 1.0 · 2026-01-01 | ||
Parameter | Specification | Conditions / notes |
|---|---|---|
Display size | 43 inch | PDF p2 |
Platform | FHD Hi-Tni V0 | Documented platform; no supplier panel code displayed |
Brightness, typical | 2,500 nits | ±5%; PDF p3 |
Brightness, maximum | 3,500 nits | Source maximum ±5%; operating conditions apply |
Backlight Type | DLED Mini-LED / Local Dimming | PDF p2 / p3 |
Resolution | 1920 × 1080 | Numeric pixels verified against PDF p3 / p4 |
Local dimming zones | 1,152 (32 × 36) | PDF p7 |
LED quantity | 2,304 | PDF p7 |
Power consumption, typical | 196 W | ±5%; PDF p3 |
Power consumption, maximum | 235 W | ±5%; PDF p3 |
Panel interface | LVDS | CN1; PDF p5 |
Panel logic supply | 12 V | CN1; not a complete system input |
Backlight connector supply | 12 V | CN2; PDF p4 / p5; separate from panel logic supply |
Overall dimensions | 976.00 × 564.20 × 46.90 mm | H × V × D; PDF p3; original drawing tolerances apply |
Active area | 940.896 × 529.254 mm | H × V; PDF p3 / p4 |
Operating temperature | -20°C~70°C | Module operating range; PDF p3 |
Storage temperature | -30°C~80°C | PDF p3 |
Display colors | 8-bit(D) & 16.7 Million | PDF p3 |
Response time | 13ms (G to G) (Typ.) | PDF p3 |
Refresh rate | 60Hz (Best) | PDF p3 |
Dimming mode | Manual / Automatic & 25% - 100% | PDF p3; controller integration required |
Weight | 12.5kg ±0.2 | PDF p3 |
Viewing angle | +89/-89(H) & +89/-89(V) (Typ.) (CR≥10) | PDF p3 |
MTBF | 75,000 Hours | Source value; operating conditions apply |
IP rating | None / None | Module; enclosure engineering required |
AD board / touch / speaker | Not included as standard | PDF p2 |
Warranty | 24 months | User-approved warranty |
Representative series image. Mechanical fit follows the selected model’s original drawing.
Follow the selected model’s original CN1 and CN2 definitions. Panel logic and backlight connectors are separate; verify the integration power architecture.
YZ430MDH30DH-V03,000 nits / FHD Hi-Tni V0
YZ430MDH30DH-V0 · Product Brief rev. 1.0 · 2026-01-01 | ||
Parameter | Specification | Conditions / notes |
|---|---|---|
Display size | 43 inch | PDF p2 |
Platform | FHD Hi-Tni V0 | Documented platform; no supplier panel code displayed |
Brightness, typical | 3,000 nits | ±5%; PDF p3 |
Brightness, maximum | 4,000 nits | Source maximum ±5%; operating conditions apply |
Backlight Type | DLED Mini-LED / Local Dimming | PDF p2 / p3 |
Resolution | 1920 × 1080 | Numeric pixels verified against PDF p3 / p4 |
Local dimming zones | 1,152 (32 × 36) | PDF p7 |
LED quantity | 2,304 | PDF p7 |
Power consumption, typical | 261 W | ±5%; PDF p3 |
Power consumption, maximum | 313 W | ±5%; PDF p3 |
Panel interface | LVDS | CN1; PDF p5 |
Panel logic supply | 12 V | CN1; not a complete system input |
Backlight connector supply | 12 V | CN2; PDF p4 / p5; separate from panel logic supply |
Overall dimensions | 976.00 × 564.20 × 46.90 mm | H × V × D; PDF p3; original drawing tolerances apply |
Active area | 940.896 × 529.254 mm | H × V; PDF p3 / p4 |
Operating temperature | -20°C~70°C | Module operating range; PDF p3 |
Storage temperature | -30°C~80°C | PDF p3 |
Display colors | 8-bit(D) & 16.7 Million | PDF p3 |
Response time | 13ms (G to G) (Typ.) | PDF p3 |
Refresh rate | 60Hz (Best) | PDF p3 |
Dimming mode | Manual / Automatic & 25% - 100% | PDF p3; controller integration required |
Weight | 12.5kg ±0.2 | PDF p3 |
Viewing angle | +89/-89(H) & +89/-89(V) (Typ.) (CR≥10) | PDF p3 |
MTBF | 75,000 Hours | Source value; operating conditions apply |
IP rating | None / None | Module; enclosure engineering required |
AD board / touch / speaker | Not included as standard | PDF p2 |
Warranty | 24 months | User-approved warranty |
Representative series image. Mechanical fit follows the selected model’s original drawing.
Follow the selected model’s original CN1 and CN2 definitions. Panel logic and backlight connectors are separate; verify the integration power architecture.
YZ430MDH10D-V11,000 nits / FHD Standard V1
YZ430MDH10D-V1 · Product Brief rev. 1.0 · 2026-01-01 | ||
Parameter | Specification | Conditions / notes |
|---|---|---|
Display size | 43 inch | PDF p2 |
Platform | FHD Standard V1 | Documented platform; no supplier panel code displayed |
Brightness, typical | 1,000 nits | ±5%; PDF p3 |
Brightness, maximum | 2,000 nits | Source maximum ±5%; operating conditions apply |
Backlight Type | DLED Mini-LED / Local Dimming | PDF p2 / p3 |
Resolution | 1920 × 1080 | Numeric pixels verified against PDF p3 / p4 |
Local dimming zones | 1,152 (32 × 36) | PDF p7 |
LED quantity | 2,304 | PDF p7 |
Power consumption, typical | 74 W | ±5%; PDF p3 |
Power consumption, maximum | 89 W | ±5%; PDF p3 |
Panel interface | LVDS | CN1; PDF p5 |
Panel logic supply | 12 V | CN1; not a complete system input |
Backlight connector supply | 12 V | CN2; PDF p4 / p5; separate from panel logic supply |
Overall dimensions | 976.00 × 564.20 × 46.90 mm | H × V × D; PDF p3; original drawing tolerances apply |
Active area | 941.184 × 529.416 mm | H × V; PDF p3 / p4 |
Operating temperature | 0°C~50°C | Module operating range; PDF p3 |
Storage temperature | -20°C~60°C | PDF p3 |
Display colors | 8-bit(D) & 16.7 Million | PDF p3 |
Response time | 8ms (G to G) (Typ.) | PDF p3 |
Refresh rate | 60Hz (Best) | PDF p3 |
Dimming mode | Manual / Automatic & 25% - 100% | PDF p3; controller integration required |
Weight | 12.5kg ±0.2 | PDF p3 |
Viewing angle | +89/-89(H) & +89/-89(V) (Typ.) (CR≥10) | PDF p3 |
MTBF | 75,000 Hours | Source value; operating conditions apply |
IP rating | None / None | Module; enclosure engineering required |
AD board / touch / speaker | Not included as standard | PDF p2 |
Warranty | 24 months | User-approved warranty |
Representative series image. Mechanical fit follows the selected model’s original drawing.
Follow the selected model’s original CN1 and CN2 definitions. Panel logic and backlight connectors are separate; verify the integration power architecture.
YZ430MDH15D-V11,500 nits / FHD Standard V1
YZ430MDH15D-V1 · Product Brief rev. 1.0 · 2026-01-01 | ||
Parameter | Specification | Conditions / notes |
|---|---|---|
Display size | 43 inch | PDF p2 |
Platform | FHD Standard V1 | Documented platform; no supplier panel code displayed |
Brightness, typical | 1,500 nits | ±5%; PDF p3 |
Brightness, maximum | 2,500 nits | Source maximum ±5%; operating conditions apply |
Backlight Type | DLED Mini-LED / Local Dimming | PDF p2 / p3 |
Resolution | 1920 × 1080 | Numeric pixels verified against PDF p3 / p4 |
Local dimming zones | 1,152 (32 × 36) | PDF p7 |
LED quantity | 2,304 | PDF p7 |
Power consumption, typical | 124 W | ±5%; PDF p3 |
Power consumption, maximum | 149 W | ±5%; PDF p3 |
Panel interface | LVDS | CN1; PDF p5 |
Panel logic supply | 12 V | CN1; not a complete system input |
Backlight connector supply | 12 V | CN2; PDF p4 / p5; separate from panel logic supply |
Overall dimensions | 976.00 × 564.20 × 46.90 mm | H × V × D; PDF p3; original drawing tolerances apply |
Active area | 941.184 × 529.416 mm | H × V; PDF p3 / p4 |
Operating temperature | 0°C~50°C | Module operating range; PDF p3 |
Storage temperature | -20°C~60°C | PDF p3 |
Display colors | 8-bit(D) & 16.7 Million | PDF p3 |
Response time | 8ms (G to G) (Typ.) | PDF p3 |
Refresh rate | 60Hz (Best) | PDF p3 |
Dimming mode | Manual / Automatic & 25% - 100% | PDF p3; controller integration required |
Weight | 12.5kg ±0.2 | PDF p3 |
Viewing angle | +89/-89(H) & +89/-89(V) (Typ.) (CR≥10) | PDF p3 |
MTBF | 75,000 Hours | Source value; operating conditions apply |
IP rating | None / None | Module; enclosure engineering required |
AD board / touch / speaker | Not included as standard | PDF p2 |
Warranty | 24 months | User-approved warranty |
Representative series image. Mechanical fit follows the selected model’s original drawing.
Follow the selected model’s original CN1 and CN2 definitions. Panel logic and backlight connectors are separate; verify the integration power architecture.
YZ430MDH20D-V12,000 nits / FHD Standard V1
YZ430MDH20D-V1 · Product Brief rev. 1.0 · 2026-01-01 | ||
Parameter | Specification | Conditions / notes |
|---|---|---|
Display size | 43 inch | PDF p2 |
Platform | FHD Standard V1 | Documented platform; no supplier panel code displayed |
Brightness, typical | 2,000 nits | ±5%; PDF p3 |
Brightness, maximum | 3,000 nits | Source maximum ±5%; operating conditions apply |
Backlight Type | DLED Mini-LED / Local Dimming | PDF p2 / p3 |
Resolution | 1920 × 1080 | Numeric pixels verified against PDF p3 / p4 |
Local dimming zones | 1,152 (32 × 36) | PDF p7 |
LED quantity | 2,304 | PDF p7 |
Power consumption, typical | 138 W | ±5%; PDF p3 |
Power consumption, maximum | 166 W | ±5%; PDF p3 |
Panel interface | LVDS | CN1; PDF p5 |
Panel logic supply | 12 V | CN1; not a complete system input |
Backlight connector supply | 12 V | CN2; PDF p4 / p5; separate from panel logic supply |
Overall dimensions | 976.00 × 564.20 × 46.90 mm | H × V × D; PDF p3; original drawing tolerances apply |
Active area | 941.184 × 529.416 mm | H × V; PDF p3 / p4 |
Operating temperature | 0°C~50°C | Module operating range; PDF p3 |
Storage temperature | -20°C~60°C | PDF p3 |
Display colors | 8-bit(D) & 16.7 Million | PDF p3 |
Response time | 8ms (G to G) (Typ.) | PDF p3 |
Refresh rate | 60Hz (Best) | PDF p3 |
Dimming mode | Manual / Automatic & 25% - 100% | PDF p3; controller integration required |
Weight | 12.5kg ±0.2 | PDF p3 |
Viewing angle | +89/-89(H) & +89/-89(V) (Typ.) (CR≥10) | PDF p3 |
MTBF | 75,000 Hours | Source value; operating conditions apply |
IP rating | None / None | Module; enclosure engineering required |
AD board / touch / speaker | Not included as standard | PDF p2 |
Warranty | 24 months | User-approved warranty |
Representative series image. Mechanical fit follows the selected model’s original drawing.
Follow the selected model’s original CN1 and CN2 definitions. Panel logic and backlight connectors are separate; verify the integration power architecture.
YZ430MDH25D-V12,500 nits / FHD Standard V1
YZ430MDH25D-V1 · Product Brief rev. 1.0 · 2026-01-01 | ||
Parameter | Specification | Conditions / notes |
|---|---|---|
Display size | 43 inch | PDF p2 |
Platform | FHD Standard V1 | Documented platform; no supplier panel code displayed |
Brightness, typical | 2,500 nits | ±5%; PDF p3 |
Brightness, maximum | 3,500 nits | Source maximum ±5%; operating conditions apply |
Backlight Type | DLED Mini-LED / Local Dimming | PDF p2 / p3 |
Resolution | 1920 × 1080 | Numeric pixels verified against PDF p3 / p4 |
Local dimming zones | 1,152 (32 × 36) | PDF p7 |
LED quantity | 2,304 | PDF p7 |
Power consumption, typical | 185 W | ±5%; PDF p3 |
Power consumption, maximum | 222 W | ±5%; PDF p3 |
Panel interface | LVDS | CN1; PDF p5 |
Panel logic supply | 12 V | CN1; not a complete system input |
Backlight connector supply | 12 V | CN2; PDF p4 / p5; separate from panel logic supply |
Overall dimensions | 976.00 × 564.20 × 46.90 mm | H × V × D; PDF p3; original drawing tolerances apply |
Active area | 941.184 × 529.416 mm | H × V; PDF p3 / p4 |
Operating temperature | 0°C~50°C | Module operating range; PDF p3 |
Storage temperature | -20°C~60°C | PDF p3 |
Display colors | 8-bit(D) & 16.7 Million | PDF p3 |
Response time | 8ms (G to G) (Typ.) | PDF p3 |
Refresh rate | 60Hz (Best) | PDF p3 |
Dimming mode | Manual / Automatic & 25% - 100% | PDF p3; controller integration required |
Weight | 12.5kg ±0.2 | PDF p3 |
Viewing angle | +89/-89(H) & +89/-89(V) (Typ.) (CR≥10) | PDF p3 |
MTBF | 75,000 Hours | Source value; operating conditions apply |
IP rating | None / None | Module; enclosure engineering required |
AD board / touch / speaker | Not included as standard | PDF p2 |
Warranty | 24 months | User-approved warranty |
Representative series image. Mechanical fit follows the selected model’s original drawing.
Follow the selected model’s original CN1 and CN2 definitions. Panel logic and backlight connectors are separate; verify the integration power architecture.
YZ430MDH30D-V13,000 nits / FHD Standard V1
YZ430MDH30D-V1 · Product Brief rev. 1.0 · 2026-01-01 | ||
Parameter | Specification | Conditions / notes |
|---|---|---|
Display size | 43 inch | PDF p2 |
Platform | FHD Standard V1 | Documented platform; no supplier panel code displayed |
Brightness, typical | 3,000 nits | ±5%; PDF p3 |
Brightness, maximum | 4,000 nits | Source maximum ±5%; operating conditions apply |
Backlight Type | DLED Mini-LED / Local Dimming | PDF p2 / p3 |
Resolution | 1920 × 1080 | Numeric pixels verified against PDF p3 / p4 |
Local dimming zones | 1,152 (32 × 36) | PDF p7 |
LED quantity | 2,304 | PDF p7 |
Power consumption, typical | 247 W | ±5%; PDF p3 |
Power consumption, maximum | 296 W | ±5%; PDF p3 |
Panel interface | LVDS | CN1; PDF p5 |
Panel logic supply | 12 V | CN1; not a complete system input |
Backlight connector supply | 12 V | CN2; PDF p4 / p5; separate from panel logic supply |
Overall dimensions | 976.00 × 564.20 × 46.90 mm | H × V × D; PDF p3; original drawing tolerances apply |
Active area | 941.184 × 529.416 mm | H × V; PDF p3 / p4 |
Operating temperature | 0°C~50°C | Module operating range; PDF p3 |
Storage temperature | -20°C~60°C | PDF p3 |
Display colors | 8-bit(D) & 16.7 Million | PDF p3 |
Response time | 8ms (G to G) (Typ.) | PDF p3 |
Refresh rate | 60Hz (Best) | PDF p3 |
Dimming mode | Manual / Automatic & 25% - 100% | PDF p3; controller integration required |
Weight | 12.5kg ±0.2 | PDF p3 |
Viewing angle | +89/-89(H) & +89/-89(V) (Typ.) (CR≥10) | PDF p3 |
MTBF | 75,000 Hours | Source value; operating conditions apply |
IP rating | None / None | Module; enclosure engineering required |
AD board / touch / speaker | Not included as standard | PDF p2 |
Warranty | 24 months | User-approved warranty |
Representative series image. Mechanical fit follows the selected model’s original drawing.
Follow the selected model’s original CN1 and CN2 definitions. Panel logic and backlight connectors are separate; verify the integration power architecture.
YZ430MDU10D-V11,000 nits / 4K Standard V1
YZ430MDU10D-V1 · Product Brief rev. 1.0 · 2026-01-01 | ||
Parameter | Specification | Conditions / notes |
|---|---|---|
Display size | 43 inch | PDF p2 |
Platform | 4K Standard V1 | Documented platform; no supplier panel code displayed |
Brightness, typical | 1,000 nits | ±5%; PDF p3 |
Brightness, maximum | 2,000 nits | Source maximum ±5%; operating conditions apply |
Backlight Type | DLED Mini-LED / Local Dimming | PDF p2 / p3 |
Resolution | 3840 × 2160 | Numeric pixels verified against PDF p3 / p4 |
Local dimming zones | 1,152 (32 × 36) | PDF p7 |
LED quantity | 2,304 | PDF p7 |
Power consumption, typical | 119 W | ±5%; PDF p3 |
Power consumption, maximum | 143 W | ±5%; PDF p3 |
Panel interface | V-by-One | CN1; PDF p5 |
Panel logic supply | 12 V | CN1; not a complete system input |
Backlight connector supply | 12 V | CN2; PDF p4 / p5; separate from panel logic supply |
Overall dimensions | 976.00 × 564.20 × 46.90 mm | H × V × D; PDF p3; original drawing tolerances apply |
Active area | 941.184 × 529.416 mm | H × V; PDF p3 / p4 |
Operating temperature | 0°C~50°C | Module operating range; PDF p3 |
Storage temperature | -20°C~60°C | PDF p3 |
Display colors | 10-bit(D) & 1.07 Billion | PDF p3 |
Response time | 8ms (G to G) (Typ.) | PDF p3 |
Refresh rate | 60Hz (Best) | PDF p3 |
Dimming mode | Manual / Automatic & 25% - 100% | PDF p3; controller integration required |
Weight | 12.5kg ±0.2 | PDF p3 |
Viewing angle | +89/-89(H) & +89/-89(V) (Typ.) (CR≥10) | PDF p3 |
MTBF | 75,000 Hours | Source value; operating conditions apply |
IP rating | None / None | Module; enclosure engineering required |
AD board / touch / speaker | Not included as standard | PDF p2 |
Warranty | 24 months | User-approved warranty |
Representative series image. Mechanical fit follows the selected model’s original drawing.
Follow the selected model’s original CN1 and CN2 definitions. Panel logic and backlight connectors are separate; verify the integration power architecture.
YZ430MDU15D-V11,500 nits / 4K Standard V1
YZ430MDU15D-V1 · Product Brief rev. 1.0 · 2026-01-01 | ||
Parameter | Specification | Conditions / notes |
|---|---|---|
Display size | 43 inch | PDF p2 |
Platform | 4K Standard V1 | Documented platform; no supplier panel code displayed |
Brightness, typical | 1,500 nits | ±5%; PDF p3 |
Brightness, maximum | 2,500 nits | Source maximum ±5%; operating conditions apply |
Backlight Type | DLED Mini-LED / Local Dimming | PDF p2 / p3 |
Resolution | 3840 × 2160 | Numeric pixels verified against PDF p3 / p4 |
Local dimming zones | 1,152 (32 × 36) | PDF p7 |
LED quantity | 2,304 | PDF p7 |
Power consumption, typical | 200 W | ±5%; PDF p3 |
Power consumption, maximum | 240 W | ±5%; PDF p3 |
Panel interface | V-by-One | CN1; PDF p5 |
Panel logic supply | 12 V | CN1; not a complete system input |
Backlight connector supply | 12 V | CN2; PDF p4 / p5; separate from panel logic supply |
Overall dimensions | 976.00 × 564.20 × 46.90 mm | H × V × D; PDF p3; original drawing tolerances apply |
Active area | 941.184 × 529.416 mm | H × V; PDF p3 / p4 |
Operating temperature | 0°C~50°C | Module operating range; PDF p3 |
Storage temperature | -20°C~60°C | PDF p3 |
Display colors | 10-bit(D) & 1.07 Billion | PDF p3 |
Response time | 8ms (G to G) (Typ.) | PDF p3 |
Refresh rate | 60Hz (Best) | PDF p3 |
Dimming mode | Manual / Automatic & 25% - 100% | PDF p3; controller integration required |
Weight | 12.5kg ±0.2 | PDF p3 |
Viewing angle | +89/-89(H) & +89/-89(V) (Typ.) (CR≥10) | PDF p3 |
MTBF | 75,000 Hours | Source value; operating conditions apply |
IP rating | None / None | Module; enclosure engineering required |
AD board / touch / speaker | Not included as standard | PDF p2 |
Warranty | 24 months | User-approved warranty |
Representative series image. Mechanical fit follows the selected model’s original drawing.
Follow the selected model’s original CN1 and CN2 definitions. Panel logic and backlight connectors are separate; verify the integration power architecture.
YZ430MDU20D-V12,000 nits / 4K Standard V1
YZ430MDU20D-V1 · Product Brief rev. 1.0 · 2026-01-01 | ||
Parameter | Specification | Conditions / notes |
|---|---|---|
Display size | 43 inch | PDF p2 |
Platform | 4K Standard V1 | Documented platform; no supplier panel code displayed |
Brightness, typical | 2,000 nits | ±5%; PDF p3 |
Brightness, maximum | 3,000 nits | Source maximum ±5%; operating conditions apply |
Backlight Type | DLED Mini-LED / Local Dimming | PDF p2 / p3 |
Resolution | 3840 × 2160 | Numeric pixels verified against PDF p3 / p4 |
Local dimming zones | 1,152 (32 × 36) | PDF p7 |
LED quantity | 2,304 | PDF p7 |
Power consumption, typical | 220 W | ±5%; PDF p3 |
Power consumption, maximum | 264 W | ±5%; PDF p3 |
Panel interface | V-by-One | CN1; PDF p5 |
Panel logic supply | 12 V | CN1; not a complete system input |
Backlight connector supply | 12 V | CN2; PDF p4 / p5; separate from panel logic supply |
Overall dimensions | 976.00 × 564.20 × 46.90 mm | H × V × D; PDF p3; original drawing tolerances apply |
Active area | 941.184 × 529.416 mm | H × V; PDF p3 / p4 |
Operating temperature | 0°C~50°C | Module operating range; PDF p3 |
Storage temperature | -20°C~60°C | PDF p3 |
Display colors | 10-bit(D) & 1.07 Billion | PDF p3 |
Response time | 8ms (G to G) (Typ.) | PDF p3 |
Refresh rate | 60Hz (Best) | PDF p3 |
Dimming mode | Manual / Automatic & 25% - 100% | PDF p3; controller integration required |
Weight | 12.5kg ±0.2 | PDF p3 |
Viewing angle | +89/-89(H) & +89/-89(V) (Typ.) (CR≥10) | PDF p3 |
MTBF | 75,000 Hours | Source value; operating conditions apply |
IP rating | None / None | Module; enclosure engineering required |
AD board / touch / speaker | Not included as standard | PDF p2 |
Warranty | 24 months | User-approved warranty |
Representative series image. Mechanical fit follows the selected model’s original drawing.
Follow the selected model’s original CN1 and CN2 definitions. Panel logic and backlight connectors are separate; verify the integration power architecture.
YZ430MDU10DH-V11,000 nits / 4K Wide-T V1
YZ430MDU10DH-V1 · Product Brief rev. 1.0 · 2026-01-01 | ||
Parameter | Specification | Conditions / notes |
|---|---|---|
Display size | 43 inch | PDF p2 |
Platform | 4K Wide-T V1 | Documented platform; no supplier panel code displayed |
Brightness, typical | 1,000 nits | ±5%; PDF p3 |
Brightness, maximum | 2,000 nits | Source maximum ±5%; operating conditions apply |
Backlight Type | DLED Mini-LED / Local Dimming | PDF p2 / p3 |
Resolution | 3840 × 2160 | Numeric pixels verified against PDF p3 / p4 |
Local dimming zones | 1,152 (32 × 36) | PDF p7 |
LED quantity | 2,304 | PDF p7 |
Power consumption, typical | 130 W | ±5%; PDF p3 |
Power consumption, maximum | 156 W | ±5%; PDF p3 |
Panel interface | V-by-One | CN1; PDF p5 |
Panel logic supply | 12 V | CN1; not a complete system input |
Backlight connector supply | 12 V | CN2; PDF p4 / p5; separate from panel logic supply |
Overall dimensions | 976.00 × 564.20 × 46.90 mm | H × V × D; PDF p3; original drawing tolerances apply |
Active area | 941.184 × 529.416 mm | H × V; PDF p3 / p4 |
Operating temperature | 0°C~50°C | Module operating range; PDF p3 |
Storage temperature | -20°C~60°C | PDF p3 |
Display colors | 10-bit(D) & 1.07 Billion | PDF p3 |
Response time | 9ms (G to G) (Typ.) | PDF p3 |
Refresh rate | 60Hz (Best) | PDF p3 |
Dimming mode | Manual / Automatic & 25% - 100% | PDF p3; controller integration required |
Weight | 12.5kg ±0.2 | PDF p3 |
Viewing angle | +89/-89(H) & +89/-89(V) (Typ.) (CR≥10) | PDF p3 |
MTBF | 75,000 Hours | Source value; operating conditions apply |
IP rating | None / None | Module; enclosure engineering required |
AD board / touch / speaker | Not included as standard | PDF p2 |
Warranty | 24 months | User-approved warranty |
Representative series image. Mechanical fit follows the selected model’s original drawing.
Follow the selected model’s original CN1 and CN2 definitions. Panel logic and backlight connectors are separate; verify the integration power architecture.
YZ430MDU15DH-V11,500 nits / 4K Wide-T V1
YZ430MDU15DH-V1 · Product Brief rev. 1.0 · 2026-01-01 | ||
Parameter | Specification | Conditions / notes |
|---|---|---|
Display size | 43 inch | PDF p2 |
Platform | 4K Wide-T V1 | Documented platform; no supplier panel code displayed |
Brightness, typical | 1,500 nits | ±5%; PDF p3 |
Brightness, maximum | 2,500 nits | Source maximum ±5%; operating conditions apply |
Backlight Type | DLED Mini-LED / Local Dimming | PDF p2 / p3 |
Resolution | 3840 × 2160 | Numeric pixels verified against PDF p3 / p4 |
Local dimming zones | 1,152 (32 × 36) | PDF p7 |
LED quantity | 2,304 | PDF p7 |
Power consumption, typical | 219 W | ±5%; PDF p3 |
Power consumption, maximum | 263 W | ±5%; PDF p3 |
Panel interface | V-by-One | CN1; PDF p5 |
Panel logic supply | 12 V | CN1; not a complete system input |
Backlight connector supply | 12 V | CN2; PDF p4 / p5; separate from panel logic supply |
Overall dimensions | 976.00 × 564.20 × 46.90 mm | H × V × D; PDF p3; original drawing tolerances apply |
Active area | 941.184 × 529.416 mm | H × V; PDF p3 / p4 |
Operating temperature | 0°C~50°C | Module operating range; PDF p3 |
Storage temperature | -20°C~60°C | PDF p3 |
Display colors | 10-bit(D) & 1.07 Billion | PDF p3 |
Response time | 9ms (G to G) (Typ.) | PDF p3 |
Refresh rate | 60Hz (Best) | PDF p3 |
Dimming mode | Manual / Automatic & 25% - 100% | PDF p3; controller integration required |
Weight | 12.5kg ±0.2 | PDF p3 |
Viewing angle | +89/-89(H) & +89/-89(V) (Typ.) (CR≥10) | PDF p3 |
MTBF | 75,000 Hours | Source value; operating conditions apply |
IP rating | None / None | Module; enclosure engineering required |
AD board / touch / speaker | Not included as standard | PDF p2 |
Warranty | 24 months | User-approved warranty |
Representative series image. Mechanical fit follows the selected model’s original drawing.
Follow the selected model’s original CN1 and CN2 definitions. Panel logic and backlight connectors are separate; verify the integration power architecture.
YZ430MDU20DH-V12,000 nits / 4K Wide-T V1
YZ430MDU20DH-V1 · Product Brief rev. 1.0 · 2026-01-01 | ||
Parameter | Specification | Conditions / notes |
|---|---|---|
Display size | 43 inch | PDF p2 |
Platform | 4K Wide-T V1 | Documented platform; no supplier panel code displayed |
Brightness, typical | 2,000 nits | ±5%; PDF p3 |
Brightness, maximum | 3,000 nits | Source maximum ±5%; operating conditions apply |
Backlight Type | DLED Mini-LED / Local Dimming | PDF p2 / p3 |
Resolution | 3840 × 2160 | Numeric pixels verified against PDF p3 / p4 |
Local dimming zones | 1,152 (32 × 36) | PDF p7 |
LED quantity | 2,304 | PDF p7 |
Power consumption, typical | 243 W | ±5%; PDF p3 |
Power consumption, maximum | 292 W | ±5%; PDF p3 |
Panel interface | V-by-One | CN1; PDF p5 |
Panel logic supply | 12 V | CN1; not a complete system input |
Backlight connector supply | 12 V | CN2; PDF p4 / p5; separate from panel logic supply |
Overall dimensions | 976.00 × 564.20 × 46.90 mm | H × V × D; PDF p3; original drawing tolerances apply |
Active area | 941.184 × 529.416 mm | H × V; PDF p3 / p4 |
Operating temperature | 0°C~50°C | Module operating range; PDF p3 |
Storage temperature | -20°C~60°C | PDF p3 |
Display colors | 10-bit(D) & 1.07 Billion | PDF p3 |
Response time | 9ms (G to G) (Typ.) | PDF p3 |
Refresh rate | 60Hz (Best) | PDF p3 |
Dimming mode | Manual / Automatic & 25% - 100% | PDF p3; controller integration required |
Weight | 12.5kg ±0.2 | PDF p3 |
Viewing angle | +89/-89(H) & +89/-89(V) (Typ.) (CR≥10) | PDF p3 |
MTBF | 75,000 Hours | Source value; operating conditions apply |
IP rating | None / None | Module; enclosure engineering required |
AD board / touch / speaker | Not included as standard | PDF p2 |
Warranty | 24 months | User-approved warranty |
Representative series image. Mechanical fit follows the selected model’s original drawing.
Follow the selected model’s original CN1 and CN2 definitions. Panel logic and backlight connectors are separate; verify the integration power architecture.
FIT BEFORE INTEGRATION
Mechanical & Mounting
YZ430MDH15DH-V0
Contact our team for the selected outline and mounting drawing.
Model-specific source: English PDF p4. CAD file availability requires confirmation.
Verify the complete outline.
Overall Dimensions · H × V × D
976.00 × 564.20 × 46.90 mm
Active Area · H × V
940.896 × 529.254 mm
Nominal Thickness · typical
46.90 mm
Mounting notes
Use the selected original outline, rear mounting view, connector locations and clearance. Series photographs are representative, not model-level mounting evidence.
Open Drawing Image ↗Open Drawing in PDF ↗
CONNECTOR / PIN DEFINITION
Panel & Backlight Integration
Selected interface LVDS
Contact our team for the selected panel and backlight pin definitions.
Original panel, continuation and backlight definitions are mapped separately from PDF p5.
LVDS panel interface
Use CN1 signal timing and the complete pin definition. Connector appearance does not prove compatibility.
Separate electrical supplies
Panel logic: 12 V. Backlight connector supply: 12 V.
Follow the selected model’s original CN1 and CN2 definitions. Panel logic and backlight connectors are separate; verify the integration power architecture.
Controller integration
No AD board or ready-to-use HDMI / DP system input is included as standard. Confirm the power architecture, harness and dimming control before connection.
Open Pin Definition in PDF ↗
MINI-LED / LOCAL DIMMING
One backlight technology. Documented platforms.
DLED Mini-LED across all 16 configurations.
1,152 local dimming zones
2,304 LEDs
The source appendix specifies 32 × 36 zones and 2,304 LEDs. Local brightness control depends on the controller and image content; no unverified energy-saving percentage is claimed.
FHD & 4K integration
Four documented platforms
5 FHD Hi-Tni V0; 5 FHD Standard V1; 3 4K Standard V1; 3 4K Wide-T V1. These are documented configurations. Follow the selected electrical and mechanical definitions.
TECHNICAL DOCUMENTS
Downloads by Model
Documents follow the selected configuration.
SELECTED MODEL
YZ430MDH15DH-V0
Product Brief · Specifications + Drawing + Pin Definition
Revision
1.0
Date
2026-01-01
Download EN PDF ↓
Datasheet currently unavailable
View documents for all configurations
Documents for all 16 configurations | ||||
Model | Document | Revision | Date | PDF / Release status |
|---|---|---|---|---|
YZ430MDH10DH-V0 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
YZ430MDH15DH-V0 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
YZ430MDH20DH-V0 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
YZ430MDH25DH-V0 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
YZ430MDH30DH-V0 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
YZ430MDH10D-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
YZ430MDH15D-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
YZ430MDH20D-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
YZ430MDH25D-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
YZ430MDH30D-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
YZ430MDU10D-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
YZ430MDU15D-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
YZ430MDU20D-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
YZ430MDU10DH-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
YZ430MDU15DH-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
YZ430MDU20DH-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
Datasheet availability varies by configuration. Model-specific engineering images are available above.
ENGINEERING NOTES / FAQ
Clear answers before RFQ.
Customization options depend on your project requirements. Contact our team to discuss integration and delivery requirements.
Related technology: sunlight readability →Related solutions: bright-light integration →
Is this a complete outdoor monitor?
No. This is an LCD module for integration. An AD board, touch system, speaker and IP-rated enclosure are not included as standard.
What local dimming configuration is documented?
The 43-inch source appendix specifies 1,152 local dimming zones and 2,304 LEDs. Controller compatibility depends on the intended image content.
Which interfaces are used?
FHD models use LVDS and 4K models use V-by-One. Use the complete selected model pin definition.
What supply does the module require?
The checked CN1 panel logic and CN2 backlight definitions specify 12 V. These are separate connectors; confirm the complete system power architecture before integration.
Are the images model-specific?
Product, Rear and Side are current supplier series representative images. Rear and Side may be shared across sizes. Exact fit follows the selected model’s verified original drawings.
How do I request documents and project support?
Choose a model and send the operating environment, controller and installation requirements. Contact our team for current documentation.
REQUEST A QUOTE
Specify the display. Define the project.
Selected model: YZ430MDH15DH-V0
Send your installation conditions, controller needs and mechanical requirements.
YZD Solutions / YuanZhong DisplayHigh brightness LCD display modulesBack to top ↑
