55″ Mini-LED / Local Dimming LCD Module Series
15 documented FHD and 4K configurations with 1,000–3,000 nits typical brightness, 1,152 local dimming zones and 4,608 LEDs. An LCD module for display integration; an AD board and IP-rated enclosure are not included as standard.
Available Configurations Compare all 15 ↓YZ550MDH10DH-V0 · 1,000 nits · FHD Wide-TYZ550MDH15DH-V0 · 1,500 nits · FHD Wide-TYZ550MDH20DH-V0 · 2,000 nits · FHD Wide-TYZ550MDH25DH-V0 · 2,500 nits · FHD Wide-TYZ550MDH30DH-V0 · 3,000 nits · FHD Wide-TYZ550MDU10D-V1 · 1,000 nits · 4K StandardYZ550MDU15D-V1 · 1,500 nits · 4K StandardYZ550MDU20D-V1 · 2,000 nits · 4K StandardYZ550MDU25D-V1 · 2,500 nits · 4K StandardYZ550MDU30D-V1 · 3,000 nits · 4K StandardYZ550MDU10DH-V1 · 1,000 nits · 4K Wide-TYZ550MDU15DH-V1 · 1,500 nits · 4K Wide-TYZ550MDU20DH-V1 · 2,000 nits · 4K Wide-TYZ550MDU25DH-V1 · 2,500 nits · 4K Wide-TYZ550MDU30DH-V1 · 3,000 nits · 4K Wide-T
Selected Model YZ550MDH15DH-V0
Brightness
1,500 nits
Backlight
DLED / Local Dimming
Resolution
1920 × 1080
Panel Interface
LVDS
Dimensions
1245.00 × 716.00 × 40.00 mm
Operating Temperature
-20°C~70°C
Brightness: typical ±5%. Values above apply to the selected variant, not the entire series.
Request a Quote ↗Compare Configurations ↓
FHD backlight supply requires engineering confirmation before electrical integration.
ConfigurationsSpecificationsMechanicalBacklight OptionsDownloadsEngineering RFQ ↗
CHOOSE YOUR CONFIGURATION
Variant Comparison
15 documented configurations. Select a model to update the specifications.
Brightness All 1000 nits 1500 nits 2000 nits 2500 nits 3000 nits TypeAll platformsFHD4KReset filters
15 of 15 configurations
Available Configurations · brightness is typical ±5%; dimensions H × V × D, typical | ||||||
YuanZhong Model | Brightness | Backlight | Resolution | Panel Interface | Dimensions | Datasheet |
|---|---|---|---|---|---|---|
YZ550MDH10DH-V0 | 1,000 nits | DLED / Local Dimming | 1920 × 1080 | LVDS | 1245.00 × 716.00 × 40.00 mm | EN PDF ↗ |
YZ550MDH15DH-V0 | 1,500 nits | DLED / Local Dimming | 1920 × 1080 | LVDS | 1245.00 × 716.00 × 40.00 mm | EN PDF ↗ |
YZ550MDH20DH-V0 | 2,000 nits | DLED / Local Dimming | 1920 × 1080 | LVDS | 1245.00 × 716.00 × 40.00 mm | EN PDF ↗ |
YZ550MDH25DH-V0 | 2,500 nits | DLED / Local Dimming | 1920 × 1080 | LVDS | 1245.00 × 716.00 × 40.00 mm | EN PDF ↗ |
YZ550MDH30DH-V0 | 3,000 nits | DLED / Local Dimming | 1920 × 1080 | LVDS | 1245.00 × 716.00 × 40.00 mm | EN PDF ↗ |
YZ550MDU10D-V1 | 1,000 nits | DLED / Local Dimming | 3840 × 2160 | V-by-One | 1245.00 × 716.00 × 40.00 mm | EN PDF ↗ |
YZ550MDU15D-V1 | 1,500 nits | DLED / Local Dimming | 3840 × 2160 | V-by-One | 1245.00 × 716.00 × 40.00 mm | EN PDF ↗ |
YZ550MDU20D-V1 | 2,000 nits | DLED / Local Dimming | 3840 × 2160 | V-by-One | 1245.00 × 716.00 × 40.00 mm | EN PDF ↗ |
YZ550MDU25D-V1 | 2,500 nits | DLED / Local Dimming | 3840 × 2160 | V-by-One | 1245.00 × 716.00 × 40.00 mm | EN PDF ↗ |
YZ550MDU30D-V1 | 3,000 nits | DLED / Local Dimming | 3840 × 2160 | V-by-One | 1245.00 × 716.00 × 40.00 mm | EN PDF ↗ |
YZ550MDU10DH-V1 | 1,000 nits | DLED / Local Dimming | 3840 × 2160 | V-by-One | 1245.00 × 716.00 × 40.00 mm | EN PDF ↗ |
YZ550MDU15DH-V1 | 1,500 nits | DLED / Local Dimming | 3840 × 2160 | V-by-One | 1245.00 × 716.00 × 40.00 mm | EN PDF ↗ |
YZ550MDU20DH-V1 | 2,000 nits | DLED / Local Dimming | 3840 × 2160 | V-by-One | 1245.00 × 716.00 × 40.00 mm | EN PDF ↗ |
YZ550MDU25DH-V1 | 2,500 nits | DLED / Local Dimming | 3840 × 2160 | V-by-One | 1245.00 × 716.00 × 40.00 mm | EN PDF ↗ |
YZ550MDU30DH-V1 | 3,000 nits | DLED / Local Dimming | 3840 × 2160 | V-by-One | 1245.00 × 716.00 × 40.00 mm | EN PDF ↗ |
No documented model matches these filters. | ||||||
Configuration availability and mechanical requirements depend on the selected model.
BEST FOR / HOW TO CHOOSE
Start with the integration.
Select a documented model for commercial display integration. Suitability depends on the enclosure, ambient light, image content and thermal design.
01
Brightness & image content
Typical brightness ranges from 1,000 to 3,000 nits. Maximum values are model-specific. Local dimming performance depends on image content and controller integration.
02
Resolution & interface
FHD uses LVDS; 4K uses V-by-One. An AD board is not included as standard. Match controller timing and the complete selected pin definition.
03
Thermal & mechanical fit
Compare the three documented operating-temperature platforms. The module requires an engineered enclosure, thermal management and electrical integration.
MODEL-SPECIFIC DATA
Detailed Specifications
Selected YZ550MDH15DH-V0
YZ550MDH10DH-V01,000 nits / FHD Wide-T
YZ550MDH10DH-V0 · Product Brief rev. 1.0 · 2026-01-01 | ||
Parameter | Specification | Conditions / notes |
|---|---|---|
Display size | 55 inch | PDF p2 |
Platform | FHD Wide-T | Documented configuration; no supplier panel code displayed |
Brightness, typical | 1,000 nits | ±5%; PDF p3 |
Brightness, maximum | 2,000 nits | Source maximum ±5%; test conditions require engineering confirmation |
Backlight Type | DLED Mini-LED / Local Dimming | PDF p2 / p3 |
Resolution | 1920 × 1080 | Numeric pixels verified against p3 and drawing p4 |
Local dimming zones | 1,152 (32 × 36) | PDF p7 |
LED quantity | 4,608 | PDF p2 / p7 |
Power consumption, typical | 161 W | ±5%; PDF p3 |
Power consumption, maximum | 193 W | ±5%; PDF p3 |
Panel interface | LVDS | Original CN1 definition, PDF p5 |
Panel logic supply | 12 V | Panel connector; not a complete system power specification |
Backlight connector supply | To be confirmed | Engineering confirmation required: source drawing and pin table disagree |
Overall dimensions | 1245.00 × 716.00 × 40.00 mm | H × V × D, typical; PDF p3 / p4 |
Active area | 1209.60 × 680.40 mm | H × V; PDF p3 |
Operating temperature | -20°C~70°C | Module operating range; PDF p3 |
Storage temperature | -30°C~80°C | PDF p3 |
Display colors | 8-bit(D) & 16.7 Million | PDF p3 |
Response time | 14ms (G to G) (Typ.) | PDF p3 |
Refresh rate | 60Hz (Best) | PDF p3 |
Dimming mode | Manual / Automatic & 30% - 100% | PDF p3; controller integration required |
Weight | 15.5kg ±0.2 | PDF p3 |
Viewing angle | +89/-89(H) & +89/-89(V) (Typ.) (CR≥10) | PDF p3 |
MTBF | 75,000 Hours | Source value; operating conditions apply |
IP rating | None / None | Module is not a complete IP-rated outdoor monitor |
AD board / touch / speaker | Not included as standard | PDF p2; project options require confirmation |
Warranty | 24 months | Approved product warranty |

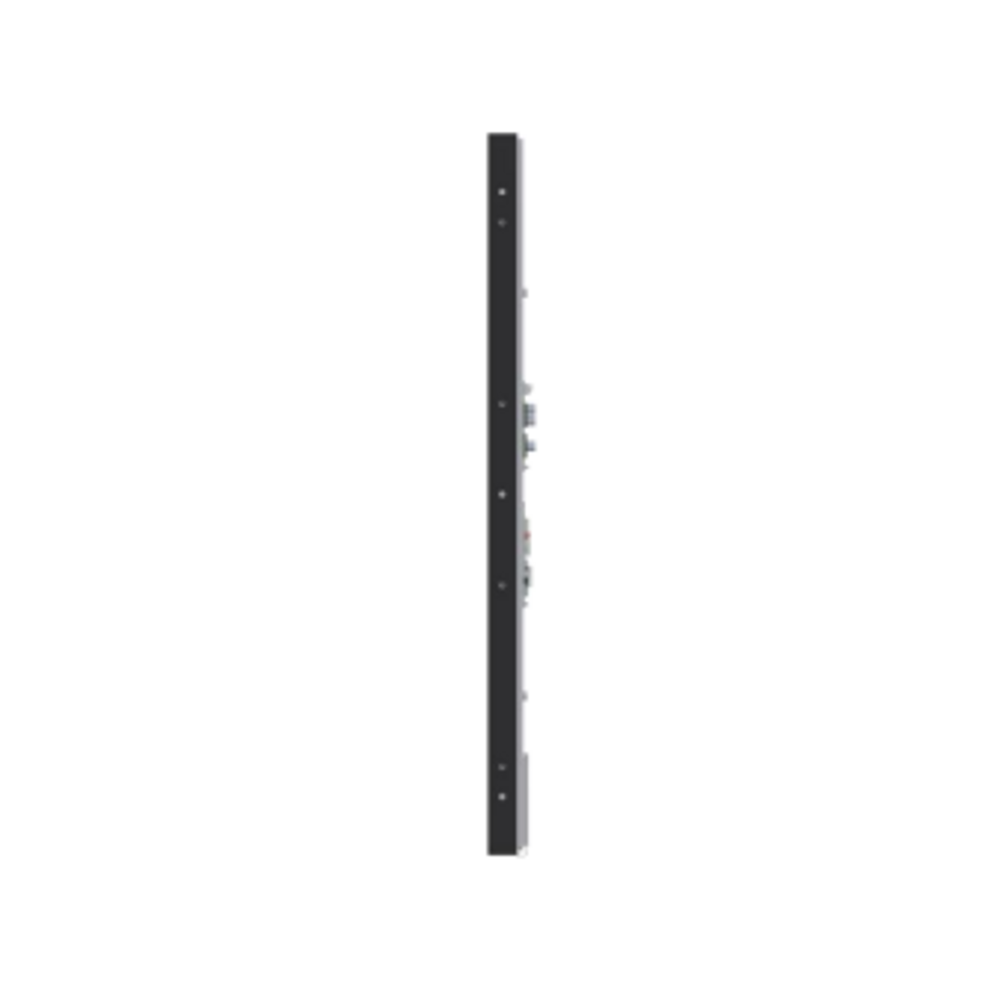

Series representative side image. Mechanical fit follows the selected model’s drawing.
FHD backlight supply requires engineering confirmation before electrical integration.
YZ550MDH15DH-V01,500 nits / FHD Wide-T
YZ550MDH15DH-V0 · Product Brief rev. 1.0 · 2026-01-01 | ||
Parameter | Specification | Conditions / notes |
|---|---|---|
Display size | 55 inch | PDF p2 |
Platform | FHD Wide-T | Documented configuration; no supplier panel code displayed |
Brightness, typical | 1,500 nits | ±5%; PDF p3 |
Brightness, maximum | 2,500 nits | Source maximum ±5%; test conditions require engineering confirmation |
Backlight Type | DLED Mini-LED / Local Dimming | PDF p2 / p3 |
Resolution | 1920 × 1080 | Numeric pixels verified against p3 and drawing p4 |
Local dimming zones | 1,152 (32 × 36) | PDF p7 |
LED quantity | 4,608 | PDF p2 / p7 |
Power consumption, typical | 211 W | ±5%; PDF p3 |
Power consumption, maximum | 253 W | ±5%; PDF p3 |
Panel interface | LVDS | Original CN1 definition, PDF p5 |
Panel logic supply | 12 V | Panel connector; not a complete system power specification |
Backlight connector supply | To be confirmed | Engineering confirmation required: source drawing and pin table disagree |
Overall dimensions | 1245.00 × 716.00 × 40.00 mm | H × V × D, typical; PDF p3 / p4 |
Active area | 1209.60 × 680.40 mm | H × V; PDF p3 |
Operating temperature | -20°C~70°C | Module operating range; PDF p3 |
Storage temperature | -30°C~80°C | PDF p3 |
Display colors | 8-bit(D) & 16.7 Million | PDF p3 |
Response time | 14ms (G to G) (Typ.) | PDF p3 |
Refresh rate | 60Hz (Best) | PDF p3 |
Dimming mode | Manual / Automatic & 30% - 100% | PDF p3; controller integration required |
Weight | 15.5kg ±0.2 | PDF p3 |
Viewing angle | +89/-89(H) & +89/-89(V) (Typ.) (CR≥10) | PDF p3 |
MTBF | 75,000 Hours | Source value; operating conditions apply |
IP rating | None / None | Module is not a complete IP-rated outdoor monitor |
AD board / touch / speaker | Not included as standard | PDF p2; project options require confirmation |
Warranty | 24 months | Approved product warranty |
Series representative side image. Mechanical fit follows the selected model’s drawing.
FHD backlight supply requires engineering confirmation before electrical integration.
YZ550MDH20DH-V02,000 nits / FHD Wide-T
YZ550MDH20DH-V0 · Product Brief rev. 1.0 · 2026-01-01 | ||
Parameter | Specification | Conditions / notes |
|---|---|---|
Display size | 55 inch | PDF p2 |
Platform | FHD Wide-T | Documented configuration; no supplier panel code displayed |
Brightness, typical | 2,000 nits | ±5%; PDF p3 |
Brightness, maximum | 3,000 nits | Source maximum ±5%; test conditions require engineering confirmation |
Backlight Type | DLED Mini-LED / Local Dimming | PDF p2 / p3 |
Resolution | 1920 × 1080 | Numeric pixels verified against p3 and drawing p4 |
Local dimming zones | 1,152 (32 × 36) | PDF p7 |
LED quantity | 4,608 | PDF p2 / p7 |
Power consumption, typical | 261 W | ±5%; PDF p3 |
Power consumption, maximum | 313 W | ±5%; PDF p3 |
Panel interface | LVDS | Original CN1 definition, PDF p5 |
Panel logic supply | 12 V | Panel connector; not a complete system power specification |
Backlight connector supply | To be confirmed | Engineering confirmation required: source drawing and pin table disagree |
Overall dimensions | 1245.00 × 716.00 × 40.00 mm | H × V × D, typical; PDF p3 / p4 |
Active area | 1209.60 × 680.40 mm | H × V; PDF p3 |
Operating temperature | -20°C~70°C | Module operating range; PDF p3 |
Storage temperature | -30°C~80°C | PDF p3 |
Display colors | 8-bit(D) & 16.7 Million | PDF p3 |
Response time | 14ms (G to G) (Typ.) | PDF p3 |
Refresh rate | 60Hz (Best) | PDF p3 |
Dimming mode | Manual / Automatic & 30% - 100% | PDF p3; controller integration required |
Weight | 15.5kg ±0.2 | PDF p3 |
Viewing angle | +89/-89(H) & +89/-89(V) (Typ.) (CR≥10) | PDF p3 |
MTBF | 75,000 Hours | Source value; operating conditions apply |
IP rating | None / None | Module is not a complete IP-rated outdoor monitor |
AD board / touch / speaker | Not included as standard | PDF p2; project options require confirmation |
Warranty | 24 months | Approved product warranty |
Series representative side image. Mechanical fit follows the selected model’s drawing.
FHD backlight supply requires engineering confirmation before electrical integration.
YZ550MDH25DH-V02,500 nits / FHD Wide-T
YZ550MDH25DH-V0 · Product Brief rev. 1.0 · 2026-01-01 | ||
Parameter | Specification | Conditions / notes |
|---|---|---|
Display size | 55 inch | PDF p2 |
Platform | FHD Wide-T | Documented configuration; no supplier panel code displayed |
Brightness, typical | 2,500 nits | ±5%; PDF p3 |
Brightness, maximum | 3,500 nits | Source maximum ±5%; test conditions require engineering confirmation |
Backlight Type | DLED Mini-LED / Local Dimming | PDF p2 / p3 |
Resolution | 1920 × 1080 | Numeric pixels verified against p3 and drawing p4 |
Local dimming zones | 1,152 (32 × 36) | PDF p7 |
LED quantity | 4,608 | PDF p2 / p7 |
Power consumption, typical | 311 W | ±5%; PDF p3 |
Power consumption, maximum | 373 W | ±5%; PDF p3 |
Panel interface | LVDS | Original CN1 definition, PDF p5 |
Panel logic supply | 12 V | Panel connector; not a complete system power specification |
Backlight connector supply | To be confirmed | Engineering confirmation required: source drawing and pin table disagree |
Overall dimensions | 1245.00 × 716.00 × 40.00 mm | H × V × D, typical; PDF p3 / p4 |
Active area | 1209.60 × 680.40 mm | H × V; PDF p3 |
Operating temperature | -20°C~70°C | Module operating range; PDF p3 |
Storage temperature | -30°C~80°C | PDF p3 |
Display colors | 8-bit(D) & 16.7 Million | PDF p3 |
Response time | 14ms (G to G) (Typ.) | PDF p3 |
Refresh rate | 60Hz (Best) | PDF p3 |
Dimming mode | Manual / Automatic & 30% - 100% | PDF p3; controller integration required |
Weight | 15.5kg ±0.2 | PDF p3 |
Viewing angle | +89/-89(H) & +89/-89(V) (Typ.) (CR≥10) | PDF p3 |
MTBF | 75,000 Hours | Source value; operating conditions apply |
IP rating | None / None | Module is not a complete IP-rated outdoor monitor |
AD board / touch / speaker | Not included as standard | PDF p2; project options require confirmation |
Warranty | 24 months | Approved product warranty |
Series representative side image. Mechanical fit follows the selected model’s drawing.
FHD backlight supply requires engineering confirmation before electrical integration.
YZ550MDH30DH-V03,000 nits / FHD Wide-T
YZ550MDH30DH-V0 · Product Brief rev. 1.0 · 2026-01-01 | ||
Parameter | Specification | Conditions / notes |
|---|---|---|
Display size | 55 inch | PDF p2 |
Platform | FHD Wide-T | Documented configuration; no supplier panel code displayed |
Brightness, typical | 3,000 nits | ±5%; PDF p3 |
Brightness, maximum | 4,000 nits | Source maximum ±5%; test conditions require engineering confirmation |
Backlight Type | DLED Mini-LED / Local Dimming | PDF p2 / p3 |
Resolution | 1920 × 1080 | Numeric pixels verified against p3 and drawing p4 |
Local dimming zones | 1,152 (32 × 36) | PDF p7 |
LED quantity | 4,608 | PDF p2 / p7 |
Power consumption, typical | 381 W | ±5%; PDF p3 |
Power consumption, maximum | 457 W | ±5%; PDF p3 |
Panel interface | LVDS | Original CN1 definition, PDF p5 |
Panel logic supply | 12 V | Panel connector; not a complete system power specification |
Backlight connector supply | To be confirmed | Engineering confirmation required: source drawing and pin table disagree |
Overall dimensions | 1245.00 × 716.00 × 40.00 mm | H × V × D, typical; PDF p3 / p4 |
Active area | 1209.60 × 680.40 mm | H × V; PDF p3 |
Operating temperature | -20°C~70°C | Module operating range; PDF p3 |
Storage temperature | -30°C~80°C | PDF p3 |
Display colors | 8-bit(D) & 16.7 Million | PDF p3 |
Response time | 14ms (G to G) (Typ.) | PDF p3 |
Refresh rate | 60Hz (Best) | PDF p3 |
Dimming mode | Manual / Automatic & 30% - 100% | PDF p3; controller integration required |
Weight | 15.5kg ±0.2 | PDF p3 |
Viewing angle | +89/-89(H) & +89/-89(V) (Typ.) (CR≥10) | PDF p3 |
MTBF | 75,000 Hours | Source value; operating conditions apply |
IP rating | None / None | Module is not a complete IP-rated outdoor monitor |
AD board / touch / speaker | Not included as standard | PDF p2; project options require confirmation |
Warranty | 24 months | Approved product warranty |
Series representative side image. Mechanical fit follows the selected model’s drawing.
FHD backlight supply requires engineering confirmation before electrical integration.
YZ550MDU10D-V11,000 nits / 4K Standard
YZ550MDU10D-V1 · Product Brief rev. 1.0 · 2026-01-01 | ||
Parameter | Specification | Conditions / notes |
|---|---|---|
Display size | 55 inch | PDF p2 |
Platform | 4K Standard | Documented configuration; no supplier panel code displayed |
Brightness, typical | 1,000 nits | ±5%; PDF p3 |
Brightness, maximum | 2,000 nits | Source maximum ±5%; test conditions require engineering confirmation |
Backlight Type | DLED Mini-LED / Local Dimming | PDF p2 / p3 |
Resolution | 3840 × 2160 | Numeric pixels verified against p3 and drawing p4 |
Local dimming zones | 1,152 (32 × 36) | PDF p7 |
LED quantity | 4,608 | PDF p2 / p7 |
Power consumption, typical | 197 W | ±5%; PDF p3 |
Power consumption, maximum | 236 W | ±5%; PDF p3 |
Panel interface | V-by-One | Original CN1 definition, PDF p5 |
Panel logic supply | 12 V | Panel connector; not a complete system power specification |
Backlight connector supply | 24 V | CN2 24 V, PDF p4 / p5; separate from panel logic supply |
Overall dimensions | 1245.00 × 716.00 × 40.00 mm | H × V × D, typical; PDF p3 / p4 |
Active area | 1209.60 × 680.40 mm | H × V; PDF p3 |
Operating temperature | 0°C~50°C | Module operating range; PDF p3 |
Storage temperature | -20°C~60°C | PDF p3 |
Display colors | 10-bit(D) & 1.07 Billion | PDF p3 |
Response time | 8ms (G to G) (Typ.) | PDF p3 |
Refresh rate | 60Hz (Best) | PDF p3 |
Dimming mode | Manual / Automatic & 30% - 100% | PDF p3; controller integration required |
Weight | 15.5kg ±0.2 | PDF p3 |
Viewing angle | +89/-89(H) & +89/-89(V) (Typ.) (CR≥10) | PDF p3 |
MTBF | 75,000 Hours | Source value; operating conditions apply |
IP rating | None / None | Module is not a complete IP-rated outdoor monitor |
AD board / touch / speaker | Not included as standard | PDF p2; project options require confirmation |
Warranty | 24 months | Approved product warranty |

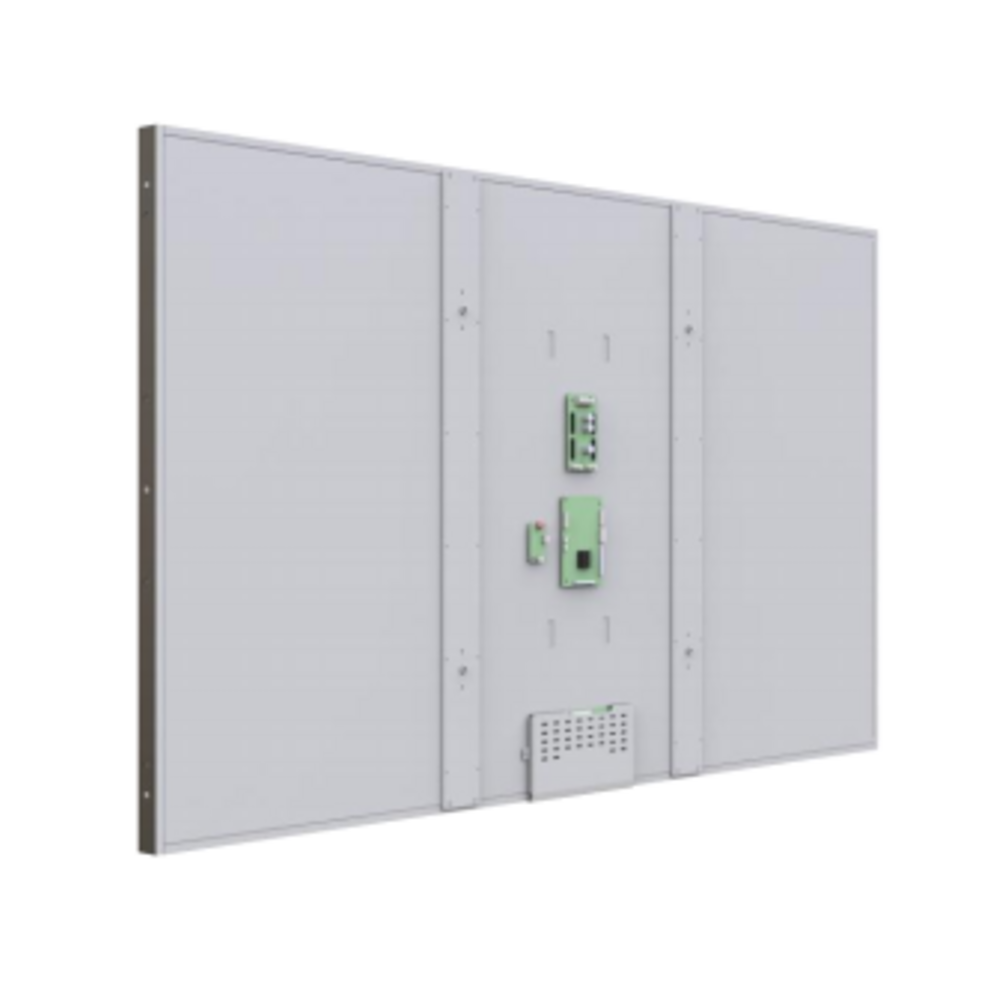

Series representative side image. Mechanical fit follows the selected model’s drawing.
4K panel and backlight supplies are separate; follow the selected pin definitions.
YZ550MDU15D-V11,500 nits / 4K Standard
YZ550MDU15D-V1 · Product Brief rev. 1.0 · 2026-01-01 | ||
Parameter | Specification | Conditions / notes |
|---|---|---|
Display size | 55 inch | PDF p2 |
Platform | 4K Standard | Documented configuration; no supplier panel code displayed |
Brightness, typical | 1,500 nits | ±5%; PDF p3 |
Brightness, maximum | 2,500 nits | Source maximum ±5%; test conditions require engineering confirmation |
Backlight Type | DLED Mini-LED / Local Dimming | PDF p2 / p3 |
Resolution | 3840 × 2160 | Numeric pixels verified against p3 and drawing p4 |
Local dimming zones | 1,152 (32 × 36) | PDF p7 |
LED quantity | 4,608 | PDF p2 / p7 |
Power consumption, typical | 258 W | ±5%; PDF p3 |
Power consumption, maximum | 310 W | ±5%; PDF p3 |
Panel interface | V-by-One | Original CN1 definition, PDF p5 |
Panel logic supply | 12 V | Panel connector; not a complete system power specification |
Backlight connector supply | 24 V | CN2 24 V, PDF p4 / p5; separate from panel logic supply |
Overall dimensions | 1245.00 × 716.00 × 40.00 mm | H × V × D, typical; PDF p3 / p4 |
Active area | 1209.60 × 680.40 mm | H × V; PDF p3 |
Operating temperature | 0°C~50°C | Module operating range; PDF p3 |
Storage temperature | -20°C~60°C | PDF p3 |
Display colors | 10-bit(D) & 1.07 Billion | PDF p3 |
Response time | 8ms (G to G) (Typ.) | PDF p3 |
Refresh rate | 60Hz (Best) | PDF p3 |
Dimming mode | Manual / Automatic & 30% - 100% | PDF p3; controller integration required |
Weight | 15.5kg ±0.2 | PDF p3 |
Viewing angle | +89/-89(H) & +89/-89(V) (Typ.) (CR≥10) | PDF p3 |
MTBF | 75,000 Hours | Source value; operating conditions apply |
IP rating | None / None | Module is not a complete IP-rated outdoor monitor |
AD board / touch / speaker | Not included as standard | PDF p2; project options require confirmation |
Warranty | 24 months | Approved product warranty |
Series representative side image. Mechanical fit follows the selected model’s drawing.
4K panel and backlight supplies are separate; follow the selected pin definitions.
YZ550MDU20D-V12,000 nits / 4K Standard
YZ550MDU20D-V1 · Product Brief rev. 1.0 · 2026-01-01 | ||
Parameter | Specification | Conditions / notes |
|---|---|---|
Display size | 55 inch | PDF p2 |
Platform | 4K Standard | Documented configuration; no supplier panel code displayed |
Brightness, typical | 2,000 nits | ±5%; PDF p3 |
Brightness, maximum | 3,000 nits | Source maximum ±5%; test conditions require engineering confirmation |
Backlight Type | DLED Mini-LED / Local Dimming | PDF p2 / p3 |
Resolution | 3840 × 2160 | Numeric pixels verified against p3 and drawing p4 |
Local dimming zones | 1,152 (32 × 36) | PDF p7 |
LED quantity | 4,608 | PDF p2 / p7 |
Power consumption, typical | 319 W | ±5%; PDF p3 |
Power consumption, maximum | 383 W | ±5%; PDF p3 |
Panel interface | V-by-One | Original CN1 definition, PDF p5 |
Panel logic supply | 12 V | Panel connector; not a complete system power specification |
Backlight connector supply | 24 V | CN2 24 V, PDF p4 / p5; separate from panel logic supply |
Overall dimensions | 1245.00 × 716.00 × 40.00 mm | H × V × D, typical; PDF p3 / p4 |
Active area | 1209.60 × 680.40 mm | H × V; PDF p3 |
Operating temperature | 0°C~50°C | Module operating range; PDF p3 |
Storage temperature | -20°C~60°C | PDF p3 |
Display colors | 10-bit(D) & 1.07 Billion | PDF p3 |
Response time | 8ms (G to G) (Typ.) | PDF p3 |
Refresh rate | 60Hz (Best) | PDF p3 |
Dimming mode | Manual / Automatic & 30% - 100% | PDF p3; controller integration required |
Weight | 15.5kg ±0.2 | PDF p3 |
Viewing angle | +89/-89(H) & +89/-89(V) (Typ.) (CR≥10) | PDF p3 |
MTBF | 75,000 Hours | Source value; operating conditions apply |
IP rating | None / None | Module is not a complete IP-rated outdoor monitor |
AD board / touch / speaker | Not included as standard | PDF p2; project options require confirmation |
Warranty | 24 months | Approved product warranty |
Series representative side image. Mechanical fit follows the selected model’s drawing.
4K panel and backlight supplies are separate; follow the selected pin definitions.
YZ550MDU25D-V12,500 nits / 4K Standard
YZ550MDU25D-V1 · Product Brief rev. 1.0 · 2026-01-01 | ||
Parameter | Specification | Conditions / notes |
|---|---|---|
Display size | 55 inch | PDF p2 |
Platform | 4K Standard | Documented configuration; no supplier panel code displayed |
Brightness, typical | 2,500 nits | ±5%; PDF p3 |
Brightness, maximum | 3,500 nits | Source maximum ±5%; test conditions require engineering confirmation |
Backlight Type | DLED Mini-LED / Local Dimming | PDF p2 / p3 |
Resolution | 3840 × 2160 | Numeric pixels verified against p3 and drawing p4 |
Local dimming zones | 1,152 (32 × 36) | PDF p7 |
LED quantity | 4,608 | PDF p2 / p7 |
Power consumption, typical | 380 W | ±5%; PDF p3 |
Power consumption, maximum | 456 W | ±5%; PDF p3 |
Panel interface | V-by-One | Original CN1 definition, PDF p5 |
Panel logic supply | 12 V | Panel connector; not a complete system power specification |
Backlight connector supply | 24 V | CN2 24 V, PDF p4 / p5; separate from panel logic supply |
Overall dimensions | 1245.00 × 716.00 × 40.00 mm | H × V × D, typical; PDF p3 / p4 |
Active area | 1209.60 × 680.40 mm | H × V; PDF p3 |
Operating temperature | 0°C~50°C | Module operating range; PDF p3 |
Storage temperature | -20°C~60°C | PDF p3 |
Display colors | 10-bit(D) & 1.07 Billion | PDF p3 |
Response time | 8ms (G to G) (Typ.) | PDF p3 |
Refresh rate | 60Hz (Best) | PDF p3 |
Dimming mode | Manual / Automatic & 30% - 100% | PDF p3; controller integration required |
Weight | 15.5kg ±0.2 | PDF p3 |
Viewing angle | +89/-89(H) & +89/-89(V) (Typ.) (CR≥10) | PDF p3 |
MTBF | 75,000 Hours | Source value; operating conditions apply |
IP rating | None / None | Module is not a complete IP-rated outdoor monitor |
AD board / touch / speaker | Not included as standard | PDF p2; project options require confirmation |
Warranty | 24 months | Approved product warranty |
Series representative side image. Mechanical fit follows the selected model’s drawing.
4K panel and backlight supplies are separate; follow the selected pin definitions.
YZ550MDU30D-V13,000 nits / 4K Standard
YZ550MDU30D-V1 · Product Brief rev. 1.0 · 2026-01-01 | ||
Parameter | Specification | Conditions / notes |
|---|---|---|
Display size | 55 inch | PDF p2 |
Platform | 4K Standard | Documented configuration; no supplier panel code displayed |
Brightness, typical | 3,000 nits | ±5%; PDF p3 |
Brightness, maximum | 4,000 nits | Source maximum ±5%; test conditions require engineering confirmation |
Backlight Type | DLED Mini-LED / Local Dimming | PDF p2 / p3 |
Resolution | 3840 × 2160 | Numeric pixels verified against p3 and drawing p4 |
Local dimming zones | 1,152 (32 × 36) | PDF p7 |
LED quantity | 4,608 | PDF p2 / p7 |
Power consumption, typical | 467 W | ±5%; PDF p3 |
Power consumption, maximum | 560 W | ±5%; PDF p3 |
Panel interface | V-by-One | Original CN1 definition, PDF p5 |
Panel logic supply | 12 V | Panel connector; not a complete system power specification |
Backlight connector supply | 24 V | CN2 24 V, PDF p4 / p5; separate from panel logic supply |
Overall dimensions | 1245.00 × 716.00 × 40.00 mm | H × V × D, typical; PDF p3 / p4 |
Active area | 1209.60 × 680.40 mm | H × V; PDF p3 |
Operating temperature | 0°C~50°C | Module operating range; PDF p3 |
Storage temperature | -20°C~60°C | PDF p3 |
Display colors | 10-bit(D) & 1.07 Billion | PDF p3 |
Response time | 8ms (G to G) (Typ.) | PDF p3 |
Refresh rate | 60Hz (Best) | PDF p3 |
Dimming mode | Manual / Automatic & 30% - 100% | PDF p3; controller integration required |
Weight | 15.5kg ±0.2 | PDF p3 |
Viewing angle | +89/-89(H) & +89/-89(V) (Typ.) (CR≥10) | PDF p3 |
MTBF | 75,000 Hours | Source value; operating conditions apply |
IP rating | None / None | Module is not a complete IP-rated outdoor monitor |
AD board / touch / speaker | Not included as standard | PDF p2; project options require confirmation |
Warranty | 24 months | Approved product warranty |
Series representative side image. Mechanical fit follows the selected model’s drawing.
4K panel and backlight supplies are separate; follow the selected pin definitions.
YZ550MDU10DH-V11,000 nits / 4K Wide-T
YZ550MDU10DH-V1 · Product Brief rev. 1.0 · 2026-01-01 | ||
Parameter | Specification | Conditions / notes |
|---|---|---|
Display size | 55 inch | PDF p2 |
Platform | 4K Wide-T | Documented configuration; no supplier panel code displayed |
Brightness, typical | 1,000 nits | ±5%; PDF p3 |
Brightness, maximum | 2,000 nits | Source maximum ±5%; test conditions require engineering confirmation |
Backlight Type | DLED Mini-LED / Local Dimming | PDF p2 / p3 |
Resolution | 3840 × 2160 | Numeric pixels verified against p3 and drawing p4 |
Local dimming zones | 1,152 (32 × 36) | PDF p7 |
LED quantity | 4,608 | PDF p2 / p7 |
Power consumption, typical | 138 W | ±5%; PDF p3 |
Power consumption, maximum | 166 W | ±5%; PDF p3 |
Panel interface | V-by-One | Original CN1 definition, PDF p5 |
Panel logic supply | 12 V | Panel connector; not a complete system power specification |
Backlight connector supply | 24 V | CN2 24 V, PDF p4 / p5; separate from panel logic supply |
Overall dimensions | 1245.00 × 716.00 × 40.00 mm | H × V × D, typical; PDF p3 / p4 |
Active area | 1209.60 × 680.40 mm | H × V; PDF p3 |
Operating temperature | -10°C~60°C | Module operating range; PDF p3 |
Storage temperature | -20°C~60°C | PDF p3 |
Display colors | 10-bit(D) & 1.07 Billion | PDF p3 |
Response time | 8ms (G to G) (Typ.) | PDF p3 |
Refresh rate | 60Hz (Best) | PDF p3 |
Dimming mode | Manual / Automatic & 30% - 100% | PDF p3; controller integration required |
Weight | 15.5kg ±0.2 | PDF p3 |
Viewing angle | +89/-89(H) & +89/-89(V) (Typ.) (CR≥10) | PDF p3 |
MTBF | 75,000 Hours | Source value; operating conditions apply |
IP rating | None / None | Module is not a complete IP-rated outdoor monitor |
AD board / touch / speaker | Not included as standard | PDF p2; project options require confirmation |
Warranty | 24 months | Approved product warranty |
Series representative side image. Mechanical fit follows the selected model’s drawing.
4K panel and backlight supplies are separate; follow the selected pin definitions.
YZ550MDU15DH-V11,500 nits / 4K Wide-T
YZ550MDU15DH-V1 · Product Brief rev. 1.0 · 2026-01-01 | ||
Parameter | Specification | Conditions / notes |
|---|---|---|
Display size | 55 inch | PDF p2 |
Platform | 4K Wide-T | Documented configuration; no supplier panel code displayed |
Brightness, typical | 1,500 nits | ±5%; PDF p3 |
Brightness, maximum | 2,500 nits | Source maximum ±5%; test conditions require engineering confirmation |
Backlight Type | DLED Mini-LED / Local Dimming | PDF p2 / p3 |
Resolution | 3840 × 2160 | Numeric pixels verified against p3 and drawing p4 |
Local dimming zones | 1,152 (32 × 36) | PDF p7 |
LED quantity | 4,608 | PDF p2 / p7 |
Power consumption, typical | 181 W | ±5%; PDF p3 |
Power consumption, maximum | 217 W | ±5%; PDF p3 |
Panel interface | V-by-One | Original CN1 definition, PDF p5 |
Panel logic supply | 12 V | Panel connector; not a complete system power specification |
Backlight connector supply | 24 V | CN2 24 V, PDF p4 / p5; separate from panel logic supply |
Overall dimensions | 1245.00 × 716.00 × 40.00 mm | H × V × D, typical; PDF p3 / p4 |
Active area | 1209.60 × 680.40 mm | H × V; PDF p3 |
Operating temperature | -10°C~60°C | Module operating range; PDF p3 |
Storage temperature | -20°C~60°C | PDF p3 |
Display colors | 10-bit(D) & 1.07 Billion | PDF p3 |
Response time | 8ms (G to G) (Typ.) | PDF p3 |
Refresh rate | 60Hz (Best) | PDF p3 |
Dimming mode | Manual / Automatic & 30% - 100% | PDF p3; controller integration required |
Weight | 15.5kg ±0.2 | PDF p3 |
Viewing angle | +89/-89(H) & +89/-89(V) (Typ.) (CR≥10) | PDF p3 |
MTBF | 75,000 Hours | Source value; operating conditions apply |
IP rating | None / None | Module is not a complete IP-rated outdoor monitor |
AD board / touch / speaker | Not included as standard | PDF p2; project options require confirmation |
Warranty | 24 months | Approved product warranty |
Series representative side image. Mechanical fit follows the selected model’s drawing.
4K panel and backlight supplies are separate; follow the selected pin definitions.
YZ550MDU20DH-V12,000 nits / 4K Wide-T
YZ550MDU20DH-V1 · Product Brief rev. 1.0 · 2026-01-01 | ||
Parameter | Specification | Conditions / notes |
|---|---|---|
Display size | 55 inch | PDF p2 |
Platform | 4K Wide-T | Documented configuration; no supplier panel code displayed |
Brightness, typical | 2,000 nits | ±5%; PDF p3 |
Brightness, maximum | 3,000 nits | Source maximum ±5%; test conditions require engineering confirmation |
Backlight Type | DLED Mini-LED / Local Dimming | PDF p2 / p3 |
Resolution | 3840 × 2160 | Numeric pixels verified against p3 and drawing p4 |
Local dimming zones | 1,152 (32 × 36) | PDF p7 |
LED quantity | 4,608 | PDF p2 / p7 |
Power consumption, typical | 224 W | ±5%; PDF p3 |
Power consumption, maximum | 269 W | ±5%; PDF p3 |
Panel interface | V-by-One | Original CN1 definition, PDF p5 |
Panel logic supply | 12 V | Panel connector; not a complete system power specification |
Backlight connector supply | 24 V | CN2 24 V, PDF p4 / p5; separate from panel logic supply |
Overall dimensions | 1245.00 × 716.00 × 40.00 mm | H × V × D, typical; PDF p3 / p4 |
Active area | 1209.60 × 680.40 mm | H × V; PDF p3 |
Operating temperature | -10°C~60°C | Module operating range; PDF p3 |
Storage temperature | -20°C~60°C | PDF p3 |
Display colors | 10-bit(D) & 1.07 Billion | PDF p3 |
Response time | 8ms (G to G) (Typ.) | PDF p3 |
Refresh rate | 60Hz (Best) | PDF p3 |
Dimming mode | Manual / Automatic & 30% - 100% | PDF p3; controller integration required |
Weight | 15.5kg ±0.2 | PDF p3 |
Viewing angle | +89/-89(H) & +89/-89(V) (Typ.) (CR≥10) | PDF p3 |
MTBF | 75,000 Hours | Source value; operating conditions apply |
IP rating | None / None | Module is not a complete IP-rated outdoor monitor |
AD board / touch / speaker | Not included as standard | PDF p2; project options require confirmation |
Warranty | 24 months | Approved product warranty |
Series representative side image. Mechanical fit follows the selected model’s drawing.
4K panel and backlight supplies are separate; follow the selected pin definitions.
YZ550MDU25DH-V12,500 nits / 4K Wide-T
YZ550MDU25DH-V1 · Product Brief rev. 1.0 · 2026-01-01 | ||
Parameter | Specification | Conditions / notes |
|---|---|---|
Display size | 55 inch | PDF p2 |
Platform | 4K Wide-T | Documented configuration; no supplier panel code displayed |
Brightness, typical | 2,500 nits | ±5%; PDF p3 |
Brightness, maximum | 3,500 nits | Source maximum ±5%; test conditions require engineering confirmation |
Backlight Type | DLED Mini-LED / Local Dimming | PDF p2 / p3 |
Resolution | 3840 × 2160 | Numeric pixels verified against p3 and drawing p4 |
Local dimming zones | 1,152 (32 × 36) | PDF p7 |
LED quantity | 4,608 | PDF p2 / p7 |
Power consumption, typical | 267 W | ±5%; PDF p3 |
Power consumption, maximum | 320 W | ±5%; PDF p3 |
Panel interface | V-by-One | Original CN1 definition, PDF p5 |
Panel logic supply | 12 V | Panel connector; not a complete system power specification |
Backlight connector supply | 24 V | CN2 24 V, PDF p4 / p5; separate from panel logic supply |
Overall dimensions | 1245.00 × 716.00 × 40.00 mm | H × V × D, typical; PDF p3 / p4 |
Active area | 1209.60 × 680.40 mm | H × V; PDF p3 |
Operating temperature | -10°C~60°C | Module operating range; PDF p3 |
Storage temperature | -20°C~60°C | PDF p3 |
Display colors | 10-bit(D) & 1.07 Billion | PDF p3 |
Response time | 8ms (G to G) (Typ.) | PDF p3 |
Refresh rate | 60Hz (Best) | PDF p3 |
Dimming mode | Manual / Automatic & 30% - 100% | PDF p3; controller integration required |
Weight | 15.5kg ±0.2 | PDF p3 |
Viewing angle | +89/-89(H) & +89/-89(V) (Typ.) (CR≥10) | PDF p3 |
MTBF | 75,000 Hours | Source value; operating conditions apply |
IP rating | None / None | Module is not a complete IP-rated outdoor monitor |
AD board / touch / speaker | Not included as standard | PDF p2; project options require confirmation |
Warranty | 24 months | Approved product warranty |
Series representative side image. Mechanical fit follows the selected model’s drawing.
4K panel and backlight supplies are separate; follow the selected pin definitions.
YZ550MDU30DH-V13,000 nits / 4K Wide-T
YZ550MDU30DH-V1 · Product Brief rev. 1.0 · 2026-01-01 | ||
Parameter | Specification | Conditions / notes |
|---|---|---|
Display size | 55 inch | PDF p2 |
Platform | 4K Wide-T | Documented configuration; no supplier panel code displayed |
Brightness, typical | 3,000 nits | ±5%; PDF p3 |
Brightness, maximum | 4,000 nits | Source maximum ±5%; test conditions require engineering confirmation |
Backlight Type | DLED Mini-LED / Local Dimming | PDF p2 / p3 |
Resolution | 3840 × 2160 | Numeric pixels verified against p3 and drawing p4 |
Local dimming zones | 1,152 (32 × 36) | PDF p7 |
LED quantity | 4,608 | PDF p2 / p7 |
Power consumption, typical | 327 W | ±5%; PDF p3 |
Power consumption, maximum | 392 W | ±5%; PDF p3 |
Panel interface | V-by-One | Original CN1 definition, PDF p5 |
Panel logic supply | 12 V | Panel connector; not a complete system power specification |
Backlight connector supply | 24 V | CN2 24 V, PDF p4 / p5; separate from panel logic supply |
Overall dimensions | 1245.00 × 716.00 × 40.00 mm | H × V × D, typical; PDF p3 / p4 |
Active area | 1209.60 × 680.40 mm | H × V; PDF p3 |
Operating temperature | -10°C~60°C | Module operating range; PDF p3 |
Storage temperature | -20°C~60°C | PDF p3 |
Display colors | 10-bit(D) & 1.07 Billion | PDF p3 |
Response time | 8ms (G to G) (Typ.) | PDF p3 |
Refresh rate | 60Hz (Best) | PDF p3 |
Dimming mode | Manual / Automatic & 30% - 100% | PDF p3; controller integration required |
Weight | 15.5kg ±0.2 | PDF p3 |
Viewing angle | +89/-89(H) & +89/-89(V) (Typ.) (CR≥10) | PDF p3 |
MTBF | 75,000 Hours | Source value; operating conditions apply |
IP rating | None / None | Module is not a complete IP-rated outdoor monitor |
AD board / touch / speaker | Not included as standard | PDF p2; project options require confirmation |
Warranty | 24 months | Approved product warranty |
Series representative side image. Mechanical fit follows the selected model’s drawing.
4K panel and backlight supplies are separate; follow the selected pin definitions.
FIT BEFORE INTEGRATION
Mechanical & Mounting
YZ550MDH15DH-V0
Contact our team for the selected outline and mounting drawing.
Model-specific source: English PDF p4. CAD file availability requires confirmation.
Verify the complete outline.
Overall Dimensions · H × V × D
1245.00 × 716.00 × 40.00 mm
Active Area · H × V
1209.60 × 680.40 mm
Nominal Thickness · typical
40.00 mm
Mounting notes
Use the selected original outline, rear mounting view, connector locations and clearance. Series photographs are representative, not model-level mounting evidence.
Open Drawing Image ↗Open Drawing in PDF ↗
CONNECTOR / PIN DEFINITION
Panel & Backlight Integration
Selected interface LVDS
Contact our team for the selected panel and backlight pin definitions.
Original panel, continuation and backlight definitions are mapped separately from PDF p5.
LVDS panel interface
Use CN1 signal timing and the complete pin definition. Connector appearance does not prove compatibility.
Separate electrical supplies
Panel logic: 12 V. Backlight connector supply: To be confirmed.
FHD backlight supply requires engineering confirmation before electrical integration.
Controller integration
No AD board or ready-to-use HDMI / DP system input is included as standard. Confirm the power architecture, harness and dimming control before connection.
Open Pin Definition in PDF ↗
MINI-LED / LOCAL DIMMING
One backlight technology. Documented platforms.
DLED Mini-LED across all 15 configurations.
1,152 local dimming zones
4,608 LEDs
The source appendix specifies 32 × 36 zones and 4,608 LEDs. Local brightness control depends on the controller and image content; no unverified energy-saving percentage is claimed.
FHD & 4K integration
Three documented platforms
Five FHD Wide-T, five 4K Standard and five 4K Wide-T models. These are real documented configurations. Electrical confirmation remains necessary for the FHD backlight supply.
TECHNICAL DOCUMENTS
Downloads by Model
Documents follow the selected configuration.
SELECTED MODEL
YZ550MDH15DH-V0
Product Brief · Specifications + Drawing + Pin Definition
Revision
1.0
Date
2026-01-01
Download EN PDF ↓
Datasheet currently unavailable
View documents for all configurations
Documents for all 16 configurations | ||||
Model | Document | Revision | Date | PDF / Release status |
|---|---|---|---|---|
YZ550MDH10DH-V0 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
YZ550MDH15DH-V0 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
YZ550MDH20DH-V0 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
YZ550MDH25DH-V0 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
YZ550MDH30DH-V0 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
YZ550MDU10D-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
YZ550MDU15D-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
YZ550MDU20D-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
YZ550MDU25D-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
YZ550MDU30D-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
YZ550MDU10DH-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
YZ550MDU15DH-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
YZ550MDU20DH-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
YZ550MDU25DH-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
YZ550MDU30DH-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
Datasheet availability varies by configuration. Model-specific engineering images are available above.
ENGINEERING NOTES / FAQ
Clear answers before RFQ.
Customization options depend on your project requirements. Contact our team to discuss integration and delivery requirements.
Related technology: sunlight readability →Related solutions: bright-light integration →
Is this a complete outdoor monitor?
No. This is an LCD module for integration. An AD board, touch system, speaker and IP-rated enclosure are not included as standard.
What local dimming configuration is documented?
The 55-inch source appendix specifies 1,152 local dimming zones and 4,608 LEDs. Confirm controller compatibility for the intended image content.
Which interfaces are used?
FHD models use LVDS and 4K models use V-by-One. Use the complete selected model pin definition, not a connector photograph.
Is the FHD backlight supply confirmed?
The source mechanical drawing and connector table disagree. Engineering confirmation is required before FHD electrical integration.
Are the images model-specific?
Product, Rear and Side are representative series images. Mechanical and interface assets are mapped from the selected model’s PDF; only confirmed assets are made available.
How do I request documents and project support?
Choose a model and send the operating environment, controller and installation requirements. Contact our team for current documentation.
REQUEST A QUOTE
Specify the display. Define the project.
Selected model: YZ550MDH15DH-V0
Send your installation conditions, controller needs and mechanical requirements.
YZD Solutions / YuanZhong DisplayHigh brightness LCD display modulesBack to top ↑
