Brightness & environment
Select from documented levels. Module brightness alone does not define finished outdoor performance.
HIGH BRIGHTNESS LCD MODULES / SERIES
Compare 10 listed 75-inch DLED configurations, all 4K with V-by-One. Brightness and operating-temperature entries vary; select from the documented model rows before checking the enclosure drawing.
Selected Model YZ750MBU20H-V0
Brightness: typical ±5%. Values above apply to the selected variant, not the entire series.

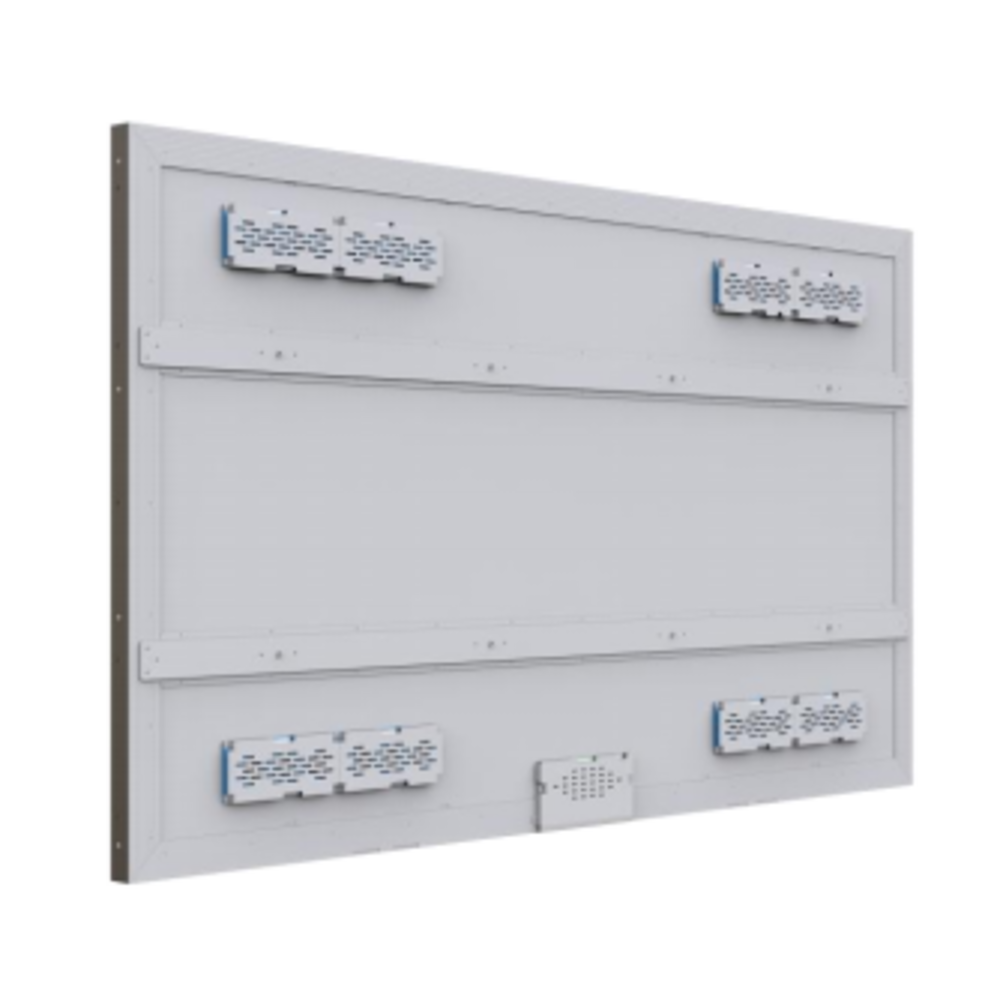

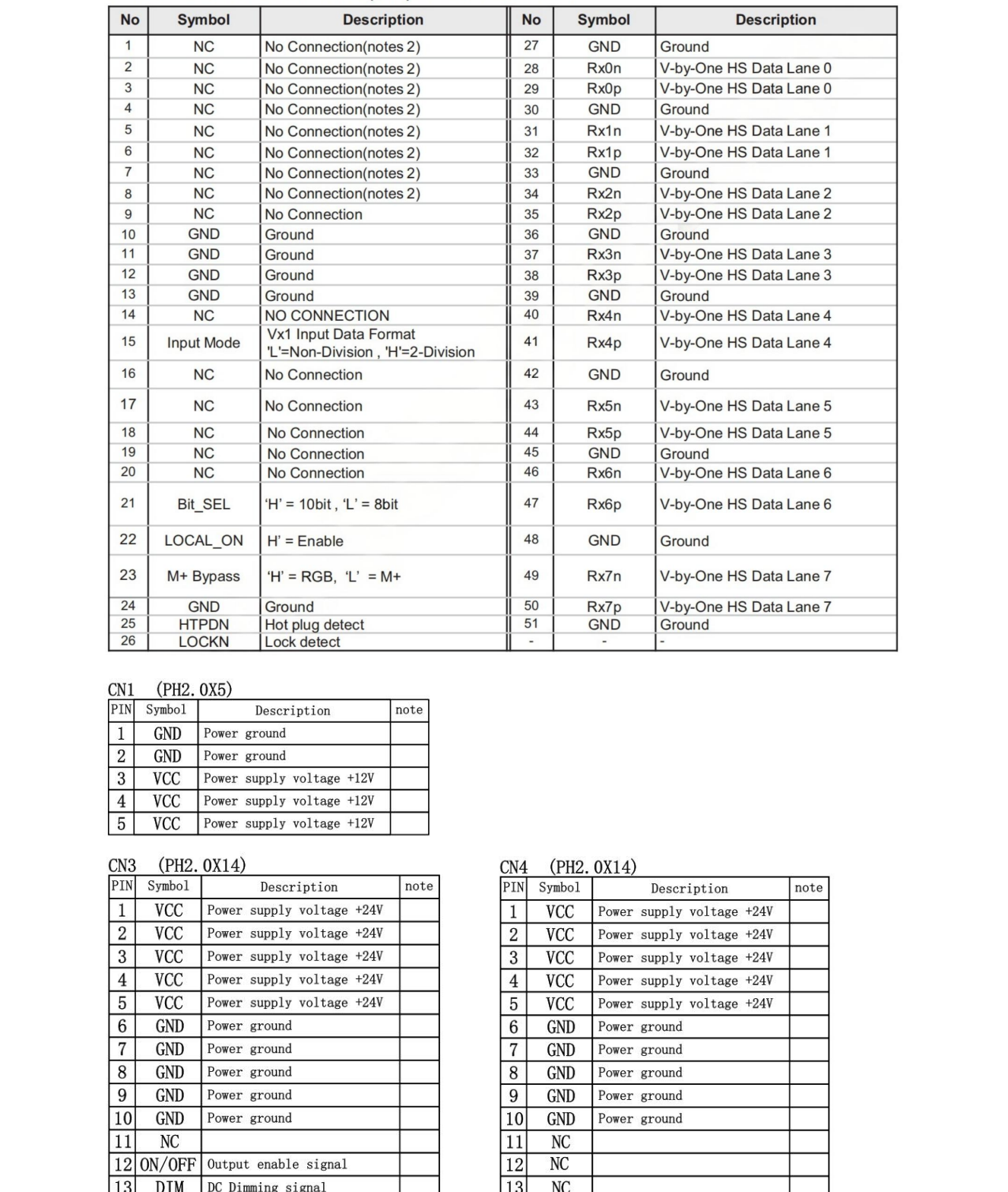

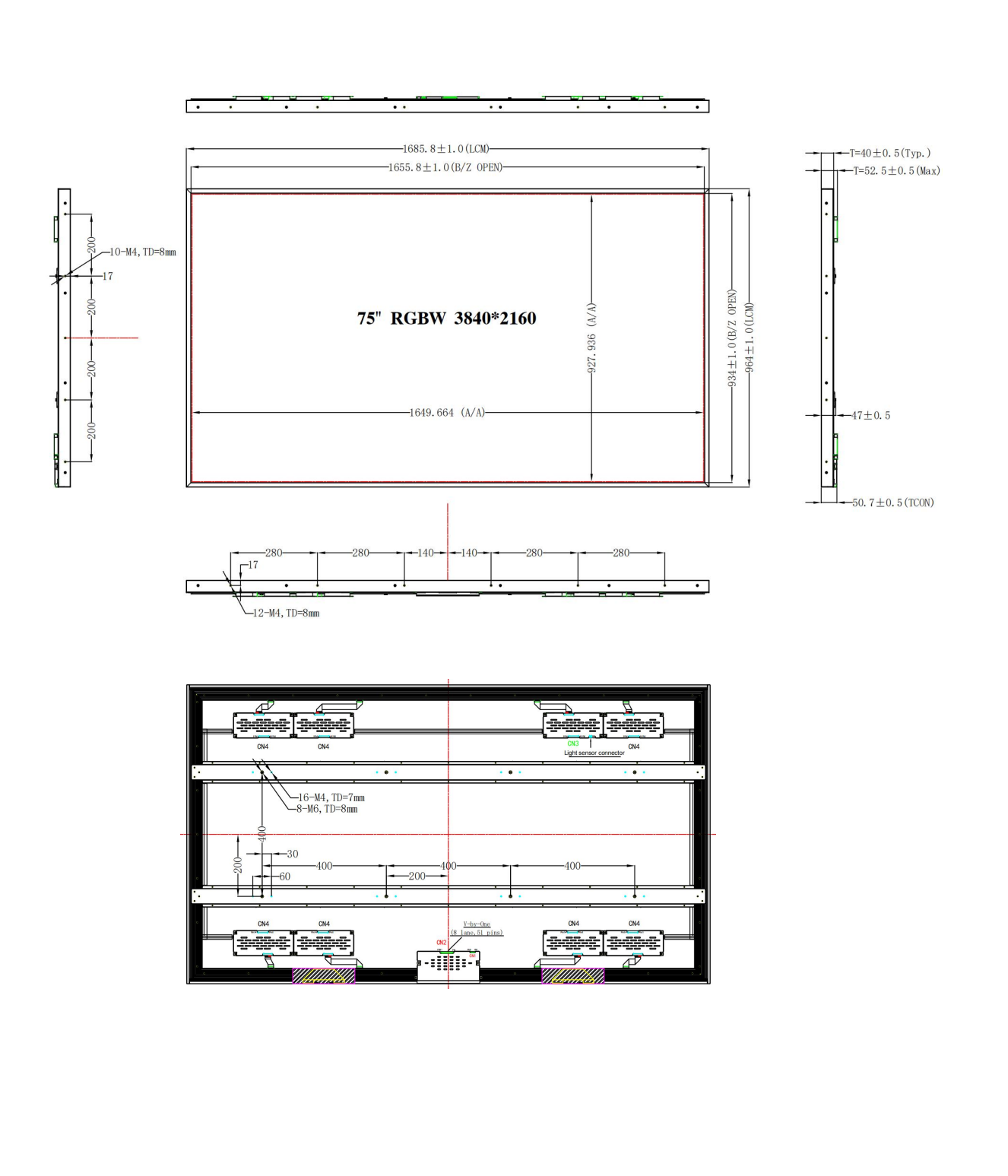

3840 × 2160 / V-by-One. Model-specific drawing and pin definition available below.
CHOOSE YOUR CONFIGURATION
10 documented configurations available.
Click a model to update the engineering view.
10 of 10 configurations
| YuanZhong Model | Brightness | Backlight | Resolution | Panel Interface | Dimensions | Datasheet |
|---|---|---|---|---|---|---|
| 1,000 nits | DLED | 3840 × 2160 | V-by-One | 1685.80 × 964.00 × 52.50 mm | EN PDF ↗ | |
| 1,000 nits | DLED | 3840 × 2160 | V-by-One | 1685.80 × 964.00 × 52.50 mm | EN PDF ↗ | |
| 1,500 nits | DLED | 3840 × 2160 | V-by-One | 1685.80 × 964.00 × 52.50 mm | EN PDF ↗ | |
| 1,500 nits | DLED | 3840 × 2160 | V-by-One | 1685.80 × 964.00 × 52.50 mm | EN PDF ↗ | |
| 2,000 nits | DLED | 3840 × 2160 | V-by-One | 1685.80 × 964.00 × 52.50 mm | EN PDF ↗ | |
| 2,000 nits | DLED | 3840 × 2160 | V-by-One | 1685.80 × 964.00 × 52.50 mm | EN PDF ↗ | |
| 2,500 nits | DLED | 3840 × 2160 | V-by-One | 1685.80 × 964.00 × 52.50 mm | EN PDF ↗ | |
| 2,500 nits | DLED | 3840 × 2160 | V-by-One | 1685.80 × 964.00 × 52.50 mm | EN PDF ↗ | |
| 3,000 nits | DLED | 3840 × 2160 | V-by-One | 1685.80 × 964.00 × 52.50 mm | EN PDF ↗ | |
| 3,000 nits | DLED | 3840 × 2160 | V-by-One | 1685.80 × 964.00 × 52.50 mm | EN PDF ↗ | |
| No configurations match these filters. | ||||||
Configuration availability and mechanical requirements depend on the selected model.
BEST FOR / HOW TO CHOOSE
For a 75-inch signage or industrial installation, plan for mounting clearance, ambient light and enclosure cooling. Operating-temperature specifications differ between the listed models, so check the selected configuration.
Discuss your application →Select from documented levels. Module brightness alone does not define finished outdoor performance.
The 75-inch configurations listed here are 4K with V-by-One. Verify the selected model's pin definition and lane mapping, then check controller requirements before integration.
Check outline, airflow and ambient temperature. Modules are not rated weatherproof finished displays.
MODEL-SPECIFIC DATA
Selected YZ750MBU20H-V0
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 75 inch | PDF p2 |
| Brightness | 1,000 nits | Typical ±5%; PDF p3 |
| Backlight Type | DLED | PDF p3 |
| Resolution | 3840 × 2160 | PDF p2 / p3 / drawing p4 |
| Panel Interface | V-by-One | Model-specific PDF p5; confirm unresolved interface before integration |
| Overall Dimensions | 1685.80 × 964.00 × 52.50 mm | H × V × D; typical; PDF p3 |
| Active Area | 1649.664 × 927.936 mm | H × V; PDF p3 |
| Display Colors | 8-bit(D)+ FRC & 1.07 Billion colors | PDF p3 |
| Response Time | 8ms (G to G) (Typ.) | Typical; PDF p3 |
| Contrast / Color Gamut | 1,200 : 1(Typ.) & 89% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 30% -100% | PDF p3 |
| Operating Power | 360W (Typ.)±5% | Typical; PDF p3 |
| Weight | 38.5kg ±0.2 | PDF p3 |
| Operating Temperature | -30°C~80°C | Module specification; PDF p3 |
| Storage Temperature | -30°C~80°C | PDF p3 |
| Panel Platform | DV750QUB-R01 & 80°C (Surface) | PDF p3; panel surface temperature is not module operating temperature |
| AD Board | Not equipped | PDF p2; not a finished HDMI / DP monitor |
| IP Rating | None / None | PDF p3; system enclosure requires engineering review |
| Warranty | 24 months | User-approved warranty |
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 75 inch | PDF p2 |
| Brightness | 1,000 nits | Typical ±5%; PDF p3 |
| Backlight Type | DLED | PDF p3 |
| Resolution | 3840 × 2160 | PDF p2 / p3 / drawing p4 |
| Panel Interface | V-by-One | Model-specific PDF p5; confirm unresolved interface before integration |
| Overall Dimensions | 1685.80 × 964.00 × 52.50 mm | H × V × D; typical; PDF p3 |
| Active Area | 1649.7 × 927.9 mm | H × V; PDF p3 |
| Display Colors | 10-bit(D) & 1.07 Billion colors | PDF p3 |
| Response Time | 8ms (G to G) (Typ.) | Typical; PDF p3 |
| Contrast / Color Gamut | 1,200 : 1(Typ.) & 72% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 30% -100% | PDF p3 |
| Operating Power | 246W (Typ.)±5% | Typical; PDF p3 |
| Weight | 38.5kg ±0.2 | PDF p3 |
| Operating Temperature | 0°C~50°C | Module specification; PDF p3 |
| Storage Temperature | -20°C~60°C | PDF p3 |
| Panel Platform | LD750DGY-SRA2 & 68°C (Surface) | PDF p3; panel surface temperature is not module operating temperature |
| AD Board | Not equipped | PDF p2; not a finished HDMI / DP monitor |
| IP Rating | None / None | PDF p3; system enclosure requires engineering review |
| Warranty | 24 months | User-approved warranty |
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 75 inch | PDF p2 |
| Brightness | 1,500 nits | Typical ±5%; PDF p3 |
| Backlight Type | DLED | PDF p3 |
| Resolution | 3840 × 2160 | PDF p2 / p3 / drawing p4 |
| Panel Interface | V-by-One | Model-specific PDF p5; confirm unresolved interface before integration |
| Overall Dimensions | 1685.80 × 964.00 × 52.50 mm | H × V × D; typical; PDF p3 |
| Active Area | 1649.664 × 927.936 mm | H × V; PDF p3 |
| Display Colors | 8-bit(D)+ FRC & 1.07 Billion colors | PDF p3 |
| Response Time | 8ms (G to G) (Typ.) | Typical; PDF p3 |
| Contrast / Color Gamut | 1,200 : 1(Typ.) & 89% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 30% -100% | PDF p3 |
| Operating Power | 460W (Typ.)±5% | Typical; PDF p3 |
| Weight | 38.5kg ±0.2 | PDF p3 |
| Operating Temperature | -30°C~80°C | Module specification; PDF p3 |
| Storage Temperature | -30°C~80°C | PDF p3 |
| Panel Platform | DV750QUB-R01 & 80°C (Surface) | PDF p3; panel surface temperature is not module operating temperature |
| AD Board | Not equipped | PDF p2; not a finished HDMI / DP monitor |
| IP Rating | None / None | PDF p3; system enclosure requires engineering review |
| Warranty | 24 months | User-approved warranty |
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 75 inch | PDF p2 |
| Brightness | 1,500 nits | Typical ±5%; PDF p3 |
| Backlight Type | DLED | PDF p3 |
| Resolution | 3840 × 2160 | PDF p2 / p3 / drawing p4 |
| Panel Interface | V-by-One | Model-specific PDF p5; confirm unresolved interface before integration |
| Overall Dimensions | 1685.80 × 964.00 × 52.50 mm | H × V × D; typical; PDF p3 |
| Active Area | 1649.7 × 927.9 mm | H × V; PDF p3 |
| Display Colors | 10-bit(D) & 1.07 Billion colors | PDF p3 |
| Response Time | 8ms (G to G) (Typ.) | Typical; PDF p3 |
| Contrast / Color Gamut | 1,200 : 1(Typ.) & 72% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 30% -100% | PDF p3 |
| Operating Power | 316W (Typ.)±5% | Typical; PDF p3 |
| Weight | 38.5kg ±0.2 | PDF p3 |
| Operating Temperature | 0°C~50°C | Module specification; PDF p3 |
| Storage Temperature | -20°C~60°C | PDF p3 |
| Panel Platform | LD750DGY-SRA2 & 68°C (Surface) | PDF p3; panel surface temperature is not module operating temperature |
| AD Board | Not equipped | PDF p2; not a finished HDMI / DP monitor |
| IP Rating | None / None | PDF p3; system enclosure requires engineering review |
| Warranty | 24 months | User-approved warranty |
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 75 inch | PDF p2 |
| Brightness | 2,000 nits | Typical ±5%; PDF p3 |
| Backlight Type | DLED | PDF p3 |
| Resolution | 3840 × 2160 | PDF p2 / p3 / drawing p4 |
| Panel Interface | V-by-One | Model-specific PDF p5; confirm unresolved interface before integration |
| Overall Dimensions | 1685.80 × 964.00 × 52.50 mm | H × V × D; typical; PDF p3 |
| Active Area | 1649.664 × 927.936 mm | H × V; PDF p3 |
| Display Colors | 8-bit(D)+ FRC & 1.07 Billion colors | PDF p3 |
| Response Time | 8ms (G to G) (Typ.) | Typical; PDF p3 |
| Contrast / Color Gamut | 1,200 : 1(Typ.) & 89% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 30% -100% | PDF p3 |
| Operating Power | 540W (Typ.)±5% | Typical; PDF p3 |
| Weight | 38.5kg ±0.2 | PDF p3 |
| Operating Temperature | -30°C~80°C | Module specification; PDF p3 |
| Storage Temperature | -30°C~80°C | PDF p3 |
| Panel Platform | DV750QUB-R01 & 80°C (Surface) | PDF p3; panel surface temperature is not module operating temperature |
| AD Board | Not equipped | PDF p2; not a finished HDMI / DP monitor |
| IP Rating | None / None | PDF p3; system enclosure requires engineering review |
| Warranty | 24 months | User-approved warranty |
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 75 inch | PDF p2 |
| Brightness | 2,000 nits | Typical ±5%; PDF p3 |
| Backlight Type | DLED | PDF p3 |
| Resolution | 3840 × 2160 | PDF p2 / p3 / drawing p4 |
| Panel Interface | V-by-One | Model-specific PDF p5; confirm unresolved interface before integration |
| Overall Dimensions | 1685.80 × 964.00 × 52.50 mm | H × V × D; typical; PDF p3 |
| Active Area | 1649.7 × 927.9 mm | H × V; PDF p3 |
| Display Colors | 10-bit(D) & 1.07 Billion colors | PDF p3 |
| Response Time | 8ms (G to G) (Typ.) | Typical; PDF p3 |
| Contrast / Color Gamut | 1,200 : 1(Typ.) & 72% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 30% -100% | PDF p3 |
| Operating Power | 396W (Typ.)±5% | Typical; PDF p3 |
| Weight | 38.5kg ±0.2 | PDF p3 |
| Operating Temperature | 0°C~50°C | Module specification; PDF p3 |
| Storage Temperature | -20°C~60°C | PDF p3 |
| Panel Platform | LD750DGY-SRA2 & 68°C (Surface) | PDF p3; panel surface temperature is not module operating temperature |
| AD Board | Not equipped | PDF p2; not a finished HDMI / DP monitor |
| IP Rating | None / None | PDF p3; system enclosure requires engineering review |
| Warranty | 24 months | User-approved warranty |
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 75 inch | PDF p2 |
| Brightness | 2,500 nits | Typical ±5%; PDF p3 |
| Backlight Type | DLED | PDF p3 |
| Resolution | 3840 × 2160 | PDF p2 / p3 / drawing p4 |
| Panel Interface | V-by-One | Model-specific PDF p5; confirm unresolved interface before integration |
| Overall Dimensions | 1685.80 × 964.00 × 52.50 mm | H × V × D; typical; PDF p3 |
| Active Area | 1649.664 × 927.936 mm | H × V; PDF p3 |
| Display Colors | 8-bit(D)+ FRC & 1.07 Billion colors | PDF p3 |
| Response Time | 8ms (G to G) (Typ.) | Typical; PDF p3 |
| Contrast / Color Gamut | 1,200 : 1(Typ.) & 89% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 30% -100% | PDF p3 |
| Operating Power | 657W (Typ.)±5% | Typical; PDF p3 |
| Weight | 38.5kg ±0.2 | PDF p3 |
| Operating Temperature | -30°C~80°C | Module specification; PDF p3 |
| Storage Temperature | -30°C~80°C | PDF p3 |
| Panel Platform | DV750QUB-R01 & 80°C (Surface) | PDF p3; panel surface temperature is not module operating temperature |
| AD Board | Not equipped | PDF p2; not a finished HDMI / DP monitor |
| IP Rating | None / None | PDF p3; system enclosure requires engineering review |
| Warranty | 24 months | User-approved warranty |
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 75 inch | PDF p2 |
| Brightness | 2,500 nits | Typical ±5%; PDF p3 |
| Backlight Type | DLED | PDF p3 |
| Resolution | 3840 × 2160 | PDF p2 / p3 / drawing p4 |
| Panel Interface | V-by-One | Model-specific PDF p5; confirm unresolved interface before integration |
| Overall Dimensions | 1685.80 × 964.00 × 52.50 mm | H × V × D; typical; PDF p3 |
| Active Area | 1649.7 × 927.9 mm | H × V; PDF p3 |
| Display Colors | 10-bit(D) & 1.07 Billion colors | PDF p3 |
| Response Time | 8ms (G to G) (Typ.) | Typical; PDF p3 |
| Contrast / Color Gamut | 1,200 : 1(Typ.) & 72% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 30% -100% | PDF p3 |
| Operating Power | 452W (Typ.)±5% | Typical; PDF p3 |
| Weight | 38.5kg ±0.2 | PDF p3 |
| Operating Temperature | 0°C~50°C | Module specification; PDF p3 |
| Storage Temperature | -20°C~60°C | PDF p3 |
| Panel Platform | LD750DGY-SRA2 & 68°C (Surface) | PDF p3; panel surface temperature is not module operating temperature |
| AD Board | Not equipped | PDF p2; not a finished HDMI / DP monitor |
| IP Rating | None / None | PDF p3; system enclosure requires engineering review |
| Warranty | 24 months | User-approved warranty |
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 75 inch | PDF p2 |
| Brightness | 3,000 nits | Typical ±5%; PDF p3 |
| Backlight Type | DLED | PDF p3 |
| Resolution | 3840 × 2160 | PDF p2 / p3 / drawing p4 |
| Panel Interface | V-by-One | Model-specific PDF p5; confirm unresolved interface before integration |
| Overall Dimensions | 1685.80 × 964.00 × 52.50 mm | H × V × D; typical; PDF p3 |
| Active Area | 1649.664 × 927.936 mm | H × V; PDF p3 |
| Display Colors | 8-bit(D)+ FRC & 1.07 Billion colors | PDF p3 |
| Response Time | 8ms (G to G) (Typ.) | Typical; PDF p3 |
| Contrast / Color Gamut | 1,200 : 1(Typ.) & 89% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 30% -100% | PDF p3 |
| Operating Power | 868W (Typ.)±5% | Typical; PDF p3 |
| Weight | 38.5kg ±0.2 | PDF p3 |
| Operating Temperature | -30°C~80°C | Module specification; PDF p3 |
| Storage Temperature | -30°C~80°C | PDF p3 |
| Panel Platform | DV750QUB-R01 & 80°C (Surface) | PDF p3; panel surface temperature is not module operating temperature |
| AD Board | Not equipped | PDF p2; not a finished HDMI / DP monitor |
| IP Rating | None / None | PDF p3; system enclosure requires engineering review |
| Warranty | 24 months | User-approved warranty |
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 75 inch | PDF p2 |
| Brightness | 3,000 nits | Typical ±5%; PDF p3 |
| Backlight Type | DLED | PDF p3 |
| Resolution | 3840 × 2160 | PDF p2 / p3 / drawing p4 |
| Panel Interface | V-by-One | Model-specific PDF p5; confirm unresolved interface before integration |
| Overall Dimensions | 1685.80 × 964.00 × 52.50 mm | H × V × D; typical; PDF p3 |
| Active Area | 1649.7 × 927.9 mm | H × V; PDF p3 |
| Display Colors | 10-bit(D) & 1.07 Billion colors | PDF p3 |
| Response Time | 8ms (G to G) (Typ.) | Typical; PDF p3 |
| Contrast / Color Gamut | 1,200 : 1(Typ.) & 72% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 30% -100% | PDF p3 |
| Operating Power | 597W (Typ.)±5% | Typical; PDF p3 |
| Weight | 38.5kg ±0.2 | PDF p3 |
| Operating Temperature | 0°C~50°C | Module specification; PDF p3 |
| Storage Temperature | -20°C~60°C | PDF p3 |
| Panel Platform | LD750DGY-SRA2 & 68°C (Surface) | PDF p3; panel surface temperature is not module operating temperature |
| AD Board | Not equipped | PDF p2; not a finished HDMI / DP monitor |
| IP Rating | None / None | PDF p3; system enclosure requires engineering review |
| Warranty | 24 months | User-approved warranty |
FIT BEFORE INTEGRATION
YZ750MBU20H-V0
Use the selected model’s hole pattern, connector positions and clearance. Check mounting and thermal conditions against the original drawing before integration.
Open Drawing Image ↗ Download Drawing in PDF ↓Drawing image available. Contact our team regarding CAD file availability.

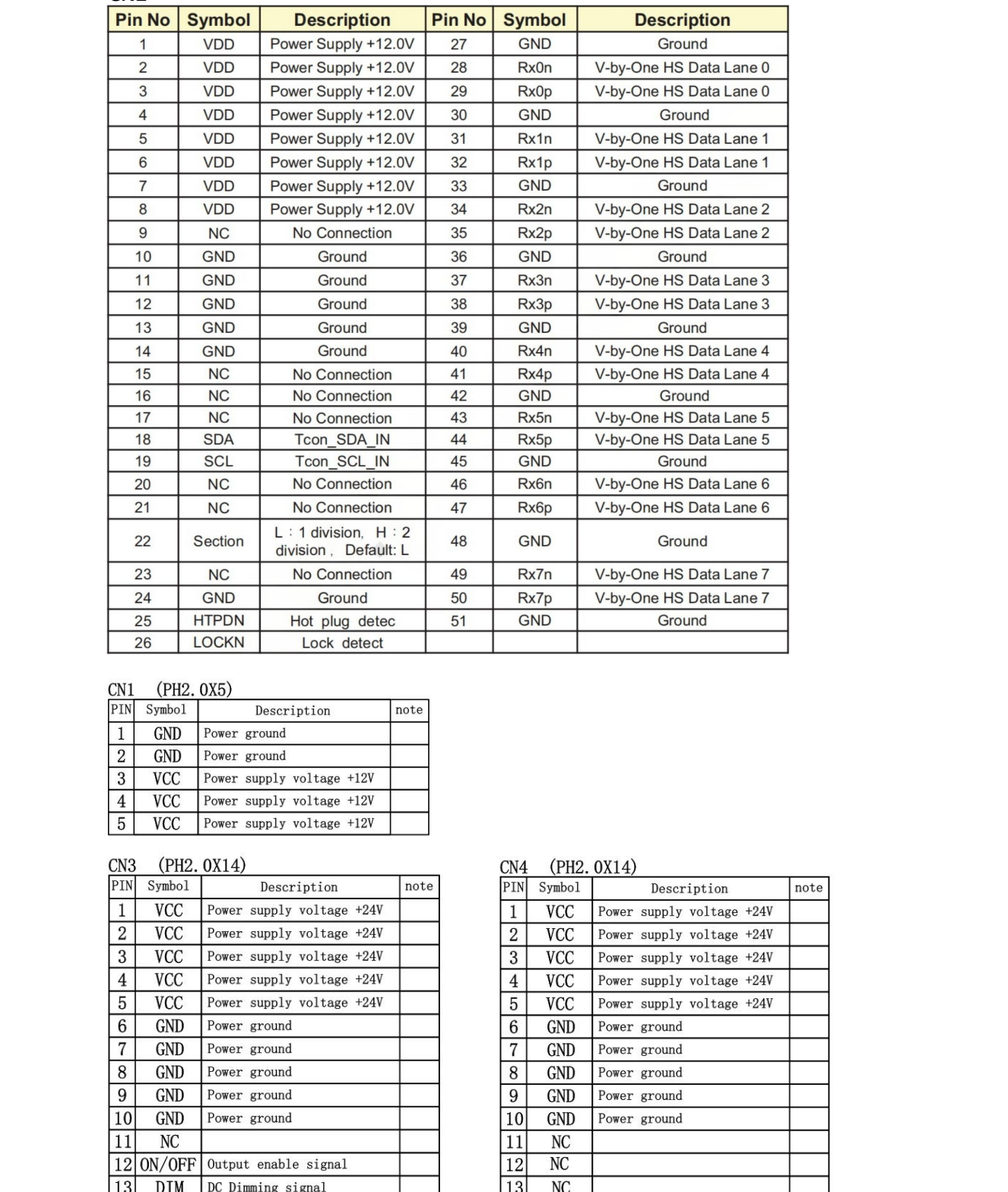

CONNECTOR / PIN DEFINITION
Selected interface V-by-One
Use the selected model’s original panel connector sheet. Verify the interface, lane mapping, supply and orientation before integration. Unconfirmed interfaces require engineering confirmation.
Check CN2 and, where present, CN3 in the selected pin definition. Check supply, ground, enable and dimming signals before connection.
These modules do not include an AD board. Panel interface is not a claim of ready-to-use HDMI / DP input or an included power supply.
Open Pin Definition in PDF ↗TECHNICAL DOCUMENTS
Documents follow the selected configuration.
SELECTED MODEL
Product Brief · Specifications + Drawing + Pin Definition
English product datasheet
| Model | Document | Revision | Date | PDF / Release status |
|---|---|---|---|---|
| YZ750MBU10H-V0 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ750MBU10H-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ750MBU15H-V0 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ750MBU15H-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ750MBU20H-V0 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ750MBU20H-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ750MBU25H-V0 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ750MBU25H-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ750MBU30H-V0 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ750MBU30H-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
Datasheet availability varies by configuration. Model-specific engineering images are available above.
ENGINEERING NOTES / FAQ
Customization options depend on your project requirements. Contact our team to discuss integration and delivery requirements.
This series contains 10 documented configurations. Choose a complete model from the comparison table; brightness, backlight, interface and temperature ratings apply to that model only.
The modules do not include an AD board or a front / rear IP rating. Touch, controller, enclosure and system power requirements need separate engineering confirmation.
Share the target brightness, interface, envelope, mounting and installation conditions. Our engineering team determines the feasible scope; a requested combination is not automatically an existing model.
Include the complete 75-inch YuanZhong model and datasheet revision. Entries with similar names have different operating-temperature rows; check the exact revision and drawing rather than relying on the suffix.
REQUEST A QUOTE
Selected model: YZ750MBU20H-V0
Send the application, expected ambient conditions, target quantity, controller requirements and mounting limits. Include the full 75-inch model and datasheet revision, with enclosure thermal constraints where available.
