Brightness & environment
Select from documented levels. Module brightness alone does not define finished outdoor performance.
SERIES PRODUCT VIEW SERIES GALLERY Outline / interface details ↓
HIGH BRIGHTNESS LCD MODULES / SERIES
86″ High Brightness LCD Module Series
A 86-inch LCD module series for bright-light display integration, with 10 documented configurations. Compare brightness, resolution, interface and mechanical requirements before selecting a model.
Selected Model YZ860MBU20-V1
- Brightness
- 2,000 nits
- Backlight
- DLED
- Resolution
- 3840 × 2160
- Panel Interface
- V-by-One
- Dimensions
- 1931.00 × 1101.00 × 53.50 mm
- Operating Temperature
- 0°C~50°C
Brightness: typical ±5%. Values above apply to the selected variant, not the entire series.

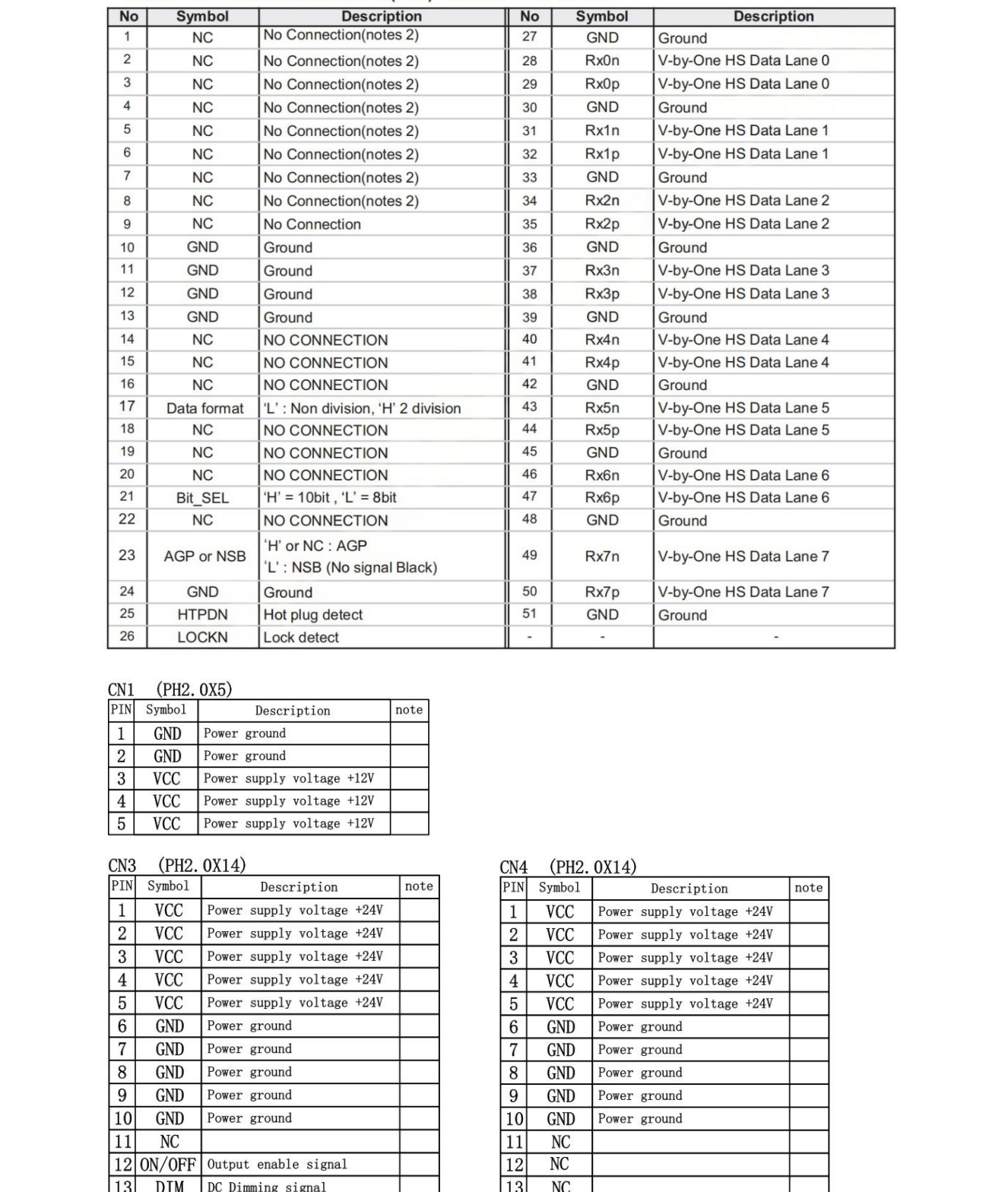

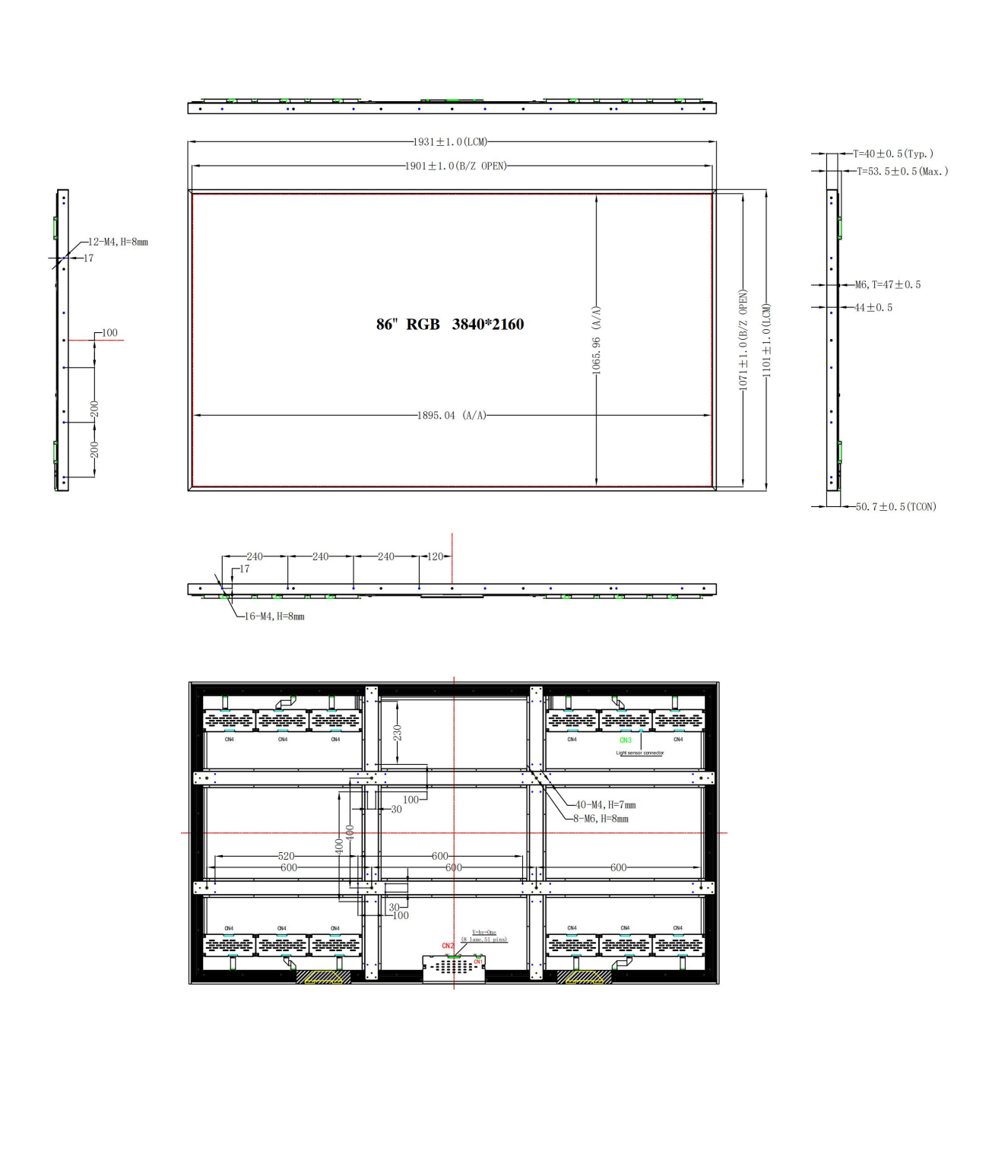

3840 × 2160 / V-by-One. Model-specific drawing and pin definition available below.
CHOOSE YOUR CONFIGURATION
Variant Comparison
10 documented configurations available.
Click a model to update the engineering view.
10 of 10 configurations
| YuanZhong Model | Brightness | Backlight | Resolution | Panel Interface | Dimensions | Datasheet |
|---|---|---|---|---|---|---|
| 1,000 nits | DLED | 3840 × 2160 | V-by-One | 1931.00 × 1101.00 × 53.50 mm | EN PDF ↗ | |
| 1,000 nits | DLED | 3840 × 2160 | V-by-One | 1931.00 × 1101.00 × 53.50 mm | EN PDF ↗ | |
| 1,500 nits | DLED | 3840 × 2160 | V-by-One | 1931.00 × 1101.00 × 53.50 mm | EN PDF ↗ | |
| 1,500 nits | DLED | 3840 × 2160 | V-by-One | 1931.00 × 1101.00 × 53.50 mm | EN PDF ↗ | |
| 2,000 nits | DLED | 3840 × 2160 | V-by-One | 1931.00 × 1101.00 × 53.50 mm | EN PDF ↗ | |
| 2,000 nits | DLED | 3840 × 2160 | V-by-One | 1931.00 × 1101.00 × 53.50 mm | EN PDF ↗ | |
| 2,500 nits | DLED | 3840 × 2160 | V-by-One | 1931.00 × 1101.00 × 53.50 mm | EN PDF ↗ | |
| 2,500 nits | DLED | 3840 × 2160 | V-by-One | 1931.00 × 1101.00 × 53.50 mm | EN PDF ↗ | |
| 3,000 nits | DLED | 3840 × 2160 | V-by-One | 1931.00 × 1101.00 × 53.50 mm | EN PDF ↗ | |
| 3,000 nits | DLED | 3840 × 2160 | V-by-One | 1931.00 × 1101.00 × 53.50 mm | EN PDF ↗ | |
| No configurations match these filters. | ||||||
Configuration availability and mechanical requirements depend on the selected model.
BEST FOR / HOW TO CHOOSE
Start with the installation.
Consider retail-window integration, commercial signage and industrial equipment where a 86-inch module fits. Final suitability depends on the enclosure, ambient light and thermal design.
Discuss your application →Interface & controller
Match V-by-One to the panel timing, lane mapping and controller.
Mechanical & thermal
Check outline, airflow and ambient temperature. Modules are not rated weatherproof finished displays.
MODEL-SPECIFIC DATA
Detailed Specifications
Selected YZ860MBU20-V1
YZ860MBU10-V11,000 nits / DLED / 3840 × 2160
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 86 inch | PDF p2 |
| Brightness | 1,000 nits | Typical ±5%; PDF p3 |
| Backlight Type | DLED | PDF p3 |
| Resolution | 3840 × 2160 | PDF p2 / p3 / drawing p4 |

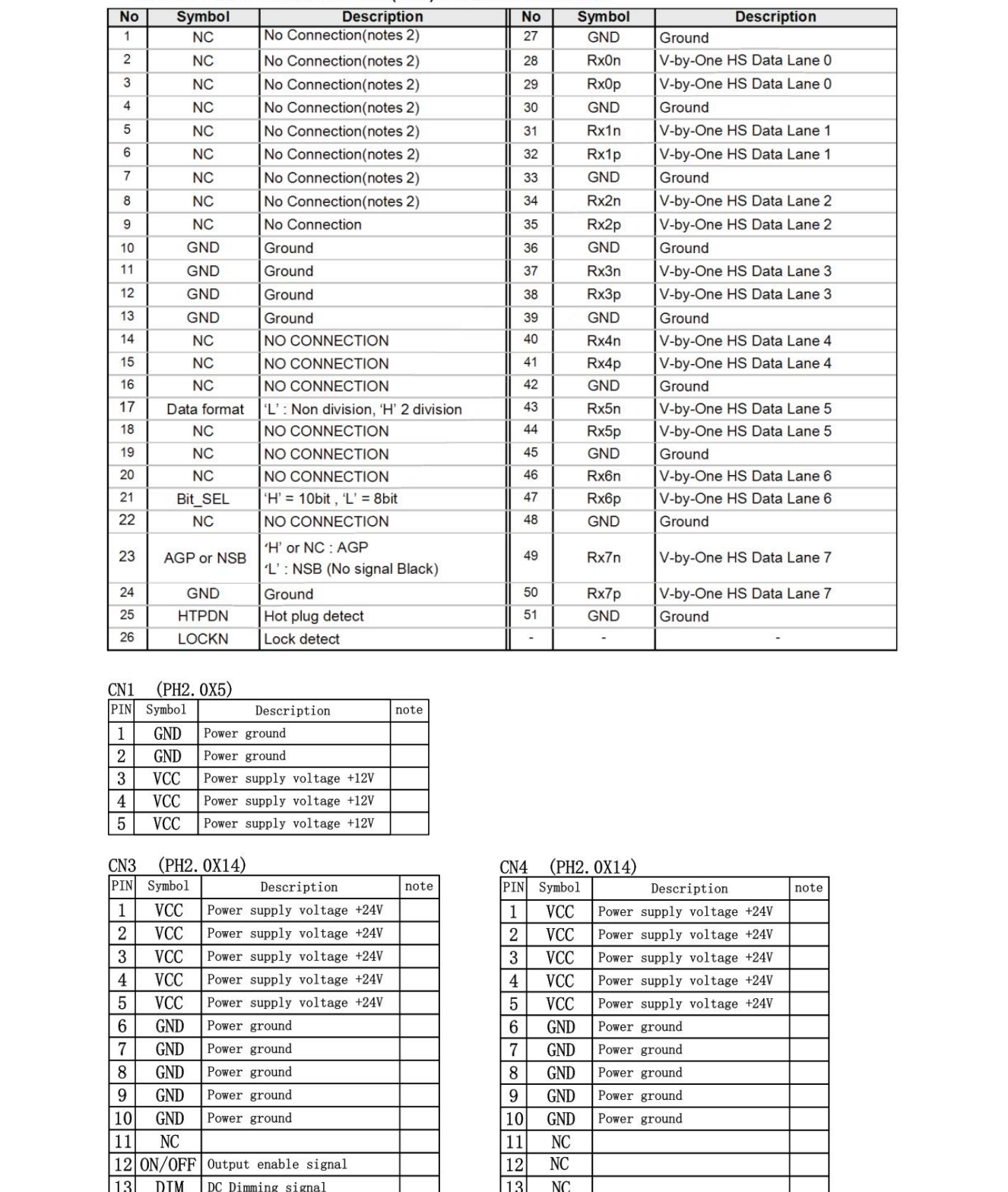

| Panel Interface | V-by-One | Model-specific PDF p5; confirm unresolved interface before integration |

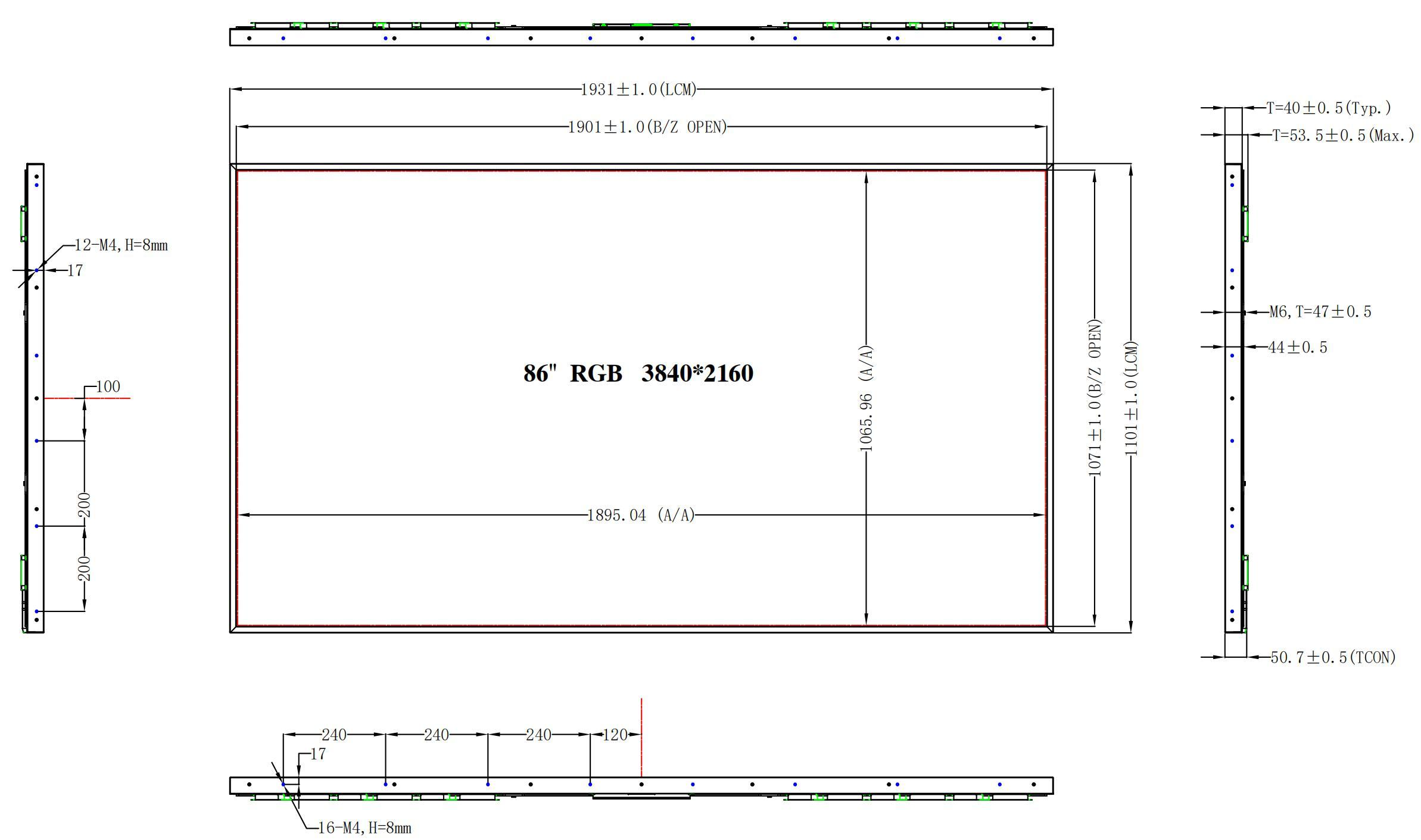

| Overall Dimensions | 1931.00 × 1101.00 × 53.50 mm | H × V × D; typical; PDF p3 |
| Active Area | 1895.04 × 1065.96 mm | H × V; PDF p3 |
| Display Colors | 10-bit(D) & 1.07 Billion colors | PDF p3 |
| Response Time | 8ms (G to G) (Typ.) | Typical; PDF p3 |
| Contrast / Color Gamut | 1,200 : 1 (Typ.)& 68% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 30% - 100% | PDF p3 |
| Operating Power | 540W (Typ.)±5% | Typical; PDF p3 |
| Weight | 42.5kg ±0.2 | PDF p3 |
| Operating Temperature | 0°C~50°C | Module specification; PDF p3 |
| Storage Temperature | -20°C~60°C | PDF p3 |
| Panel Platform | LC860EQY-FJA6 & 68°C (Surface) | PDF p3; panel surface temperature is not module operating temperature |
| AD Board | Not equipped | PDF p2; not a finished HDMI / DP monitor |
| IP Rating | None / None | PDF p3; system enclosure requires engineering review |
| Warranty | 24 months | User-approved warranty |
YZ860MBU10H-V11,000 nits / DLED / 3840 × 2160
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 86 inch | PDF p2 |
| Brightness | 1,000 nits | Typical ±5%; PDF p3 |
| Backlight Type | DLED | PDF p3 |
| Resolution | 3840 × 2160 | PDF p2 / p3 / drawing p4 |
| Panel Interface | V-by-One | Model-specific PDF p5; confirm unresolved interface before integration |
| Overall Dimensions | 1931.00 × 1101.00 × 53.50 mm | H × V × D; typical; PDF p3 |
| Active Area | 1895.04 × 1065.96 mm | H × V; PDF p3 |
| Display Colors | 10-bit(D) & 1.07 Billion colors | PDF p3 |
| Response Time | 8ms (G to G) (Typ.) | Typical; PDF p3 |
| Contrast / Color Gamut | 1,200 : 1(Typ.) & 68% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 30% -100% | PDF p3 |
| Operating Power | 540W (Typ.)±5% | Typical; PDF p3 |
| Weight | 42.5kg ±0.2 | PDF p3 |
| Operating Temperature | 0°C~50°C | Module specification; PDF p3 |
| Storage Temperature | -20°C~60°C | PDF p3 |
| Panel Platform | LD860EQY-SRA1 & 68°C (Surface) | PDF p3; panel surface temperature is not module operating temperature |
| AD Board | Not equipped | PDF p2; not a finished HDMI / DP monitor |
| IP Rating | None / None | PDF p3; system enclosure requires engineering review |
| Warranty | 24 months | User-approved warranty |
YZ860MBU15-V11,500 nits / DLED / 3840 × 2160
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 86 inch | PDF p2 |
| Brightness | 1,500 nits | Typical ±5%; PDF p3 |
| Backlight Type | DLED | PDF p3 |
| Resolution | 3840 × 2160 | PDF p2 / p3 / drawing p4 |
| Panel Interface | V-by-One | Model-specific PDF p5; confirm unresolved interface before integration |
| Overall Dimensions | 1931.00 × 1101.00 × 53.50 mm | H × V × D; typical; PDF p3 |
| Active Area | 1895.04 × 1065.96 mm | H × V; PDF p3 |
| Display Colors | 10-bit(D) & 1.07 Billion colors | PDF p3 |
| Response Time | 8ms (G to G) (Typ.) | Typical; PDF p3 |
| Contrast / Color Gamut | 1,200 : 1 (Typ.)& 68% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 30% - 100% | PDF p3 |
| Operating Power | 720W (Typ.)±5% | Typical; PDF p3 |
| Weight | 42.5kg ±0.2 | PDF p3 |
| Operating Temperature | 0°C~50°C | Module specification; PDF p3 |
| Storage Temperature | -20°C~60°C | PDF p3 |
| Panel Platform | LC860EQY-FJA6 & 68°C (Surface) | PDF p3; panel surface temperature is not module operating temperature |
| AD Board | Not equipped | PDF p2; not a finished HDMI / DP monitor |
| IP Rating | None / None | PDF p3; system enclosure requires engineering review |
| Warranty | 24 months | User-approved warranty |
YZ860MBU15H-V11,500 nits / DLED / 3840 × 2160
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 86 inch | PDF p2 |
| Brightness | 1,500 nits | Typical ±5%; PDF p3 |
| Backlight Type | DLED | PDF p3 |
| Resolution | 3840 × 2160 | PDF p2 / p3 / drawing p4 |
| Panel Interface | V-by-One | Model-specific PDF p5; confirm unresolved interface before integration |
| Overall Dimensions | 1931.00 × 1101.00 × 53.50 mm | H × V × D; typical; PDF p3 |
| Active Area | 1895.04 × 1065.96 mm | H × V; PDF p3 |
| Display Colors | 10-bit(D) & 1.07 Billion colors | PDF p3 |
| Response Time | 8ms (G to G) (Typ.) | Typical; PDF p3 |
| Contrast / Color Gamut | 1,200 : 1(Typ.) & 68% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 30% -100% | PDF p3 |
| Operating Power | 720W (Typ.)±5% | Typical; PDF p3 |
| Weight | 42.5kg ±0.2 | PDF p3 |
| Operating Temperature | 0°C~50°C | Module specification; PDF p3 |
| Storage Temperature | -20°C~60°C | PDF p3 |
| Panel Platform | LD860EQY-SRA1 & 68°C (Surface) | PDF p3; panel surface temperature is not module operating temperature |
| AD Board | Not equipped | PDF p2; not a finished HDMI / DP monitor |
| IP Rating | None / None | PDF p3; system enclosure requires engineering review |
| Warranty | 24 months | User-approved warranty |
YZ860MBU20-V12,000 nits / DLED / 3840 × 2160
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 86 inch | PDF p2 |
| Brightness | 2,000 nits | Typical ±5%; PDF p3 |
| Backlight Type | DLED | PDF p3 |
| Resolution | 3840 × 2160 | PDF p2 / p3 / drawing p4 |
| Panel Interface | V-by-One | Model-specific PDF p5; confirm unresolved interface before integration |
| Overall Dimensions | 1931.00 × 1101.00 × 53.50 mm | H × V × D; typical; PDF p3 |
| Active Area | 1895.04 × 1065.96 mm | H × V; PDF p3 |
| Display Colors | 10-bit(D) & 1.07 Billion colors | PDF p3 |
| Response Time | 8ms (G to G) (Typ.) | Typical; PDF p3 |
| Contrast / Color Gamut | 1,200 : 1 (Typ.)& 68% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 30% - 100% | PDF p3 |
| Operating Power | 890W (Typ.)±5% | Typical; PDF p3 |
| Weight | 42.5kg ±0.2 | PDF p3 |
| Operating Temperature | 0°C~50°C | Module specification; PDF p3 |
| Storage Temperature | -20°C~60°C | PDF p3 |
| Panel Platform | LC860EQY-FJA6 & 68°C (Surface) | PDF p3; panel surface temperature is not module operating temperature |
| AD Board | Not equipped | PDF p2; not a finished HDMI / DP monitor |
| IP Rating | None / None | PDF p3; system enclosure requires engineering review |
| Warranty | 24 months | User-approved warranty |
YZ860MBU20H-V12,000 nits / DLED / 3840 × 2160
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 86 inch | PDF p2 |
| Brightness | 2,000 nits | Typical ±5%; PDF p3 |
| Backlight Type | DLED | PDF p3 |
| Resolution | 3840 × 2160 | PDF p2 / p3 / drawing p4 |
| Panel Interface | V-by-One | Model-specific PDF p5; confirm unresolved interface before integration |
| Overall Dimensions | 1931.00 × 1101.00 × 53.50 mm | H × V × D; typical; PDF p3 |
| Active Area | 1895.04 × 1065.96 mm | H × V; PDF p3 |
| Display Colors | 10-bit(D) & 1.07 Billion colors | PDF p3 |
| Response Time | 8ms (G to G) (Typ.) | Typical; PDF p3 |
| Contrast / Color Gamut | 1,200 : 1(Typ.) & 68% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 30% -100% | PDF p3 |
| Operating Power | 890W (Typ.)±5% | Typical; PDF p3 |
| Weight | 42.5kg ±0.2 | PDF p3 |
| Operating Temperature | 0°C~50°C | Module specification; PDF p3 |
| Storage Temperature | -20°C~60°C | PDF p3 |
| Panel Platform | LD860EQY-SRA1 & 68°C (Surface) | PDF p3; panel surface temperature is not module operating temperature |
| AD Board | Not equipped | PDF p2; not a finished HDMI / DP monitor |
| IP Rating | None / None | PDF p3; system enclosure requires engineering review |
| Warranty | 24 months | User-approved warranty |
YZ860MBU25-V12,500 nits / DLED / 3840 × 2160
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 86 inch | PDF p2 |
| Brightness | 2,500 nits | Typical ±5%; PDF p3 |
| Backlight Type | DLED | PDF p3 |
| Resolution | 3840 × 2160 | PDF p2 / p3 / drawing p4 |
| Panel Interface | V-by-One | Model-specific PDF p5; confirm unresolved interface before integration |
| Overall Dimensions | 1931.00 × 1101.00 × 53.50 mm | H × V × D; typical; PDF p3 |
| Active Area | 1895.04 × 1065.96 mm | H × V; PDF p3 |
| Display Colors | 10-bit(D) & 1.07 Billion colors | PDF p3 |
| Response Time | 8ms (G to G) (Typ.) | Typical; PDF p3 |
| Contrast / Color Gamut | 1,200 : 1 (Typ.)& 68% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 30% - 100% | PDF p3 |
| Operating Power | 1130W (Typ.) ±5% | Typical; PDF p3 |
| Weight | 42.5kg ±0.2 | PDF p3 |
| Operating Temperature | 0°C~50°C | Module specification; PDF p3 |
| Storage Temperature | -20°C~60°C | PDF p3 |
| Panel Platform | LC860EQY-FJA6 & 68°C (Surface) | PDF p3; panel surface temperature is not module operating temperature |
| AD Board | Not equipped | PDF p2; not a finished HDMI / DP monitor |
| IP Rating | None / None | PDF p3; system enclosure requires engineering review |
| Warranty | 24 months | User-approved warranty |
YZ860MBU25H-V12,500 nits / DLED / 3840 × 2160
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 86 inch | PDF p2 |
| Brightness | 2,500 nits | Typical ±5%; PDF p3 |
| Backlight Type | DLED | PDF p3 |
| Resolution | 3840 × 2160 | PDF p2 / p3 / drawing p4 |
| Panel Interface | V-by-One | Model-specific PDF p5; confirm unresolved interface before integration |
| Overall Dimensions | 1931.00 × 1101.00 × 53.50 mm | H × V × D; typical; PDF p3 |
| Active Area | 1895.04 × 1065.96 mm | H × V; PDF p3 |
| Display Colors | 10-bit(D) & 1.07 Billion colors | PDF p3 |
| Response Time | 8ms (G to G) (Typ.) | Typical; PDF p3 |
| Contrast / Color Gamut | 1,200 : 1(Typ.) & 68% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 30% -100% | PDF p3 |
| Operating Power | 1130W (Typ.) ±5% | Typical; PDF p3 |
| Weight | 42.5kg ±0.2 | PDF p3 |
| Operating Temperature | 0°C~50°C | Module specification; PDF p3 |
| Storage Temperature | -20°C~60°C | PDF p3 |
| Panel Platform | LD860EQY-SRA1 & 68°C (Surface) | PDF p3; panel surface temperature is not module operating temperature |
| AD Board | Not equipped | PDF p2; not a finished HDMI / DP monitor |
| IP Rating | None / None | PDF p3; system enclosure requires engineering review |
| Warranty | 24 months | User-approved warranty |
YZ860MBU30-V13,000 nits / DLED / 3840 × 2160
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 86 inch | PDF p2 |
| Brightness | 3,000 nits | Typical ±5%; PDF p3 |
| Backlight Type | DLED | PDF p3 |
| Resolution | 3840 × 2160 | PDF p2 / p3 / drawing p4 |
| Panel Interface | V-by-One | Model-specific PDF p5; confirm unresolved interface before integration |
| Overall Dimensions | 1931.00 × 1101.00 × 53.50 mm | H × V × D; typical; PDF p3 |
| Active Area | 1895.04 × 1065.96 mm | H × V; PDF p3 |
| Display Colors | 10-bit(D) & 1.07 Billion colors | PDF p3 |
| Response Time | 8ms (G to G) (Typ.) | Typical; PDF p3 |
| Contrast / Color Gamut | 1,200 : 1 (Typ.)& 68% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 30% - 100% | PDF p3 |
| Operating Power | 1330W (Typ.) ±5% | Typical; PDF p3 |
| Weight | 42.5kg ±0.2 | PDF p3 |
| Operating Temperature | 0°C~50°C | Module specification; PDF p3 |
| Storage Temperature | -20°C~60°C | PDF p3 |
| Panel Platform | LC860EQY-FJA6 & 68°C (Surface) | PDF p3; panel surface temperature is not module operating temperature |
| AD Board | Not equipped | PDF p2; not a finished HDMI / DP monitor |
| IP Rating | None / None | PDF p3; system enclosure requires engineering review |
| Warranty | 24 months | User-approved warranty |
YZ860MBU30H-V13,000 nits / DLED / 3840 × 2160
| Parameter | Specification | Conditions / notes |
|---|---|---|
| Display size | 86 inch | PDF p2 |
| Brightness | 3,000 nits | Typical ±5%; PDF p3 |
| Backlight Type | DLED | PDF p3 |
| Resolution | 3840 × 2160 | PDF p2 / p3 / drawing p4 |
| Panel Interface | V-by-One | Model-specific PDF p5; confirm unresolved interface before integration |
| Overall Dimensions | 1931.00 × 1101.00 × 53.50 mm | H × V × D; typical; PDF p3 |
| Active Area | 1895.04 × 1065.96 mm | H × V; PDF p3 |
| Display Colors | 10-bit(D) & 1.07 Billion colors | PDF p3 |
| Response Time | 8ms (G to G) (Typ.) | Typical; PDF p3 |
| Contrast / Color Gamut | 1,200 : 1(Typ.) & 68% (NTSC) (Est.) | Preserve typical / estimated qualifiers; PDF p3 |
| Refresh Rate | 60Hz (Best) | PDF p3 |
| Dimming | Manual / Automatic & 30% -100% | PDF p3 |
| Operating Power | 1330W (Typ.) ±5% | Typical; PDF p3 |
| Weight | 42.5kg ±0.2 | PDF p3 |
| Operating Temperature | 0°C~50°C | Module specification; PDF p3 |
| Storage Temperature | -20°C~60°C | PDF p3 |
| Panel Platform | LD860EQY-SRA1 & 68°C (Surface) | PDF p3; panel surface temperature is not module operating temperature |
| AD Board | Not equipped | PDF p2; not a finished HDMI / DP monitor |
| IP Rating | None / None | PDF p3; system enclosure requires engineering review |
| Warranty | 24 months | User-approved warranty |
FIT BEFORE INTEGRATION
Mechanical & Mounting
YZ860MBU20-V1
Verify the complete outline.
- Overall Dimensions · H × V × D
- 1931.00 × 1101.00 × 53.50 mm
- Active Area · H × V
- 1895.04 × 1065.96 mm
- Nominal Thickness · typical
- 53.50 mm
Mounting notes
Use the selected model’s hole pattern, connector positions and clearance. Check mounting and thermal conditions against the original drawing before integration.
Open Drawing Image ↗ Download Drawing in PDF ↓Drawing image available. Contact our team regarding CAD file availability.
CONNECTOR / PIN DEFINITION
Panel & Backlight Integration
Selected interface V-by-One
V-by-One panel interface
Use the selected model’s original panel connector sheet. Verify the interface, lane mapping, supply and orientation before integration. Unconfirmed interfaces require engineering confirmation.
Backlight connector
Check CN2 and, where present, CN3 in the selected pin definition. Check supply, ground, enable and dimming signals before connection.
Controller / integration notes
These modules do not include an AD board. Panel interface is not a claim of ready-to-use HDMI / DP input or an included power supply.
Open Pin Definition in PDF ↗TECHNICAL DOCUMENTS
Downloads by Model
Documents follow the selected configuration.
SELECTED MODEL
YZ860MBU20-V1
Product Brief · Specifications + Drawing + Pin Definition
- Revision
- 1.0
- Date
- 2026-01-01
Download EN PDF ↓
English product datasheet
View documents for all configurations
| Model | Document | Revision | Date | PDF / Release status |
|---|---|---|---|---|
| YZ860MBU10-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ860MBU10H-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ860MBU15-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ860MBU15H-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ860MBU20-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ860MBU20H-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ860MBU25-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ860MBU25H-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ860MBU30-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
| YZ860MBU30H-V1 | Product Brief · Specifications + Drawing + Pin Definition | 1.0 | 2026-01-01 | EN PDF ↗ |
Datasheet availability varies by configuration. Model-specific engineering images are available above.
ENGINEERING NOTES / FAQ
Clear answers before RFQ.
Customization options depend on your project requirements. Contact our team to discuss integration and delivery requirements.
Which configurations are available in this series?
This series contains 10 documented configurations. Choose a complete model from the comparison table; brightness, backlight, interface and temperature ratings apply to that model only.
Does the module include HDMI, touch or weather protection?
The modules do not include an AD board or a front / rear IP rating. Touch, controller, enclosure and system power requirements need separate engineering confirmation.
Can I request customization?
Share the target brightness, interface, envelope, mounting and installation conditions. Our engineering team determines the feasible scope; a requested combination is not automatically an existing model.
Which model should I quote?
Use the complete YuanZhong model from Available Configurations. Include the selected PDF revision, drawing constraints and operating environment with your RFQ.
REQUEST A QUOTE
Specify the display. Define the project.
Selected model: YZ860MBU20-V1
Send your installation conditions, controller needs and mechanical requirements.
